CV10R-UEMEXW (1983)

Toyota Camry

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )CV10 ; (8308- )CV11..RHD

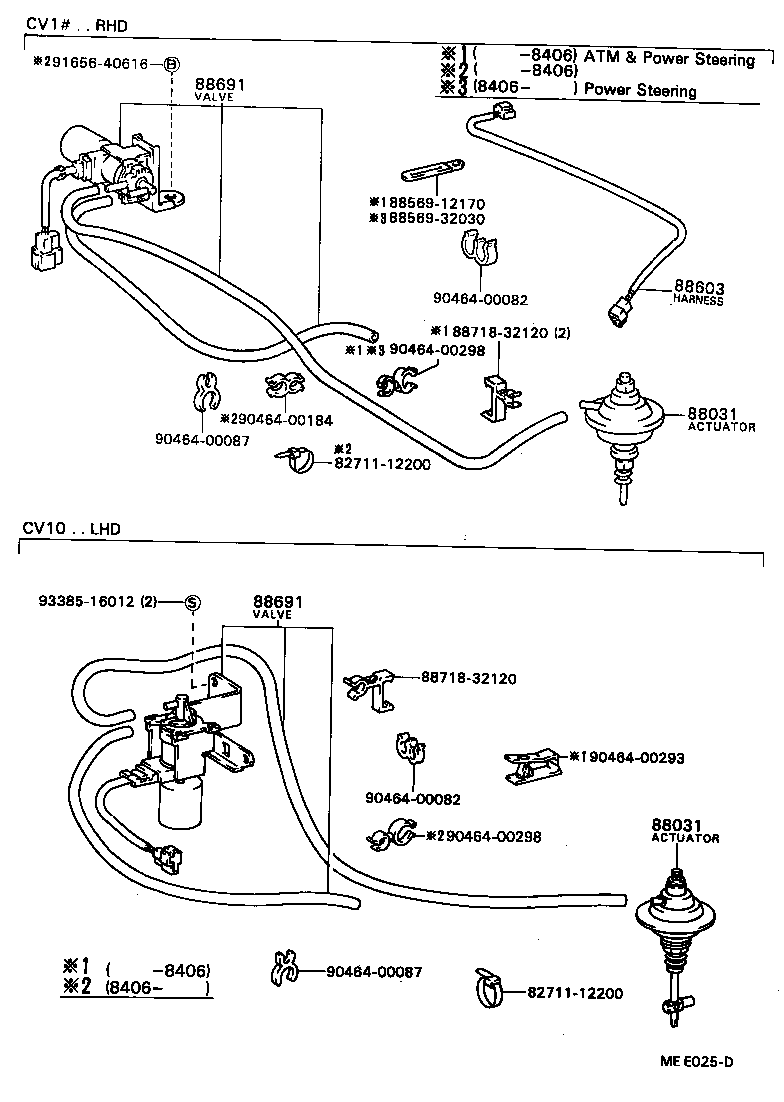

Click highlighted areas on diagram

diagram 8271112200 8271112200 88031 88031 8856912170 8856932030 88603 88691 88691 8871832120 8871832120 9046400082 9046400082 9046400087 9046400087 9046400184 9046400293 9046400298 9046400298 9165640616 9338516012
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-12120

CV10

 1
88031 - ACTUATOR SET, IDLE-UP
88031-12120

CV10

 1
88603 - WIRE, IDLE UP DEVICE
88605-32020

CV10,SV1#..RHD

 1
Common parts
82711-12200
88569-12170
88569-32030
88718-32120
90464-00082
90464-00087
90464-00184
90464-00293
90464-00298
91656-40616
93385-16012
