CV10R-UEMEXW (1983)

Toyota Camry

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )1CTL,2CTL

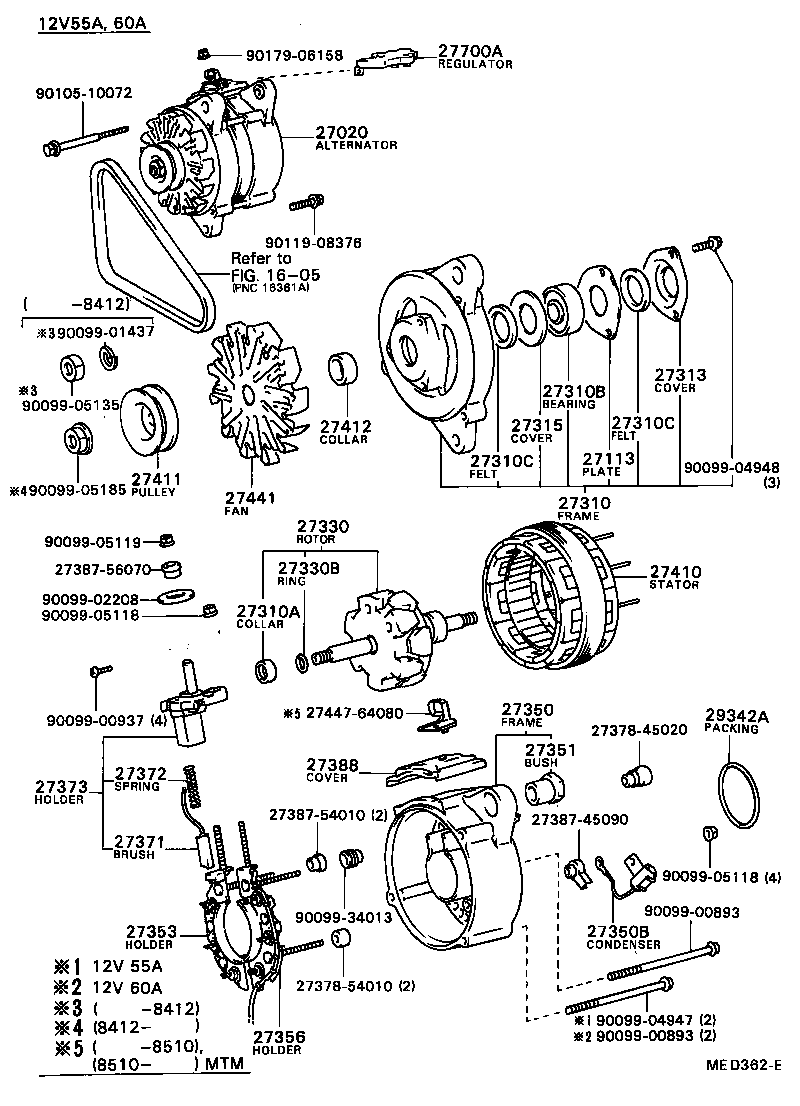

Click highlighted areas on diagram

diagram 1605 27020 27113 27310 27310A 27310B 27310C 27310C 27313 27315 27330 27330B 27350 27350B 27351 27353 27356 27371 27372 27373 2737845020 2737854010 2738745090 2738754010 2738756070 27388 27410 27411 27412 27441 2744764080 27700A 29342A 9009900893 9009900893 9009900937 9009901437 9009902208 9009904947 9009904948 9009905118 9009905118 9009905119 9009905135 9009905185 9009934013 9010510072 9011908376 9017906158
Part # Description Qty Price
27330 - ROTOR ASSY, ALTERNATOR
27330-56190

1CTL..CV10..RHD

12V 55A

 1
Common parts
27378-45020
27378-54010
27387-45090
27387-54010
27387-56070
27447-64080
90099-00893
90099-00937
90099-01437
90099-02208
90099-04947
90099-04948
90099-05118
90099-05119
90099-05135
90099-05185
90099-34013
90105-10072
90119-08376
90179-06158
Linked diagrams
1605
