CV10L-UEMNXW (1983)

Toyota Camry

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )1CTL,2CTL

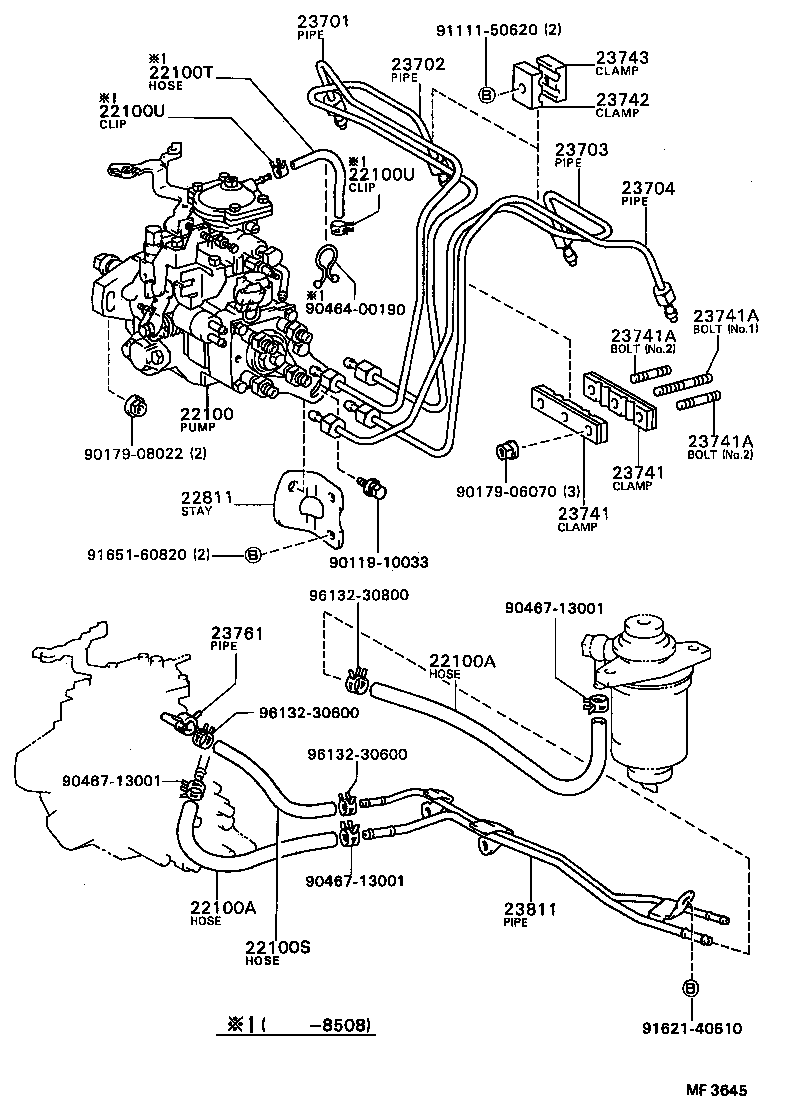

Click highlighted areas on diagram

diagram 22100 22100A 22100A 22100S 22100T 22100U 22100U 22811 23701 23702 23703 23704 23741 23741 23741A 23741A 23741A 23742 23743 23761 23811 9011910033 9017906070 9017908022 9046400190 9046713001 9046713001 9046713001 9111150620 9162140610 9165160820 9613230600 9613230600 9613230800
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-64380

1CTL..CV10..5F

W/TACHO METER PICK-UP

 1
22100-64360

1CTL..CV10..5F

 1
22100T - HOSE(FOR INTAKE MANIFOLD TO INJECTION PUMP)
90445-08237

1CTL..CV10

 1
22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP)
90467-07016

1CTL..CV10

 2
22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP)
90467-07016

1CTL..CV10

 2
Common parts
90119-10033
90179-06070
90179-08022
90464-00190
90467-13001
91111-50620
91621-40610
91651-60820
96132-30600
96132-30800
