CV10L-UEMEXW (1983)

Toyota Camry

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

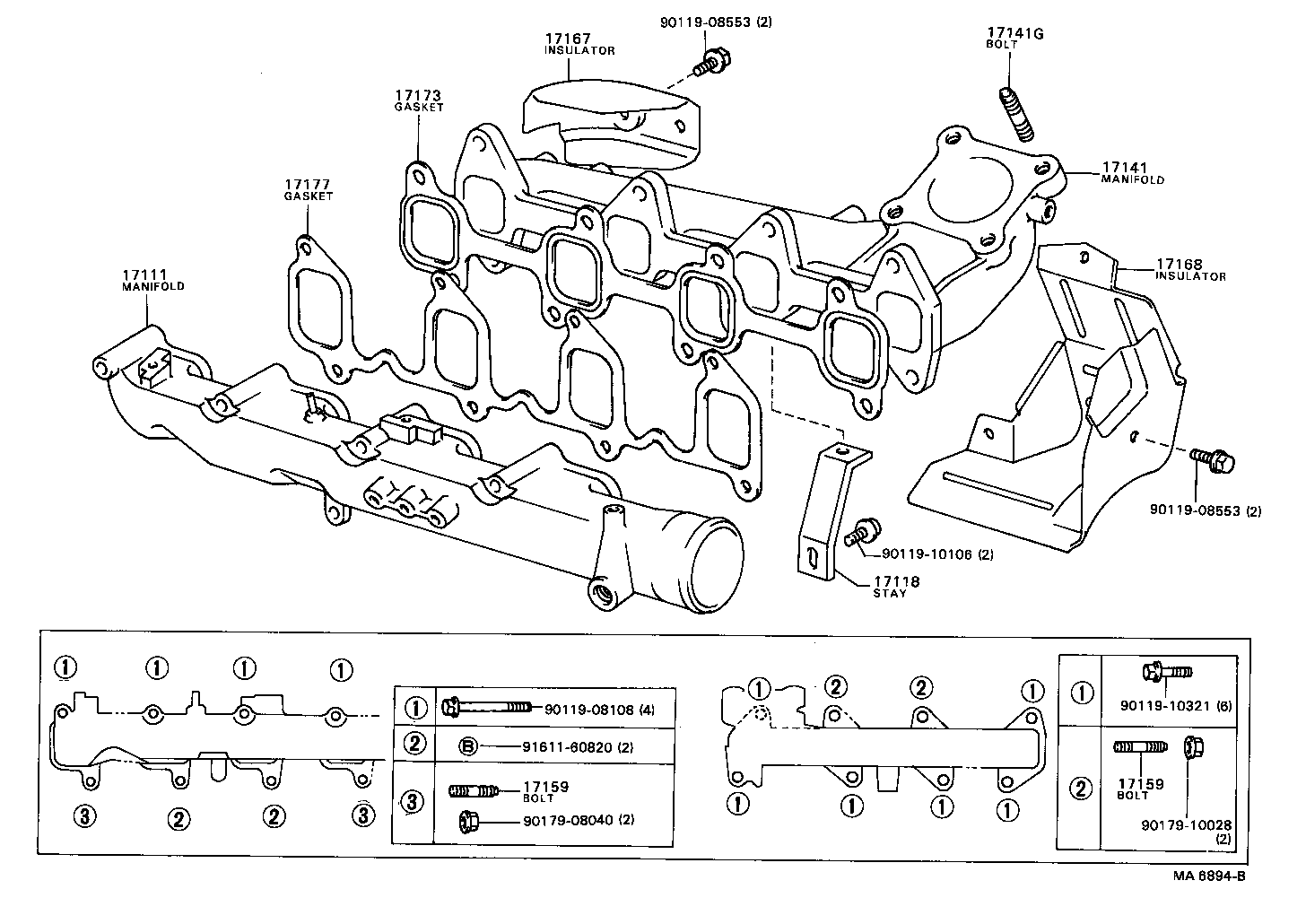

(8308- )1CTL,2CTL

Click highlighted areas on diagram

diagram 17111 17118 17141 17141G 17159 17159 17167 17168 17173 17177 9011908108 9011908553 9011908553 9011910106 9011910321 9017908040 9017910028 9161160820
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-64030

1CTL..CV10

 1
17141 - MANIFOLD, EXHAUST
17141-64030

1CTL..CV10

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-64020

1CTL..CV10

 1
Common parts
90119-08108
90119-08553
90119-10106
90119-10321
90179-08040
90179-10028
91611-60820

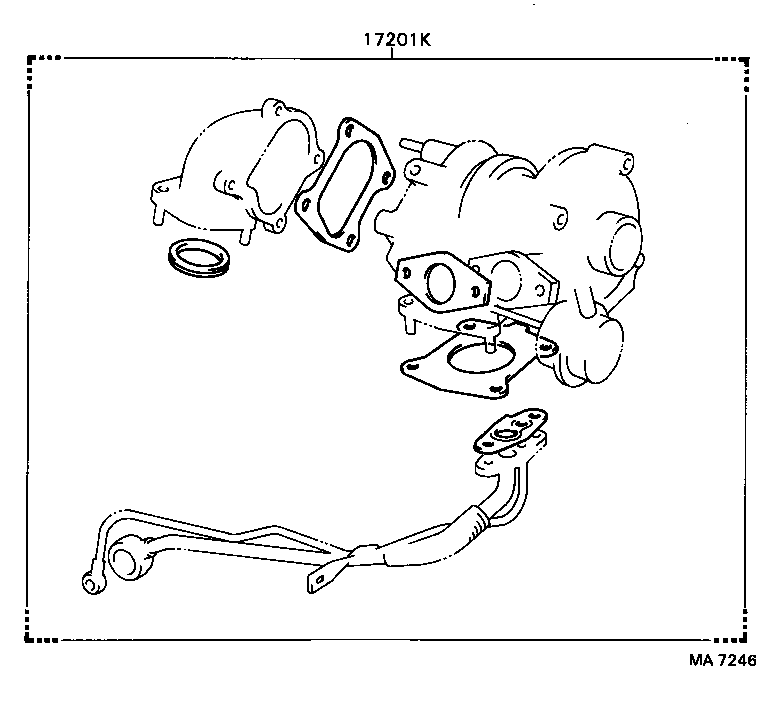

(8308- )1CTL,2CTL

Click highlighted areas on diagram

diagram 17201K
Part # Description Qty Price
17201K - GASKET KIT, TURBOCHARGER
04175-64010

1CTL..CV10

 1

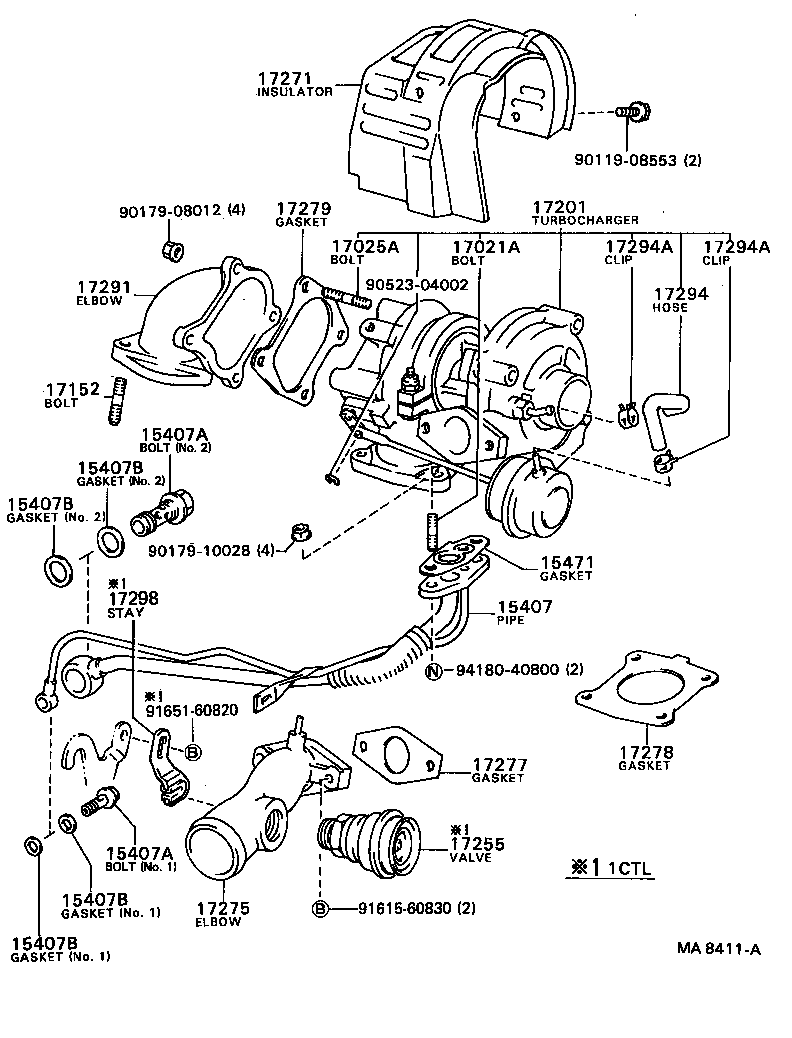

(8308- )1CTL,2CTL

Click highlighted areas on diagram

diagram 15407 15407A 15407A 15407B 15407B 15407B 15407B 15471 17021A 17025A 17152 17201 17255 17271 17275 17277 17278 17279 17291 17294 17294A 17294A 17298 9011908553 9017908012 9017910028 9052304002 9161560830 9165160820 9418040800
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-64010

1CTL..CV10

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-27001

1CTL..CV10

NO.2

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-27001

1CTL..CV10

NO.2

 1
17025A - BOLT, STUD(FOR TURBINE HOUSING)
90116-08154

1CTL..CV10

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

1CTL,2CTL..CV1#

 3
17201 - TURBOCHARGER SUB-ASSY
17201-64010

1CTL..CV10

 1
17255 - VALVE, INTAKE RELIEF
17255-64010

1CTL..CV10

 1
17275 - ELBOW, COMPRESSOR OUTLET
17275-64010

1CTL..CV10

 1
17275-64020

1CTL..CV10

 1
17298 - STAY, COMPRESSOR ELBOW
17298-64010

1CTL..CV10

 1
Common parts
90119-08553
90179-08012
90179-10028
90523-04002
91615-60830
91651-60820
94180-40800
