ASV50L-CETSKV (2015)

Toyota Camry

Production Apr 2015 - Jun 2017
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1504- )

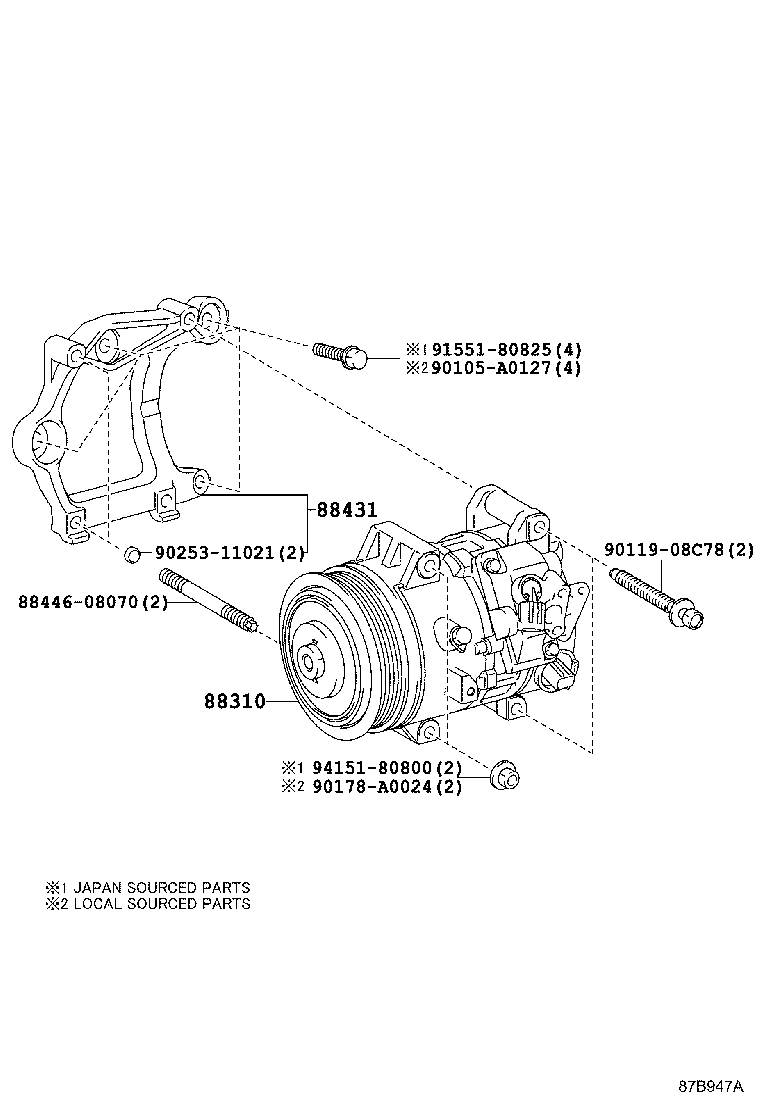

Click highlighted areas on diagram

diagram 88310 88431 8844608070 90105A0127 9011908C78 90178A0024 9025311021 9155180825 9415180800
Part # Description Qty Price
88310 - COMPRESSOR ASSY, W/PULLEY
88310-0R014

ASV50

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
12502-36010

ASV50

(J)

 1
12502-0V040

ASV50

(L)

 1
Common parts
88446-08070
90105-A0127
90119-08C78
90178-A0024
90253-11021
91551-80825
94151-80800
