ASV50L-CETSKV (2015)
Toyota Camry
Production
Apr 2015
-
Jun 2017
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(1504- )
Click highlighted areas on diagram
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90069-08007 | ||||
| 90069-08009 | ||||
| 90069-08011 | ||||

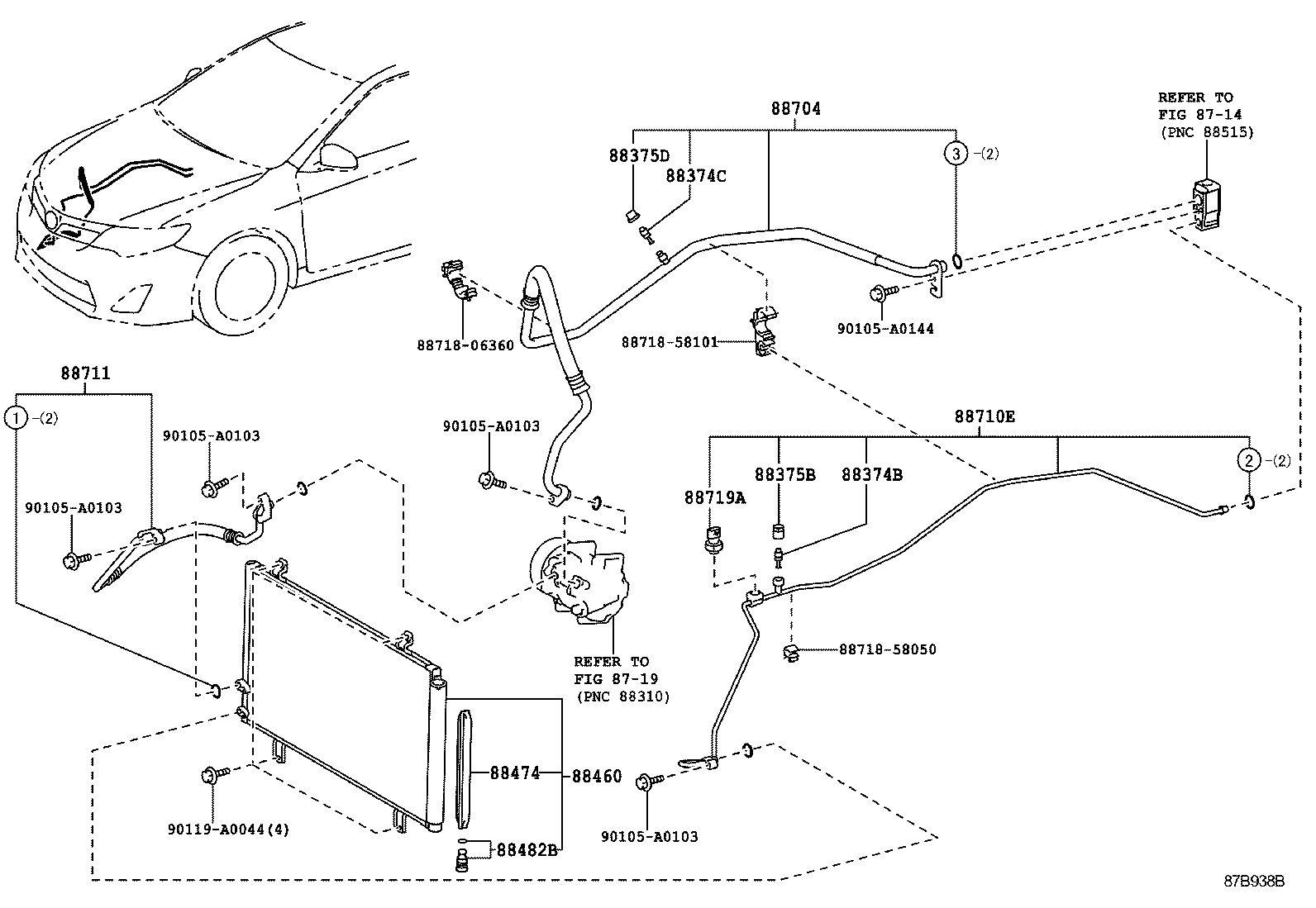

ILLUST NO. 1 OF 2(1504- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ASV50 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
ASV50 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-02060 |
ASV50 |
1 | ||
| 88375-0E020 |
ASV50 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-0E030 |
ASV50 |
1 | ||
| 88375-02070 |
ASV50 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-06230 |
ASV50 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
ASV50 |
1 | ||
| 88482B - CAP, COOLER NO.1 | ||||
| 88482-08010 |
ASV50 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-06440 |
ASV50 |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-06330 |
ASV50 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-06430 |
ASV50 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
ASV50 |
1 | ||
| Common parts | ||||
| 88718-06360 | ||||
| 88718-58050 | ||||
| 88718-58101 | ||||
| 90105-A0103 | ||||
| 90105-A0144 | ||||
| 90119-A0044 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
