ASV50L-CETSKV (2015)

Toyota Camry

Production Apr 2015 - Jun 2017
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1504- )

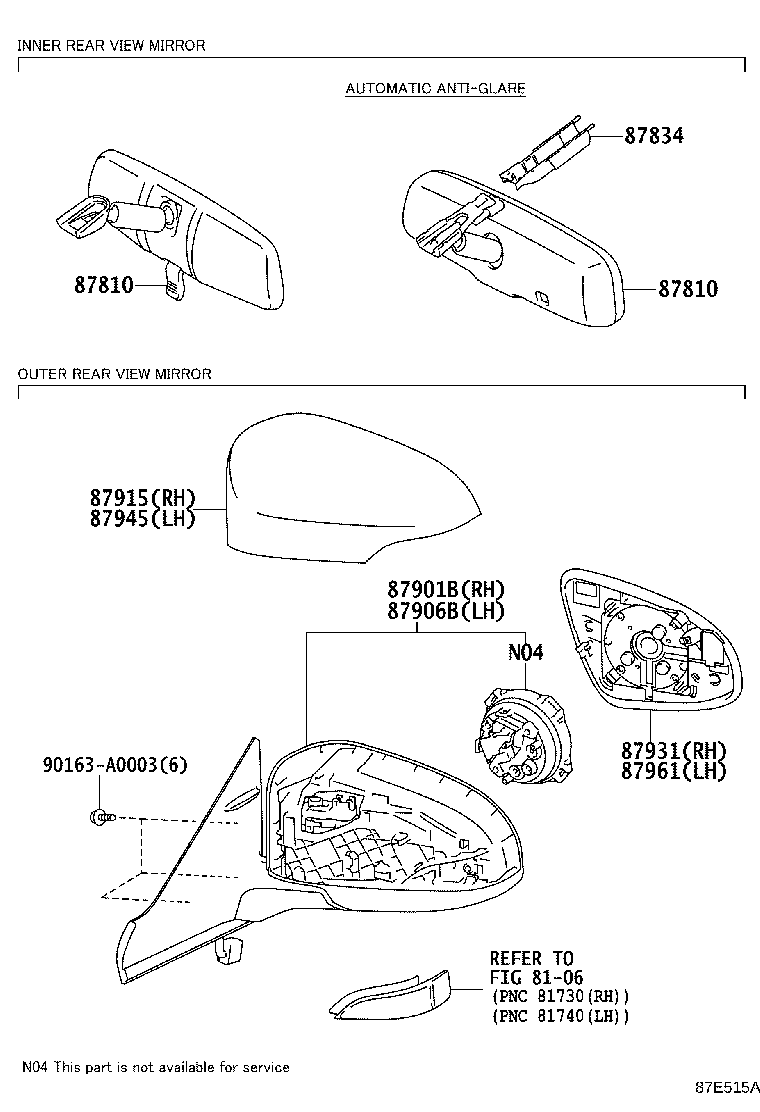

Click highlighted areas on diagram

diagram 8106 87810 87810 87834 87901B 87906B 87915 87931 87945 87961 90163A0003
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-06180

ASV50

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPASS

 1
87810-06080

ASV50

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-06180

ASV50

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPASS

 1
87810-06080

ASV50

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87818-AC010

ASV50

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPASS

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87901-06070

ASV50

NO PAINT REQ.

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87906-06070

ASV50

NO PAINT REQ.

 1
87915 - COVER, OUTER MIRROR, RH
87915-06110C0

ASV50

ATTITUDE BLACK MC.,218

 1
87915-06110J1

ASV50

DK.BLUE M.M.,8W7

 1
87915-06110A0

ASV50

SUPER WHITE 2,040

 1
87915-06110A1

ASV50

WHITE PEARL CS.,070

 1
87915-06110B0

ASV50

GRAY M.M.,1H1

 1
87915-06110B1

ASV50

DK. STEEL MC.,1H2

 1
87915-06110B2

ASV50

SILVER ME.,1J9

 1
87915-06110D0

ASV50

RED MC.,3T3

 1
87915-06110F0

ASV50

LT.YELLOW M.M.,5B2

 1
87915-06110J2

ASV50

BLUE ME.,8T7

 1
87931 - OUTER MIRROR, RH
87902-06030

ASV50

 1
87945 - COVER, OUTER MIRROR, LH
87945-06110J1

ASV50

DK.BLUE M.M.,8W7

 1
87945-06110B0

ASV50

GRAY M.M.,1H1

 1
87945-06110A0

ASV50

SUPER WHITE 2,040

 1
87945-06110B2

ASV50

SILVER ME.,1J9

 1
87945-06110F0

ASV50

LT.YELLOW M.M.,5B2

 1
87945-06110B1

ASV50

DK. STEEL MC.,1H2

 1
87945-06110J2

ASV50

BLUE ME.,8T7

 1
87945-06110A1

ASV50

WHITE PEARL CS.,070

 1
87945-06110D0

ASV50

RED MC.,3T3

 1
87945-06110C0

ASV50

ATTITUDE BLACK MC.,218

 1
87961 - MIRROR OUTER, LH
87907-06030

ASV50

 1
Common parts
90163-A0003
Linked diagrams
8106
