Toyota Camry ASV50 NAVIGATION & FRONT MONITOR DISPLAY

Part #	Description	Period	Qty
86120L - RECEIVER ASSY, NAVIGATION
86804-06120	ASV50 PANASONIC,AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST)	04/2015 - 12/2999	1
86120P - KNOB, NAVIGATION RECEIVER SWITCH
86128-06100	ASV50 AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST)	04/2015 - 12/2999	2
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-06240	ASV50 PIONEER,ID=P10720	04/2015 - 06/2016	1
86140-06760	ASV50 PIONEER,ID=P11304	06/2016 - 12/2999	1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
86128-06110	ASV50	04/2015 - 12/2999	2
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-06210	ASV50	04/2015 - 12/2999	1
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-06210	ASV50	04/2015 - 12/2999	1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-06210	ASV50	04/2015 - 12/2999	1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-06210	ASV50	04/2015 - 12/2999	1
86271 - DISC, DISC PLAYER
86271-06041	ASV50 AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST),MICRO SD CARD	04/2016 - 08/2016	1
86271-06040	ASV50 AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST),MICRO SD CARD	04/2015 - 03/2016	1
86860 - ANTENNA ASSY, NAVIGATION
86860-06080	ASV50 AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST)	04/2015 - 12/2999	1
Common parts
90080-15073
90080-15080
90080-16092
90119-A0160

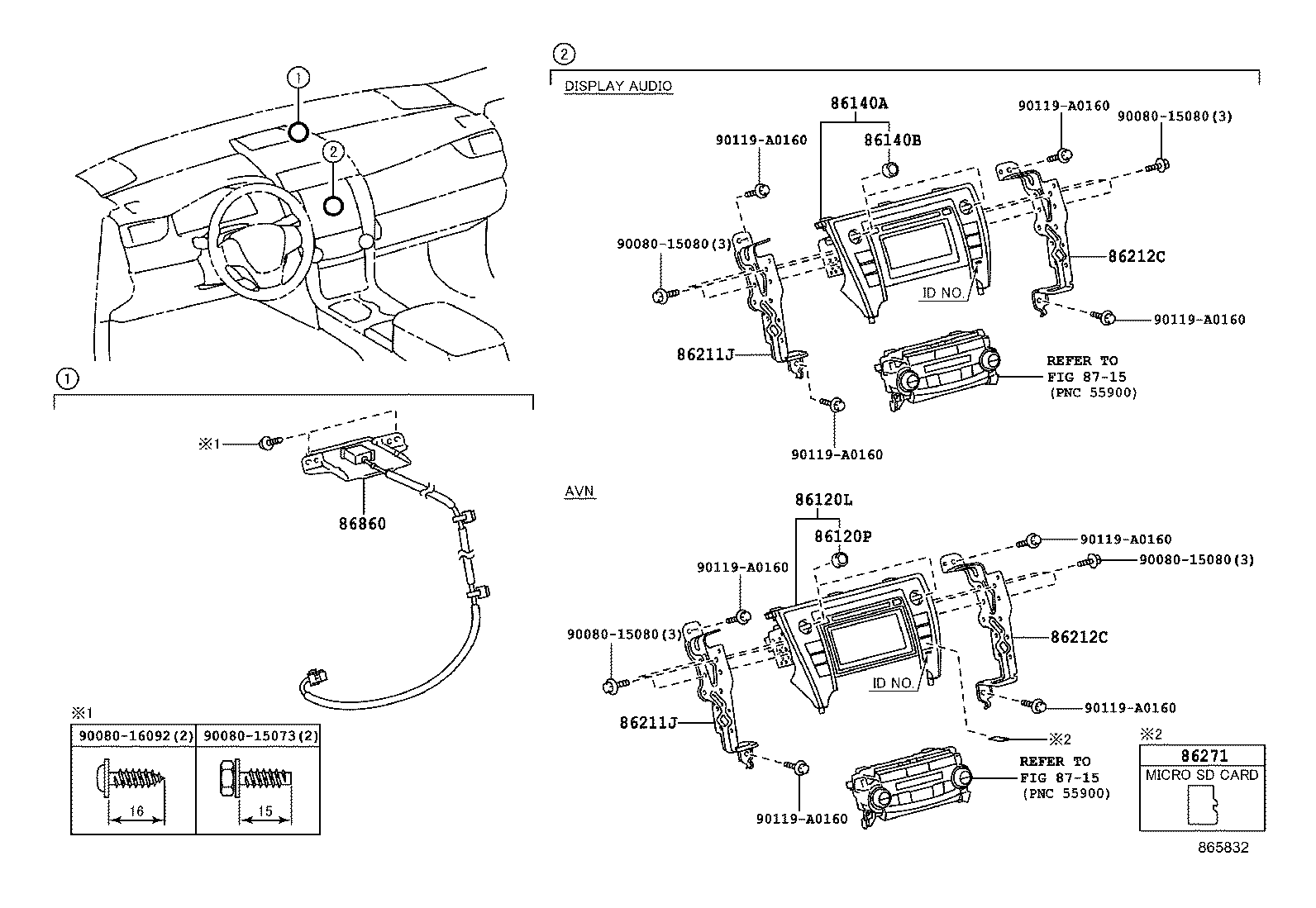

Linked diagrams
8715

ASV50L-CETSKV (2015)
