ASV50L-CETSKV (2015)
Toyota Camry
Production
Apr 2015
-
Jun 2017
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1504- )

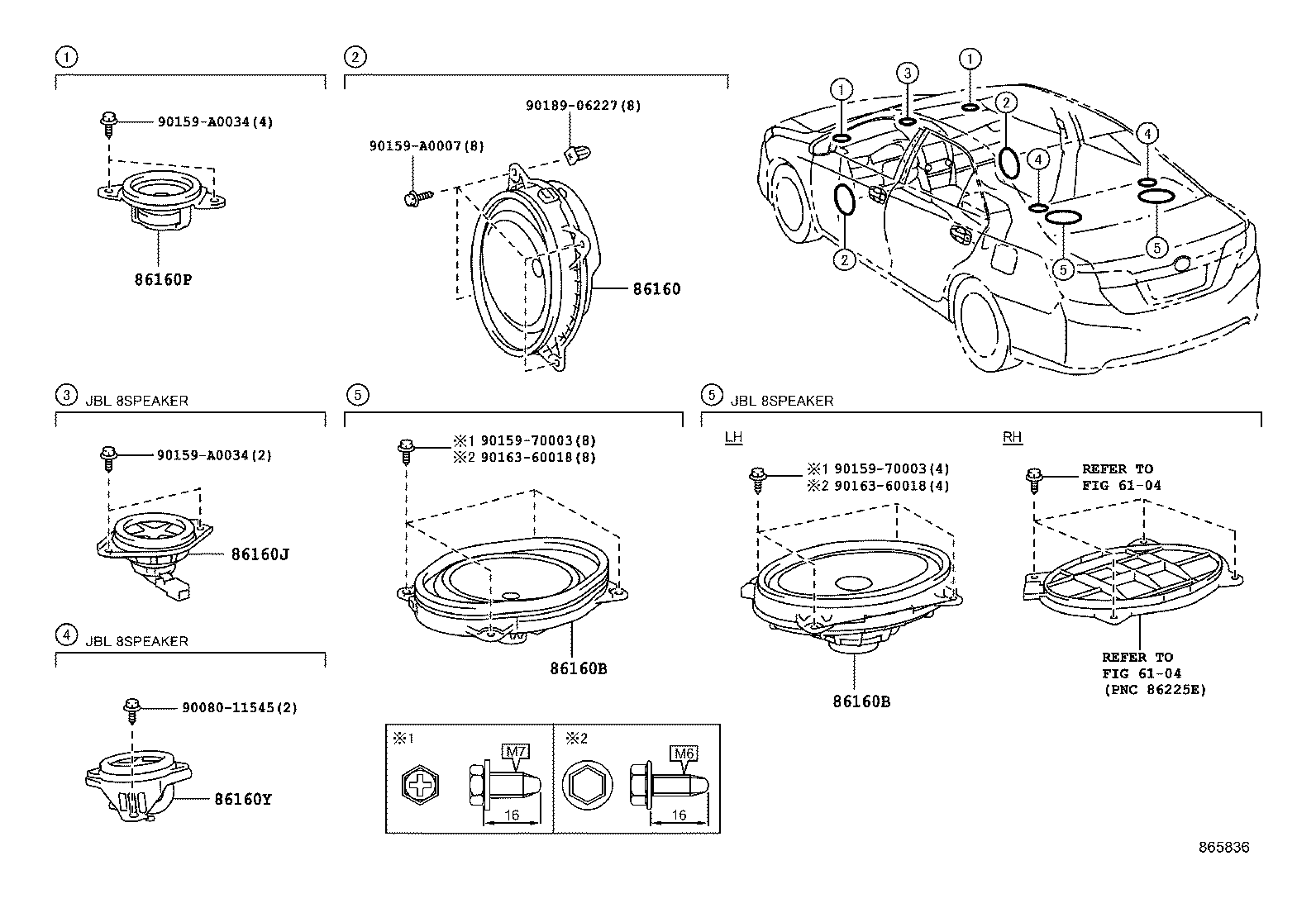

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-06390 |
ASV50 |
2 | ||
| 86160-0WU60 |
ASV50 AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST) |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-06450 |
ASV50 AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST) |
2 | ||
| 86160-06450 |
ASV50 |
2 | ||
| 86160-0WU70 |
ASV50 AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST) |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-06450 |
ASV50 AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST) |
2 | ||
| 86160-06450 |
ASV50 |
2 | ||
| 86160-0WU70 |
ASV50 AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST) |
1 | ||
| 86160J - SPEAKER ASSY, FRONT NO.3 | ||||
| 86160-0WU80 |
ASV50 AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST) |
1 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-0WU50 |
ASV50 AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST) |
2 | ||
| 86160-06380 |
ASV50 |
2 | ||
| 86160Y - SPEAKER ASSY, REAR NO.2 | ||||
| 86160-0WW70 |
ASV50 AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST),RH |
1 | ||
| 86160-0WU90 |
ASV50 AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST),LH |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90159-70003 | ||||
| 90159-A0007 | ||||
| 90159-A0034 | ||||
| 90163-60018 | ||||
| 90189-06227 | ||||
| Linked diagrams | ||||
| 6104 | ||||
