ASV50L-CETSKV (2015)

Toyota Camry

Production Apr 2015 - Jun 2017
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

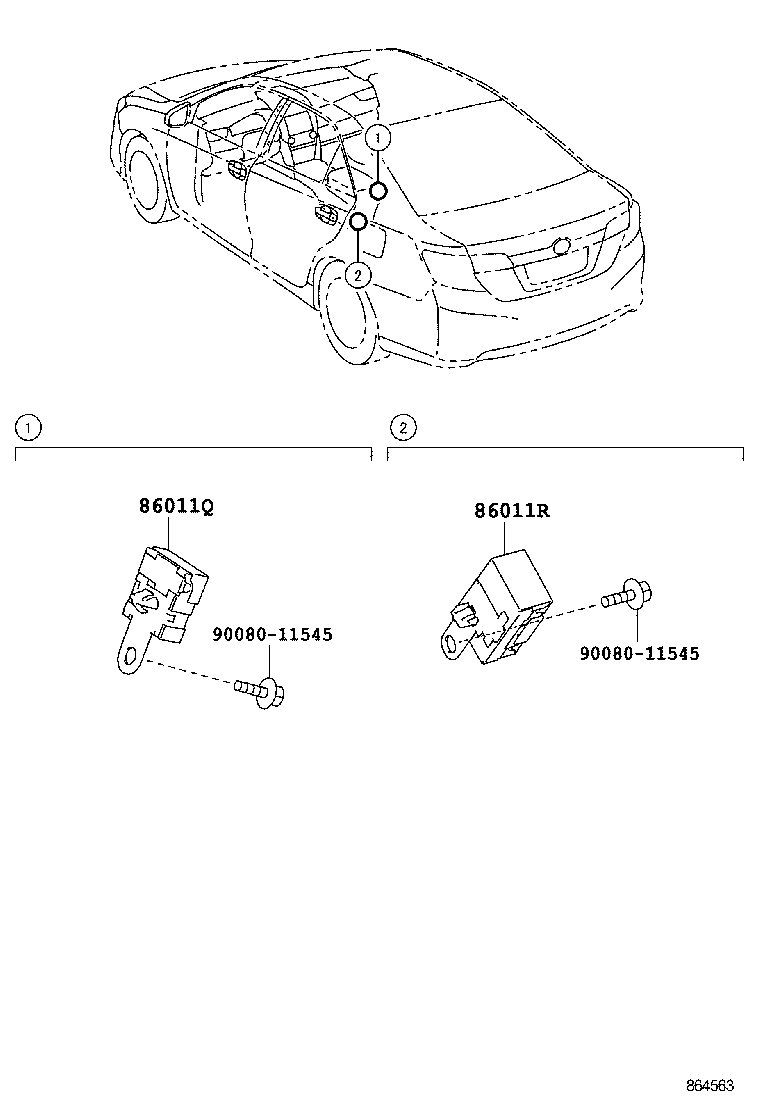

ILLUST NO. 2 OF 2(1504- )

Click highlighted areas on diagram

CONDENSER

diagram 86011Q 86011R 9008011545 9008011545
Part # Description Qty Price
86011Q - CONDENSER, RADIO SETTING
90980-04189

ASV50

 1
86011R - CONDENSER, RADIO SETTING
90980-04204

ASV50

 1
Common parts
90080-11545

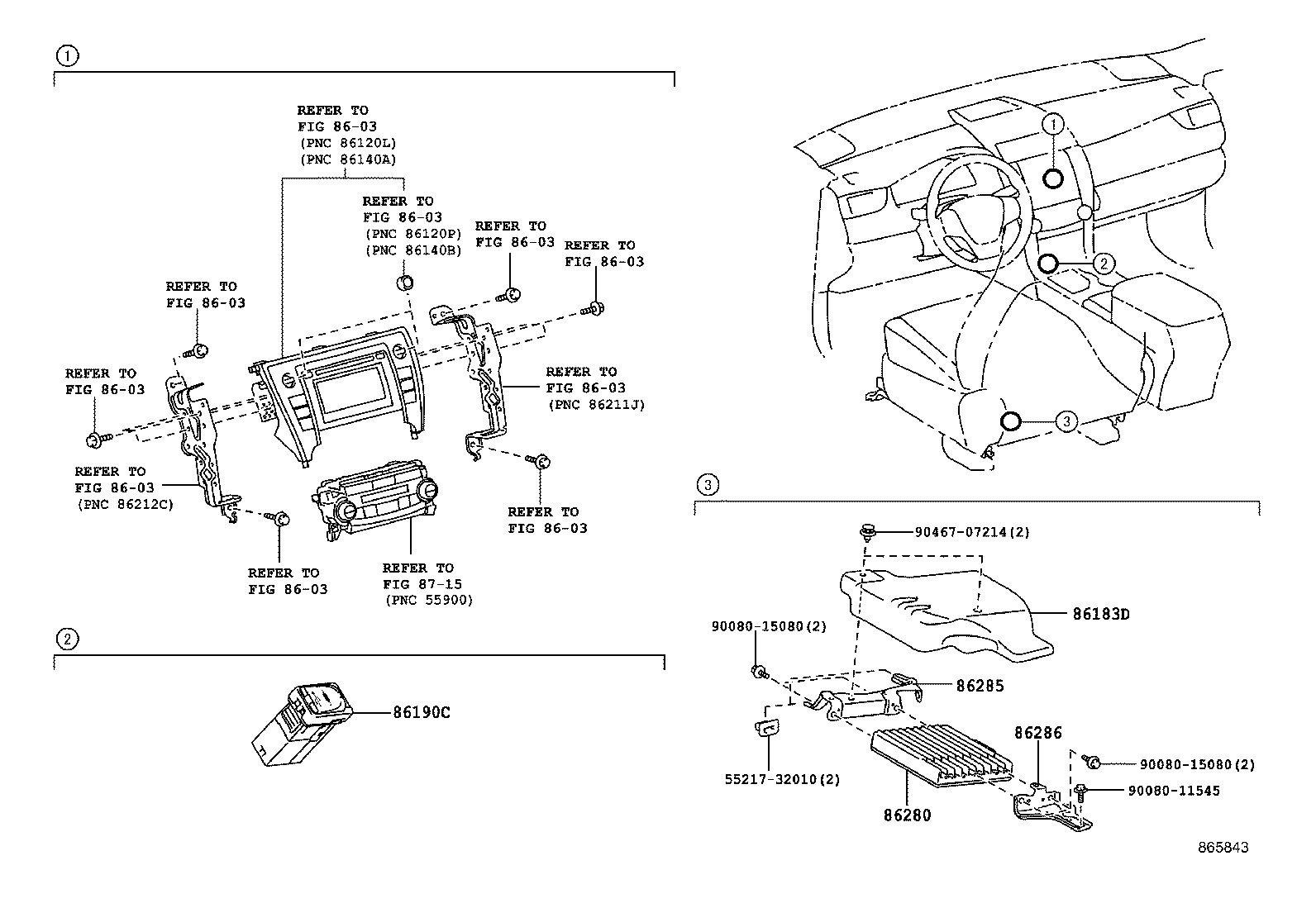

ILLUST NO. 1 OF 2(1504- )

Click highlighted areas on diagram

diagram 5521732010 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 86183D 86190C 86280 86285 86286 8715 9008011545 9008015080 9008015080 9046707214
Part # Description Qty Price
86183D - COVER, AUDIO AMPLIFIER
86183-06020

ASV50

AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST)

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-0R010

ASV50

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86100-0W280

ASV50

AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST)

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-06040

ASV50

AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST)

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-06020

ASV50

AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST)

 1
Common parts
55217-32010
90080-11545
90080-15080
90467-07214
Linked diagrams
8603
8715
