ASV50L-CETSKV (2015)
Toyota Camry
Production
Apr 2015
-
Jun 2017
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1504- )

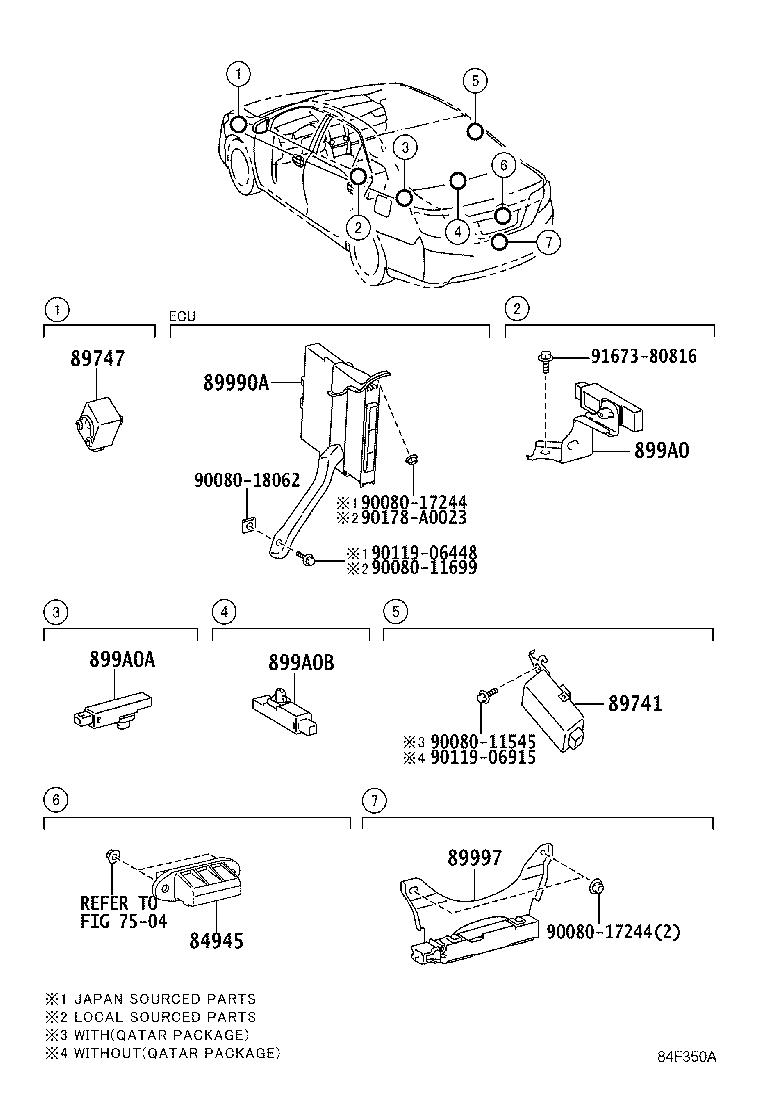

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84945 - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-06010 |
ASV50 |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89740-33260 |
ASV50 |
1 | ||
| 89740-33360 |
ASV50 QATAR PACKAGE |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-30040 |
ASV50 (J) |
1 | ||
| 89747-0R020 |
ASV50 (L) |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-06112 |
ASV50 |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-06050 |
ASV50 |
1 | ||
| 899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1 | ||||
| 899A0-06010 |
ASV50 |
1 | ||
| 899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2 | ||||
| 899A0-06030 |
ASV50 |
1 | ||
| 899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3 | ||||
| 899A0-06030 |
ASV50 |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90080-11699 | ||||
| 90080-17244 | ||||
| 90080-18062 | ||||
| 90119-06448 | ||||
| 90119-06915 | ||||
| 90178-A0023 | ||||
| 91673-80816 | ||||
| Linked diagrams | ||||
| 7504 | ||||
