ASV50L-CETSKV (2015)
Toyota Camry

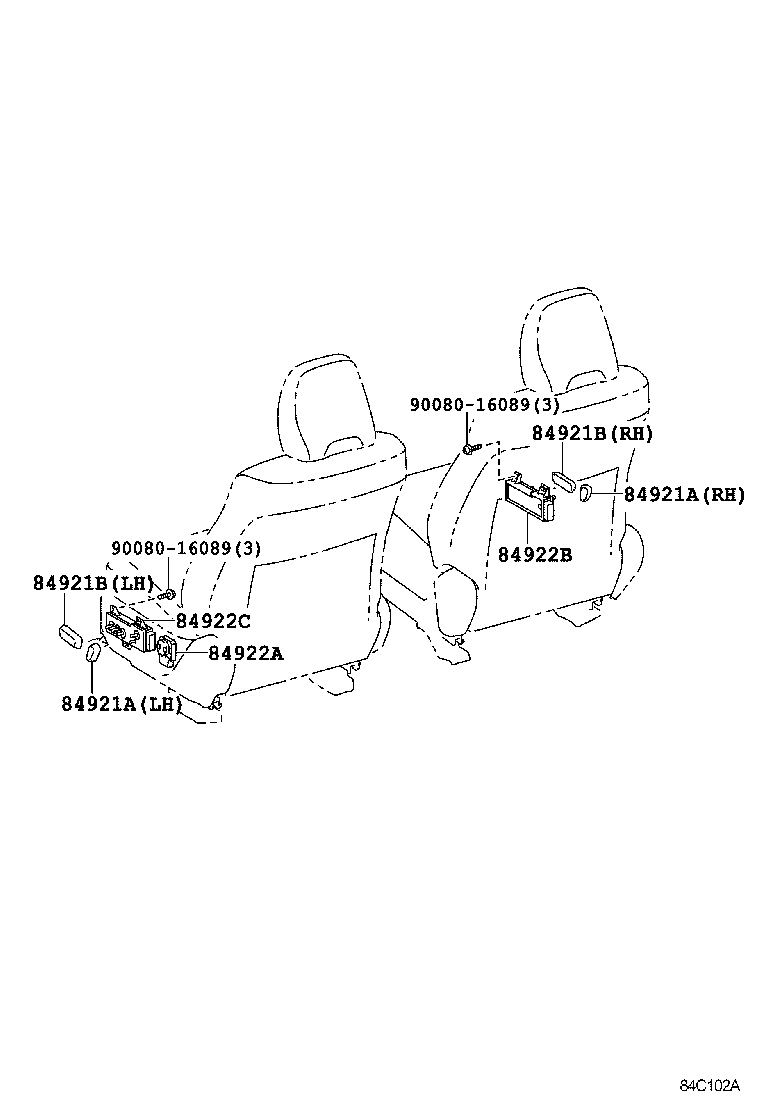

ILLUST NO. 6 OF 7(1504- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-08010B2 |
ASV50 GRAY,TRIM15,LH |
1 | ||
| 84921-08030B1 |
ASV50 *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM15,RH |
1 | ||
| 84921-08030C0 |
ASV50 *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM15,2#,RH |
1 | ||
| 84921-08010C0 |
ASV50 BLACK,TRIM15,2#,LH |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-08010B2 |
ASV50 GRAY,TRIM15,LH |
1 | ||
| 84921-08030B1 |
ASV50 *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM15,RH |
1 | ||
| 84921-08030C0 |
ASV50 *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM15,2#,RH |
1 | ||
| 84921-08010C0 |
ASV50 BLACK,TRIM15,2#,LH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-08040C0 |
ASV50 *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM15,2#,RH |
1 | ||
| 84921-08040B1 |
ASV50 *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM15,RH |
1 | ||
| 84921-08020C0 |
ASV50 BLACK,TRIM15,2#,LH |
1 | ||
| 84921-08020B2 |
ASV50 GRAY,TRIM15,LH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-08040C0 |
ASV50 *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM15,2#,RH |
1 | ||
| 84921-08040B1 |
ASV50 *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM15,RH |
1 | ||
| 84921-08020C0 |
ASV50 BLACK,TRIM15,2#,LH |
1 | ||
| 84921-08020B2 |
ASV50 GRAY,TRIM15,LH |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-08010C0 |
ASV50 BLACK,TRIM15,2# |
1 | ||
| 84920-08010B2 |
ASV50 GRAY,TRIM15 |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-08010 |
ASV50 *DRP:WITH(POWER SEAT) & LEATHER PACKAGE |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-08020 |
ASV50 |
1 | ||
| Common parts | ||||
| 90080-16089 | ||||

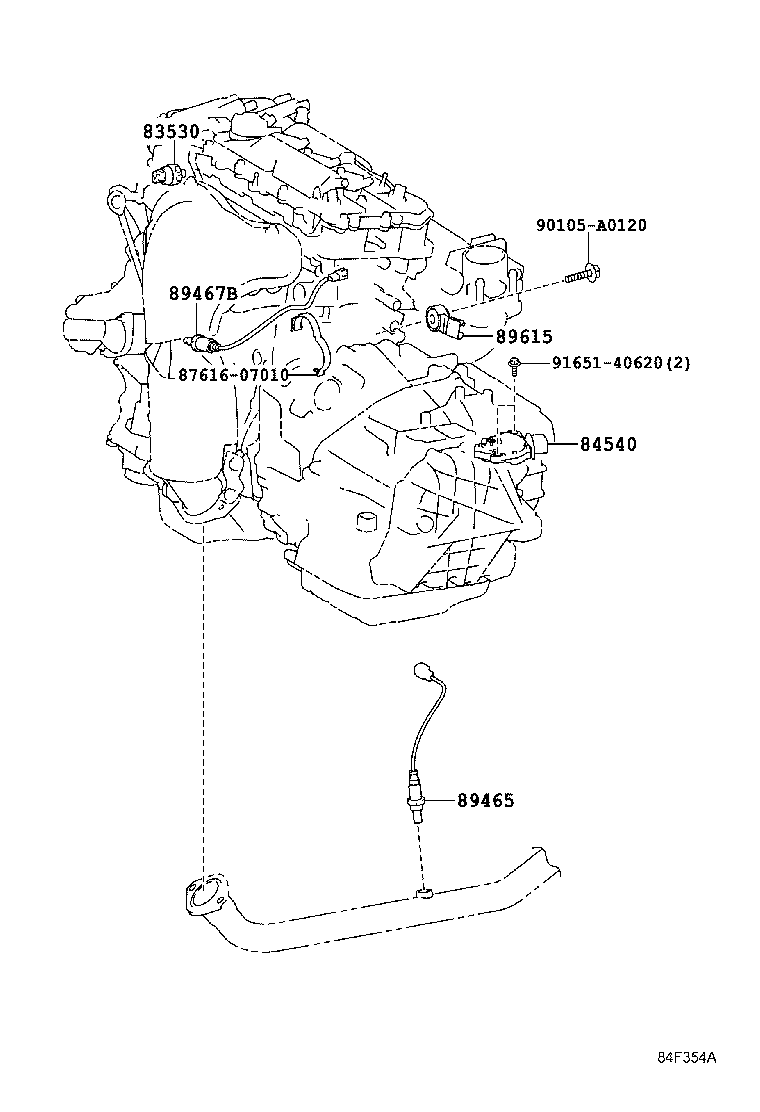

ILLUST NO. 1 OF 7(1504- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
ASV50 (J),YAZAKI |
1 | ||
| 83530-28020 |
ASV50 DENSO |
1 | ||
| 83530-0E010 |
ASV50 (L),YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-33010 |
ASV50 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-06290 |
ASV50 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-06120 |
ASV50 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-06010 |
ASV50 |
1 | ||
| Common parts | ||||
| 87616-07010 | ||||
| 90105-A0120 | ||||
| 91651-40620 | ||||

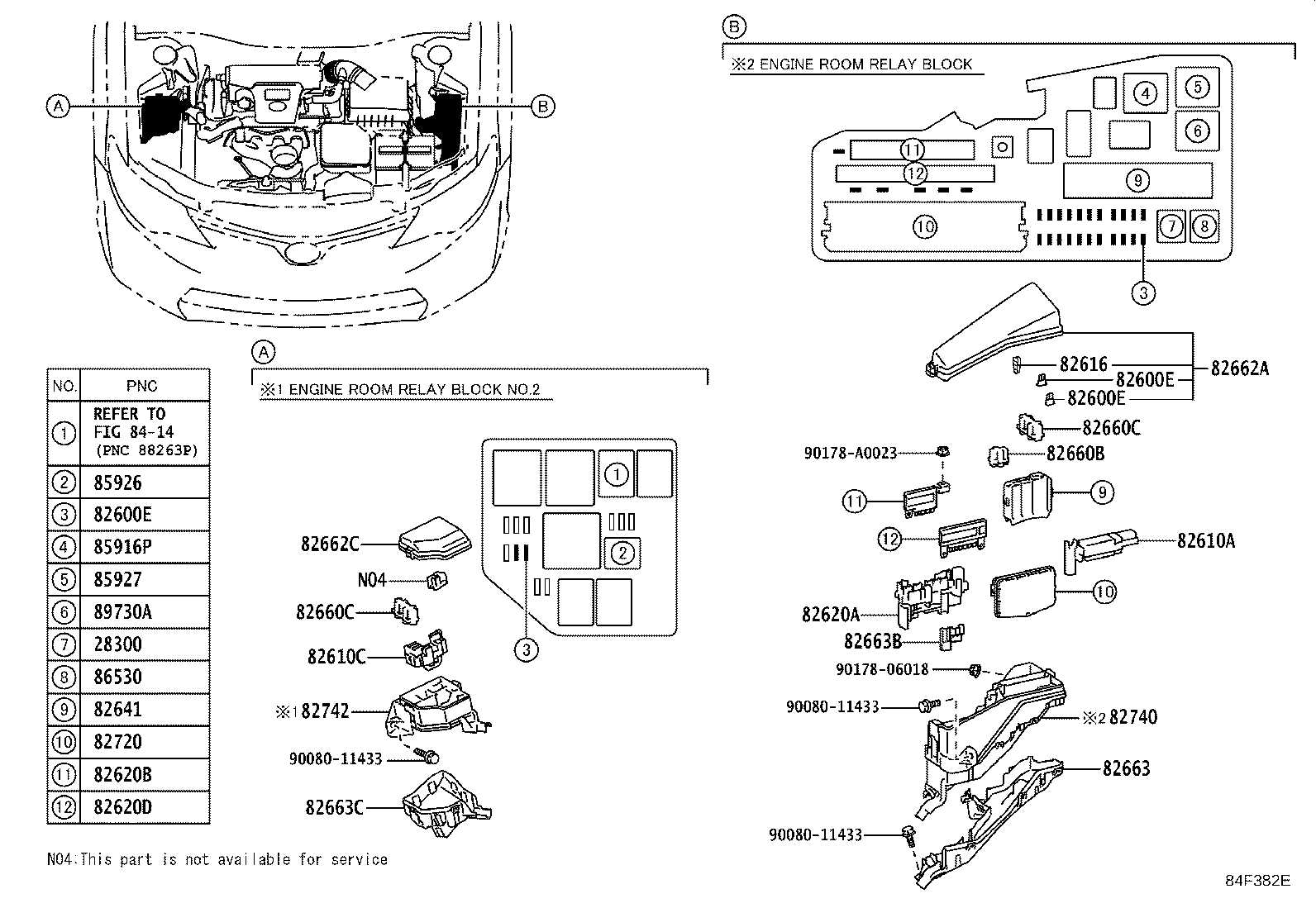

ILLUST NO. 2 OF 7(1504- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-0A010 |
2ARFE..ASV50 |
1 | ||
| 28300-0A011 |
2ARFE..ASV50 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09024 |
ASV50 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ASV50 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ASV50 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ASV50 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ASV50 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
ASV50 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
ASV50 15A,MINI FUSE,BLUE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09024 |
ASV50 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ASV50 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ASV50 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ASV50 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ASV50 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
ASV50 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
ASV50 15A,MINI FUSE,BLUE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09024 |
ASV50 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ASV50 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ASV50 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ASV50 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ASV50 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
ASV50 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
ASV50 15A,MINI FUSE,BLUE |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-33090 |
ASV50 |
1 | ||
| 82610C - BLOCK ASSY, FUSE | ||||
| 82610-33100 |
ASV50 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ASV50 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33050 |
ASV50 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33070 |
ASV50 |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33060 |
ASV50 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-33150 |
ASV50 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-48030 |
ASV50 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-33030 |
ASV50 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-33030 |
ASV50 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-06170 |
ASV50 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-06440 |
ASV50 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-33110 |
ASV50 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-33170 |
ASV50 |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-33200 |
ASV50 |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-06121 |
ASV50 |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-33030 |
ASV50 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-33030 |
ASV50 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87024 |
ASV50 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87026 |
ASV50 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90084-98032 |
ASV50 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87026 |
ASV50 |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90080-87026 |
ASV50 ANTI-THEFT SYSTEM-W(ALARM & IMMOBILIZER) |
1 | ||
| Common parts | ||||
| 90080-11433 | ||||
| 90178-06018 | ||||
| 90178-A0023 | ||||
| Linked diagrams | ||||
| 8414 | ||||

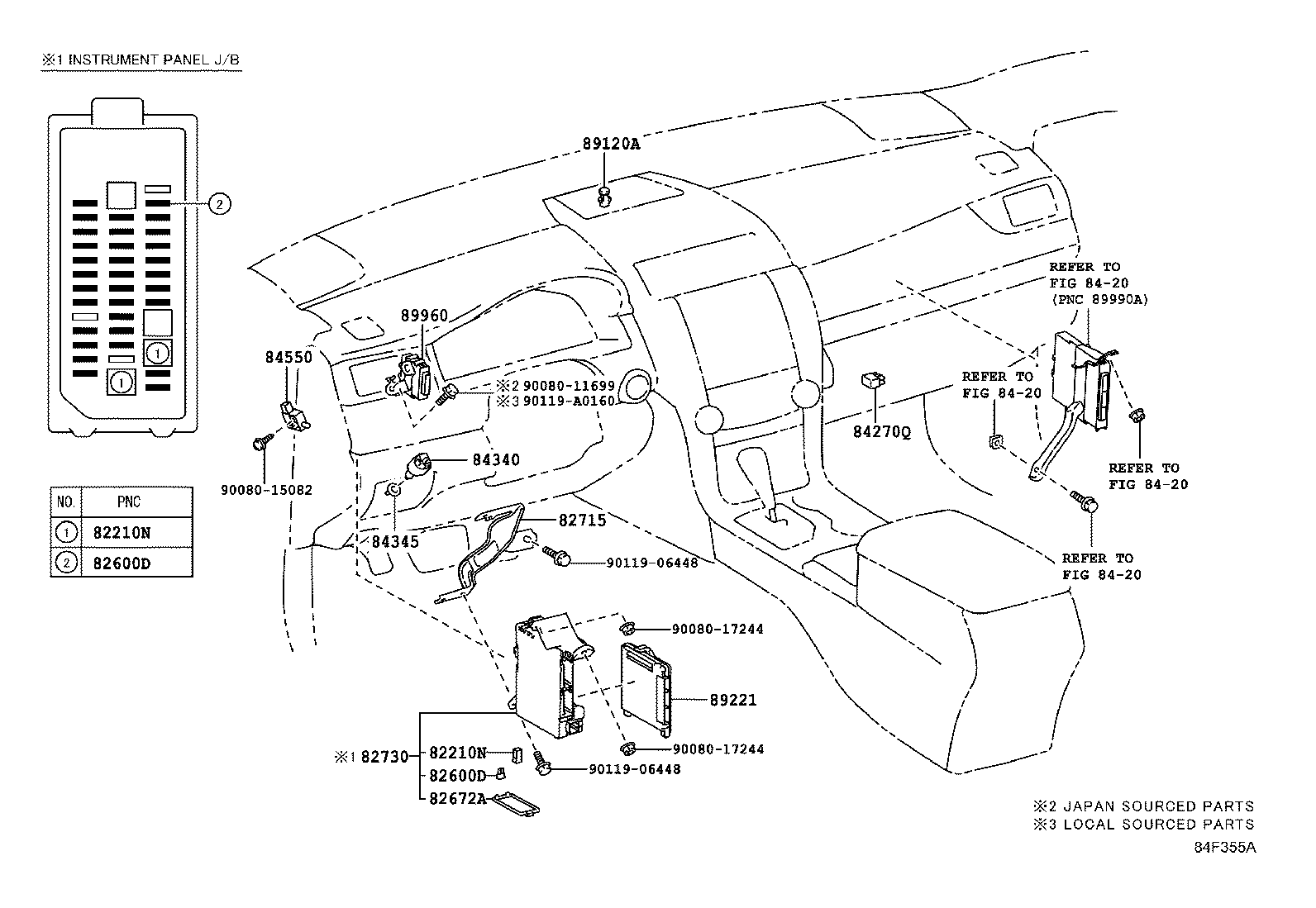

ILLUST NO. 3 OF 7(1504- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ASV50 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ASV50 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
ASV50 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ASV50 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ASV50 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
ASV50 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ASV50 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ASV50 15A,MINI FUSE,BLUE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
ASV50 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ASV50 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ASV50 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
ASV50 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ASV50 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ASV50 15A,MINI FUSE,BLUE |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-06243 |
ASV50 |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-06F90 |
ASV50 INSTRUMENT PANEL |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-06753 |
ASV50 |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90080-87026 |
ASV50 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09070 |
ASV50 |
1 | ||
| 84340-09310 |
ASV50 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-08010 |
ASV50 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-0E010 |
ASV50 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-06020 |
ASV50 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-06420 |
ASV50 ANTI-THEFT SYSTEM-W(ALARM & IMMOBILIZER) |
1 | ||
| 89220-06430 |
ASV50 |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-33451 |
ASV50 |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-15082 | ||||
| 90080-17244 | ||||
| 90119-06448 | ||||
| 90119-A0160 | ||||
| Linked diagrams | ||||
| 8420 | ||||
ILLUST NO. 5 OF 7(1504- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-06510 |
ASV50 |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-06570 |
ASV50 |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-02220 |
ASV50 |
1 | ||
| 84523 - WIRE, SWITCH NO.1 | ||||
| 84523-42010 |
ASV50 |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-12120 |
ASV50 LH |
1 | ||
| 84610-12130 |
ASV50 RH |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-12120 |
ASV50 LH |
1 | ||
| 84610-12130 |
ASV50 RH |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-06240 |
ASV50 |
1 | ||
| 89245C - SENSOR, STEERING | ||||
| 8924B-0E020 |
ASV50 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-06200 |
ASV50 |
1 | ||
| 89650-06201 |
ASV50 |
1 | ||
| Common parts | ||||
| 90080-15079 | ||||
| 90080-16108 | ||||

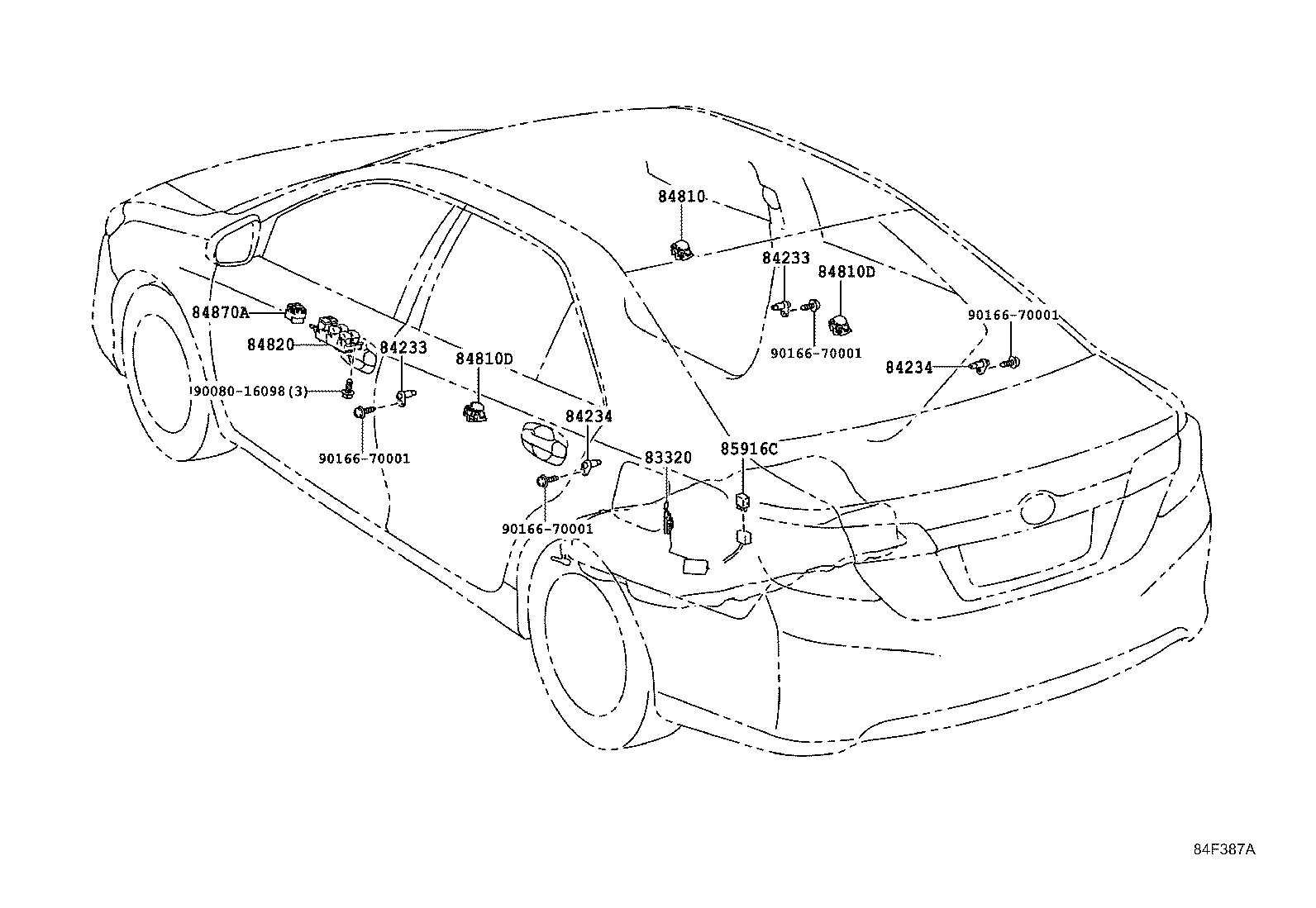

ILLUST NO. 7 OF 7(1504- )
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-33141 |
ASV50 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-08030 |
ASV50 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-08030 |
ASV50 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-08030 |
ASV50 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-08030 |
ASV50 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0E040 |
ASV50 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0E050 |
ASV50 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0E050 |
ASV50 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-06120 |
ASV50 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-02190 |
ASV50 |
1 | ||
| 85916C - RELAY, BACK UP LAMP | ||||
| 90080-87026 |
ASV50 |
1 | ||
| Common parts | ||||
| 90080-16098 | ||||
| 90166-70001 | ||||

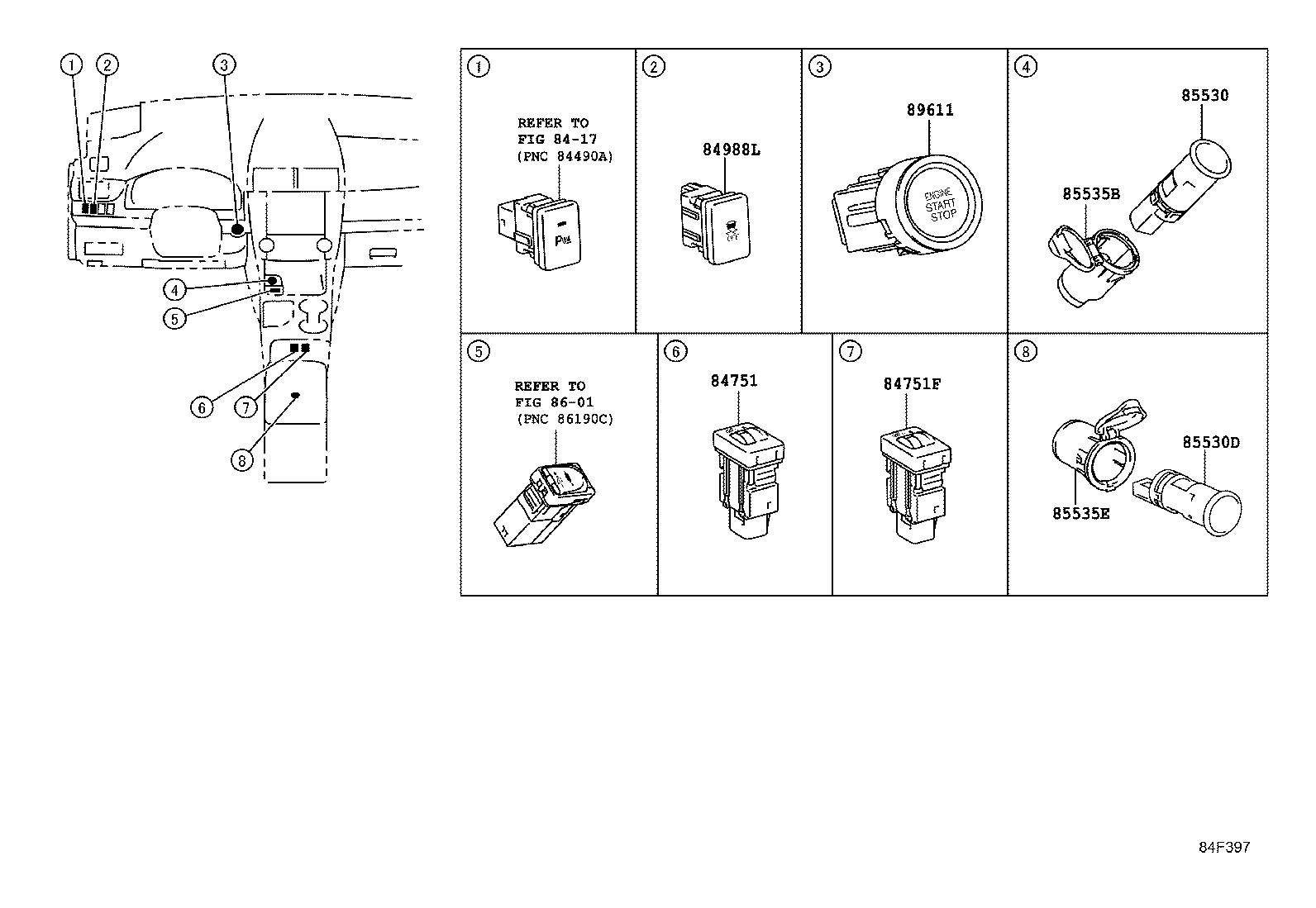

ILLUST NO. 4 OF 7(1504- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-06121 |
ASV50 *DRP:WITH(POWER SEAT) & LEATHER PACKAGE |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-06111 |
ASV50 *DRP:WITH(POWER SEAT) & LEATHER PACKAGE |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-0R071 |
ASV50 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-06030 |
ASV50 |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-06030 |
ASV50 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-0E060C0 |
ASV50 BLACK |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-0E060C0 |
ASV50 BLACK |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0R020 |
ASV50 |
1 | ||
| 89611-0R022 |
ASV50 |
1 | ||
| 89611-0R021 |
ASV50 |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
