ASV50L-CETSKV (2015)
Toyota Camry
Production
Apr 2015
-
Jun 2017
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1504- )

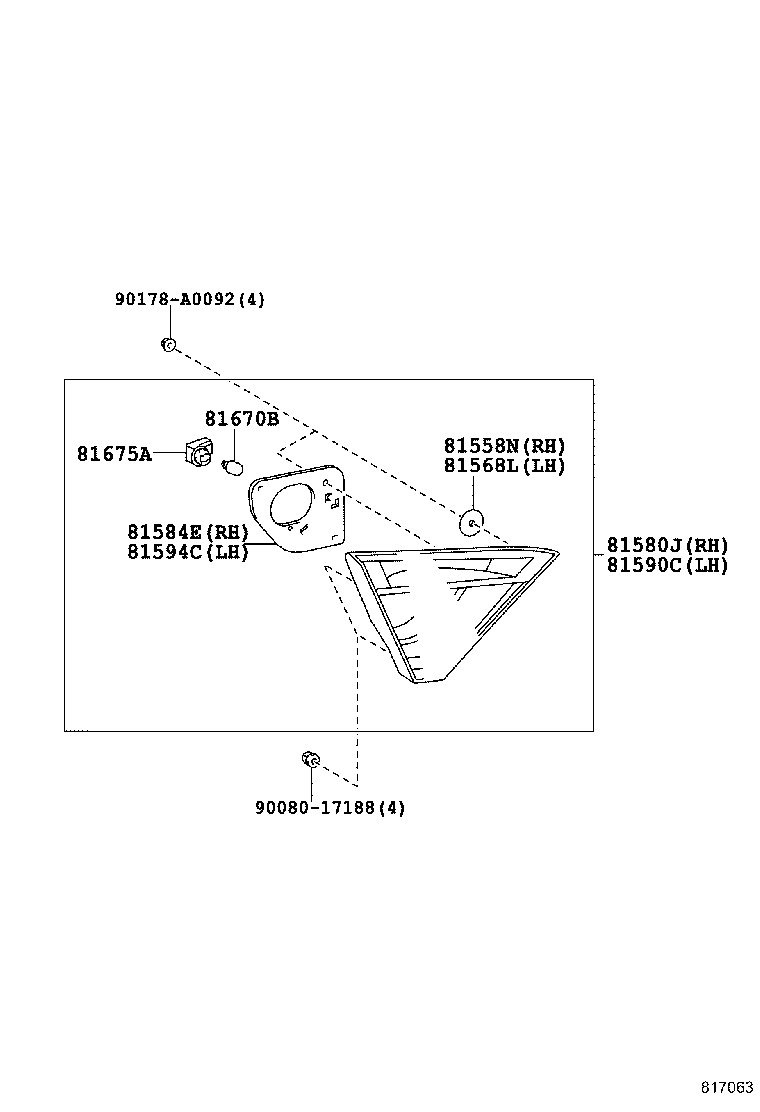

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81558N - PROTECTOR, REAR COMBINATION LAMP, RH | ||||
| 81558-06410 |
ASV50 |
1 | ||
| 81568L - PROTECTOR, REAR COMBINATION LAMP, LH | ||||
| 81558-06410 |
ASV50 |
1 | ||
| 81580J - LAMP ASSY, REAR, RH | ||||
| 81580-06410 |
ASV50 |
1 | ||
| 81584E - GASKET, REAR LAMP RH | ||||
| 81584-06410 |
ASV50 |
1 | ||
| 81590C - LAMP ASSY, REAR, LH | ||||
| 81590-06410 |
ASV50 |
1 | ||
| 81594C - GASKET, REAR LAMP LH | ||||
| 81584-06410 |
ASV50 |
1 | ||
| 81670B - BULB(FOR BACK-UP LAMP) | ||||
| 90981-11059 |
ASV50 12V 16W |
2 | ||
| 81675A - PLUG, SOCKET(FOR BACK-UP LAMP) | ||||
| 90075-60037 |
ASV50 |
2 | ||
| Common parts | ||||
| 90080-17188 | ||||
| 90178-A0092 | ||||
