ASV50L-CETSKV (2015)
Toyota Camry
Production
Apr 2015
-
Jun 2017
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1504- )

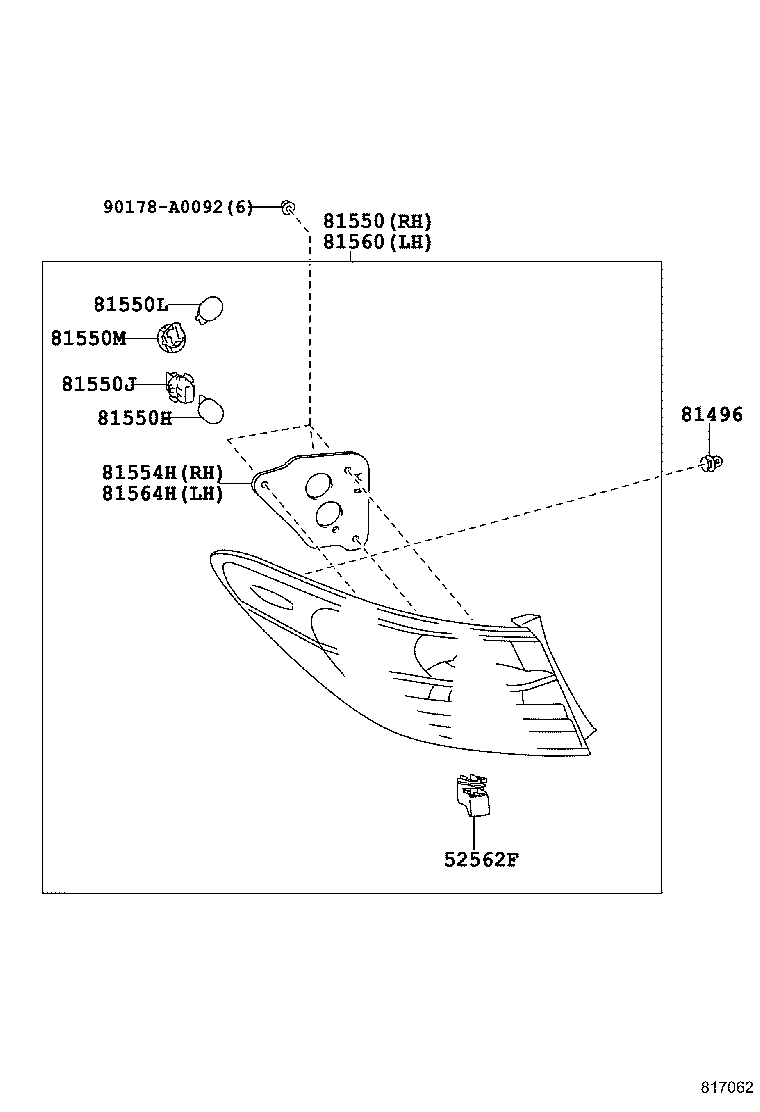

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52562F - RETAINER, REAR BUMPER, UPPER SIDE | ||||
| 52562-06130 |
ASV50 |
2 | ||
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-60010 |
ASV50 |
2 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-06640 |
ASV50 |
1 | ||
| 81550H - BULB, TAIL & STOP LAMP | ||||
| 90981-13044 |
ASV50 12V 21/5W |
2 | ||
| 81550J - SOCKET, TAIL & STOP LAMP | ||||
| 90075-60079 |
ASV50 |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15021 |
ASV50 12V 21W,AMBER |
2 | ||
| 81550M - SOCKET, REAR TURN SIGNAL LAMP | ||||
| 90075-60026 |
ASV50 |
2 | ||
| 81554H - PACKING, REAR COMBINATION LAMP, RH | ||||
| 81554-06640 |
ASV50 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-06640 |
ASV50 |
1 | ||
| 81564H - PACKING, REAR COMBINATION LAMP, LH | ||||
| 81554-06640 |
ASV50 |
1 | ||
| Common parts | ||||
| 90178-A0092 | ||||
