ASV50L-CETSKV (2015)

Toyota Camry

Production Apr 2015 - Jun 2017
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1504- )

Click highlighted areas on diagram

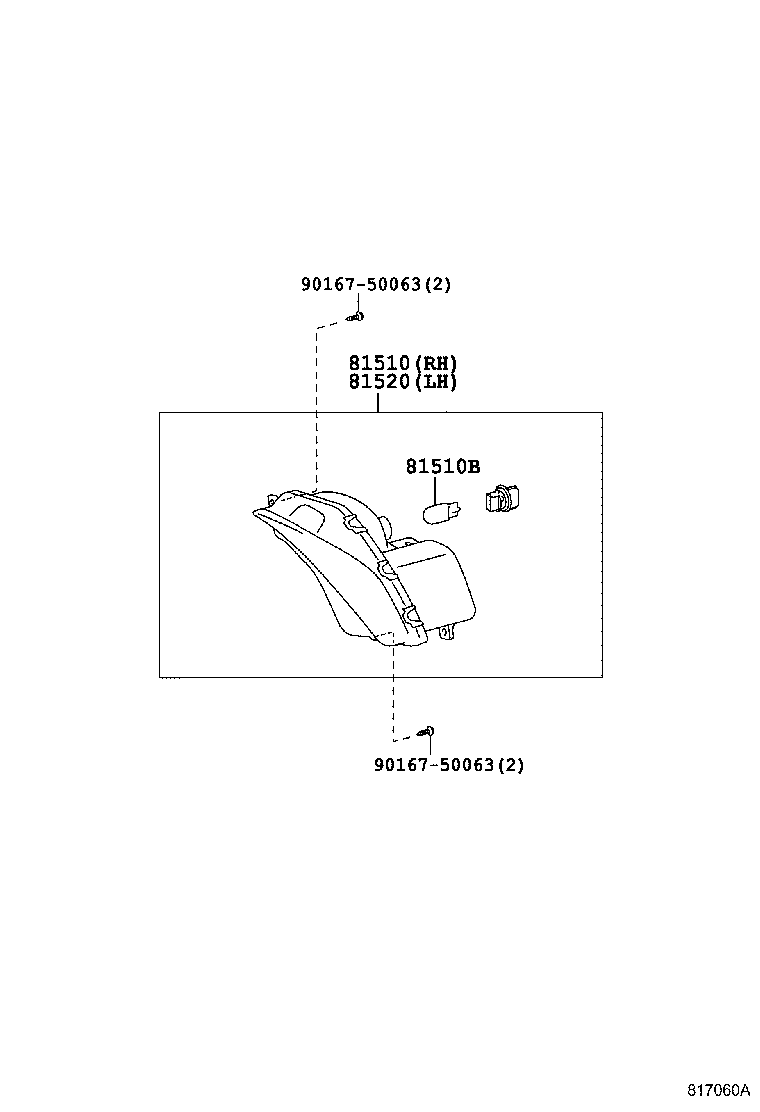

diagram 81510 81510B 81520 9016750063 9016750063
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81430-06030

ASV50

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15024

ASV50

12V 28/8W

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81440-06030

ASV50

 1
Common parts
90167-50063
