ASV50L-CETSKV (2015)
Toyota Camry
Production
Apr 2015
-
Jun 2017
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1504- )

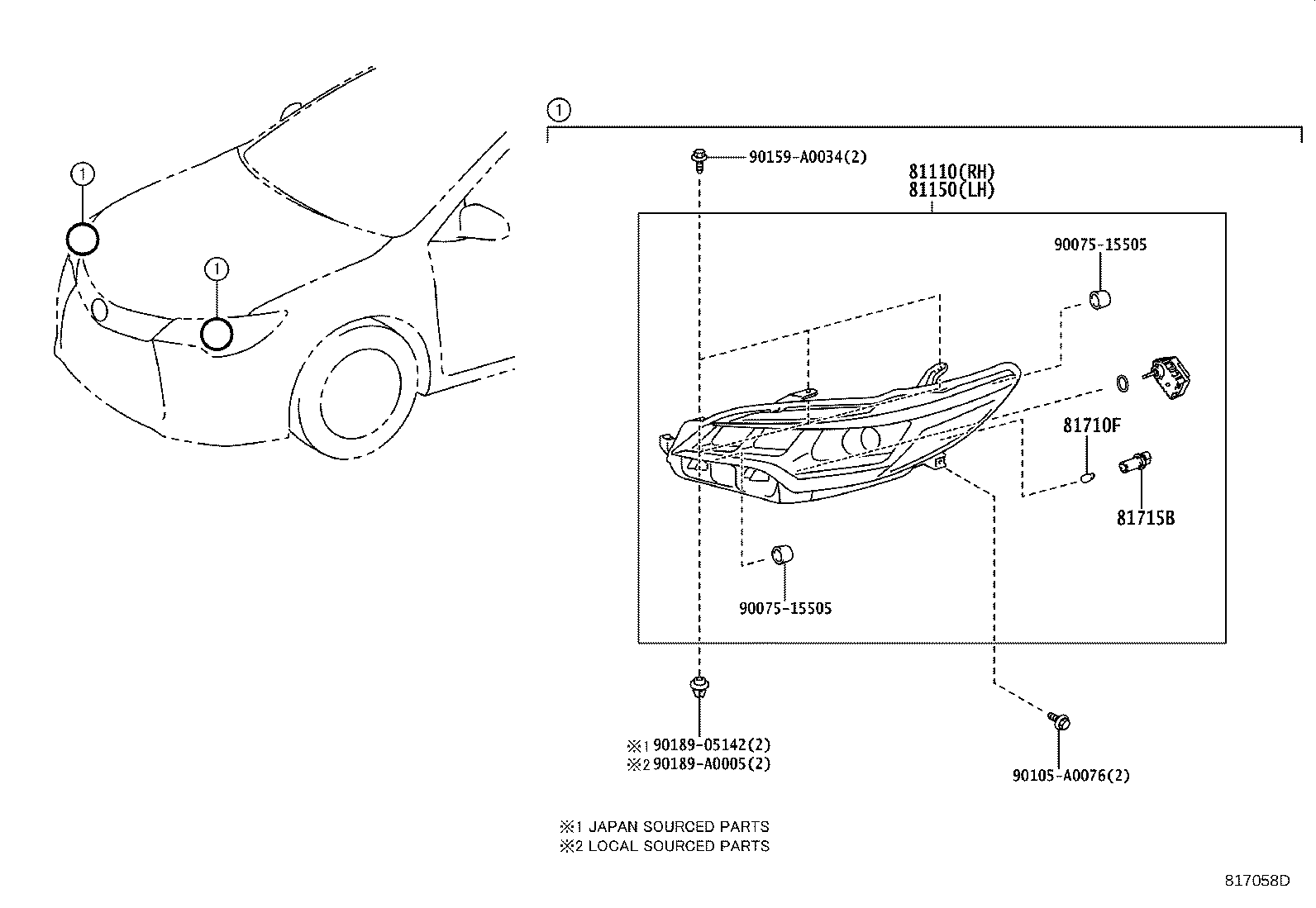

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-06C80 |
ASV50 |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-06C80 |
ASV50 |
1 | ||
| 81710F - BULB, FRONT SIDE MAKER LAMP | ||||
| 99132-12050 |
ASV50 |
2 | ||
| 81715B - SOCKET & WIRE, FRONT SIDE MARKER LAMP | ||||
| 90075-60077 |
ASV50 |
2 | ||
| Common parts | ||||
| 90075-15505 | ||||
| 90105-A0076 | ||||
| 90159-A0034 | ||||
| 90189-05142 | ||||
| 90189-A0005 | ||||
