ASV50L-CETSKV (2015)
Toyota Camry
Production
Apr 2015
-
Jun 2017
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1504- )

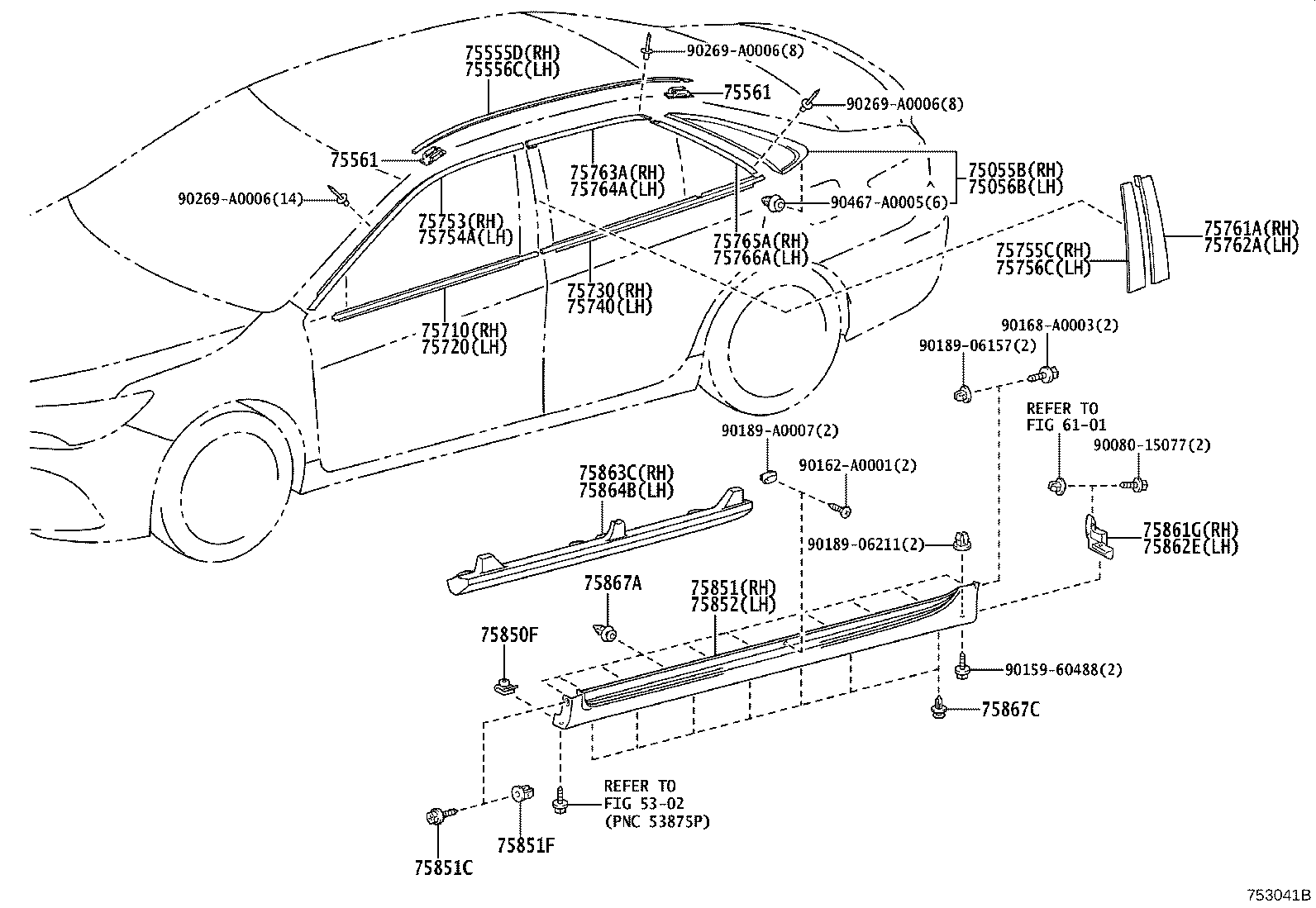

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75055B - GARNISH SUB-ASSY, REAR PILLAR, OUTER RH | ||||
| 75055-06010 |
ASV50 |
1 | ||
| 75056B - GARNISH SUB-ASSY, REAR PILLAR, OUTER LH | ||||
| 75056-06010 |
ASV50 |
1 | ||
| 75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH | ||||
| 75555-06080 |
ASV50 |
1 | ||
| 75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH | ||||
| 75556-06080 |
ASV50 |
1 | ||
| 75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1 | ||||
| 75561-33030 |
ASV50 |
4 | ||
| 75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1 | ||||
| 75561-33030 |
ASV50 |
4 | ||
| 75710 - MOULDING ASSY, FRONT DOOR BELT, RH | ||||
| 75710-06180 |
ASV50 |
1 | ||
| 75720 - MOULDING ASSY, FRONT DOOR BELT, LH | ||||
| 75720-06180 |
ASV50 |
1 | ||
| 75730 - MOULDING ASSY, REAR DOOR BELT, RH | ||||
| 75730-06160 |
ASV50 |
1 | ||
| 75740 - MOULDING ASSY, REAR DOOR BELT, LH | ||||
| 75740-06160 |
ASV50 |
1 | ||
| 75753 - MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH | ||||
| 75753-06080 |
ASV50 |
1 | ||
| 75754A - MOULDING, FRONT DOOR WINDOW FRAME, UPPER LH | ||||
| 75754-06080 |
ASV50 |
1 | ||
| 75755C - MOULDING, FRONT DOOR WINDOW FRAME, REAR RH | ||||
| 75755-06140 |
ASV50 |
1 | ||
| 75756C - MOULDING, FRONT DOOR WINDOW FRAME, REAR LH | ||||
| 75756-06140 |
ASV50 |
1 | ||
| 75761A - MOULDING, REAR DOOR WINDOW FRAME, FRONT RH | ||||
| 75761-06140 |
ASV50 NO PAINT REQ. |
1 | ||
| 75762A - MOULDING, REAR DOOR WINDOW FRAME, FRONT LH | ||||
| 75762-06140 |
ASV50 NO PAINT REQ. |
1 | ||
| 75763A - MOULDING, REAR DOOR WINDOW FRAME, UPPER RH | ||||
| 75763-06140 |
ASV50 |
1 | ||
| 75764A - MOULDING, REAR DOOR WINDOW FRAME, UPPER LH | ||||
| 75764-06140 |
ASV50 |
1 | ||
| 75765A - MOULDING, REAR DOOR WINDOW FRAME, REAR RH | ||||
| 75765-06030 |
ASV50 |
1 | ||
| 75766A - MOULDING, REAR DOOR WINDOW FRAME, REAR LH | ||||
| 75766-06030 |
ASV50 |
1 | ||
| 75850F - NUT, NO.1 | ||||
| 90183-06019 |
ASV50 |
2 | ||
| 75851 - MOULDING, ROCKER PANEL, RH | ||||
| 75851-06926 |
ASV50 |
1 | ||
| 75851C - SCREW(FOR BODY ROCKER PANEL MOULDING) | ||||
| 90168-A0003 |
ASV50 |
4 | ||
| 75851F - GROMMET(FOR BODY ROCKER PANEL MOULDING) | ||||
| 90189-06065 |
ASV50 |
4 | ||
| 75852 - MOULDING, ROCKER PANEL, LH | ||||
| 75852-06927 |
ASV50 |
1 | ||
| 75861G - COVER, ROCKER PANEL MOULDING END, FRONT RH | ||||
| 75861-06130 |
ASV50 |
1 | ||
| 75862E - COVER, ROCKER PANEL MOULDING END, FRONT LH | ||||
| 75862-06140 |
ASV50 |
1 | ||
| 75863C - PROTECTOR, ROCKER PANEL MOULDING, NO.3 | ||||
| 75863-06180 |
ASV50 |
1 | ||
| 75864B - PROTECTOR, ROCKER PANEL MOULDING, NO.4 | ||||
| 75864-06180 |
ASV50 |
1 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-AA010 |
ASV50 |
20 | ||
| 75867C - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-06030 |
ASV50 |
14 | ||
| Common parts | ||||
| 90080-15077 | ||||
| 90159-60488 | ||||
| 90162-A0001 | ||||
| 90168-A0003 | ||||
| 90189-06157 | ||||
| 90189-06211 | ||||
| 90189-A0007 | ||||
| 90269-A0006 | ||||
| 90467-A0005 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 6101 | ||||
