ASV50L-CETSKV (2015)

Toyota Camry

Production Apr 2015 - Jun 2017
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1504- )

Click highlighted areas on diagram

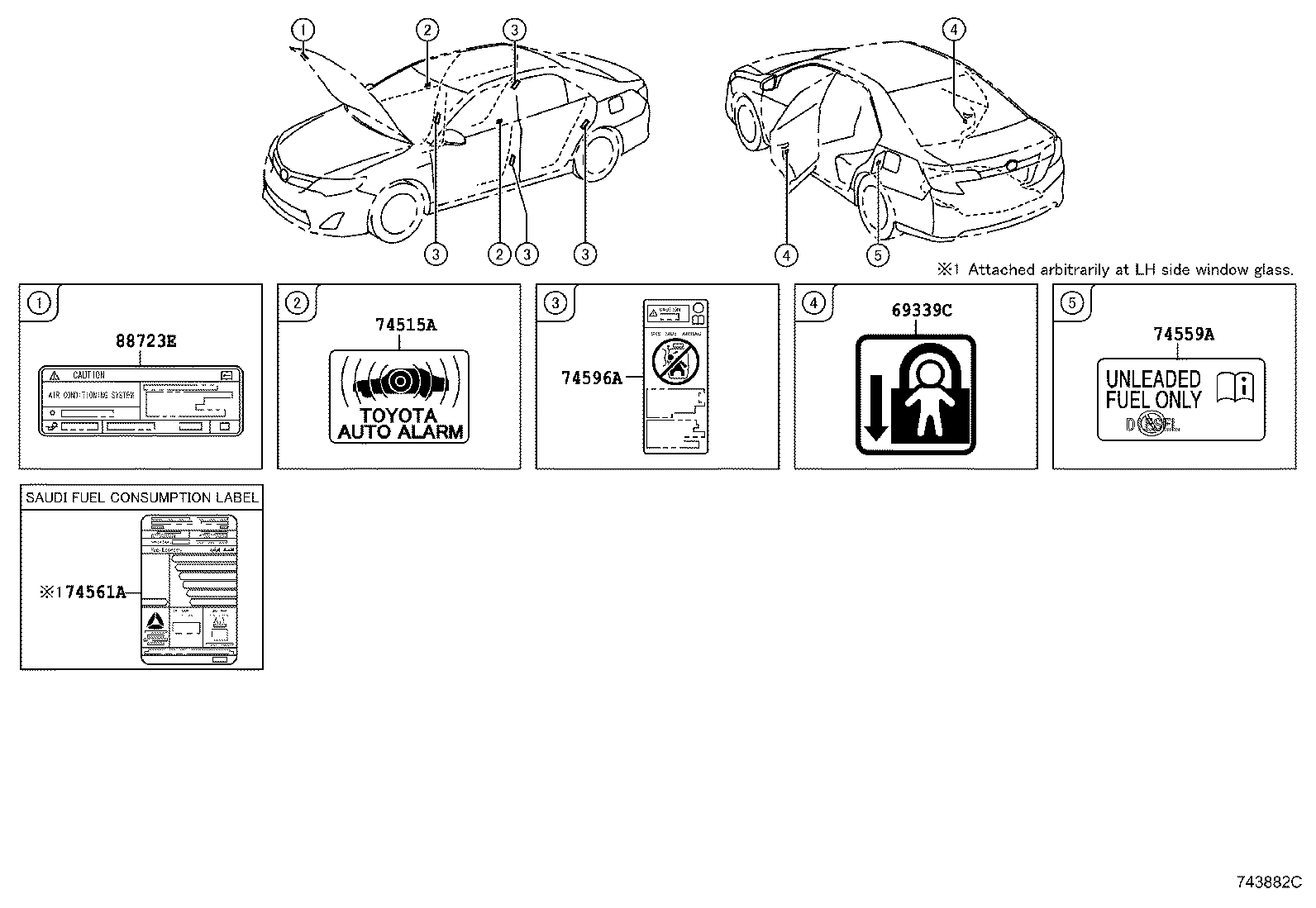

diagram 69339C 74515A 74559A 74561A 74596A 88723E
Part # Description Qty Price
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-06040

ASV50

 2
74515A - PLATE, THEFT WARNING
74515-06010

ASV50

ANTI-THEFT SYSTEM-W(ALARM & IMMOBILIZER)

 2
74559A - PLATE, FUEL CAUTION
74559-06060

ASV50

 1
74561A - LABEL, FUEL CONSUMPTION INFORMATION
74561-33091

ASV50

FUEL CONSUMPTION LABEL-WITH(FOR SAUDI ARABIA)

 1
74561-33090

ASV50

FUEL CONSUMPTION LABEL-WITH(FOR SAUDI ARABIA)

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-53020

ASV50

 4
88723E - LABEL, COOLER SERVICE CAUTION
88723-07050

ASV50

 1
