ASV50L-CETSKV (2015)

Toyota Camry

Production Apr 2015 - Jun 2017
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1504- )

Click highlighted areas on diagram

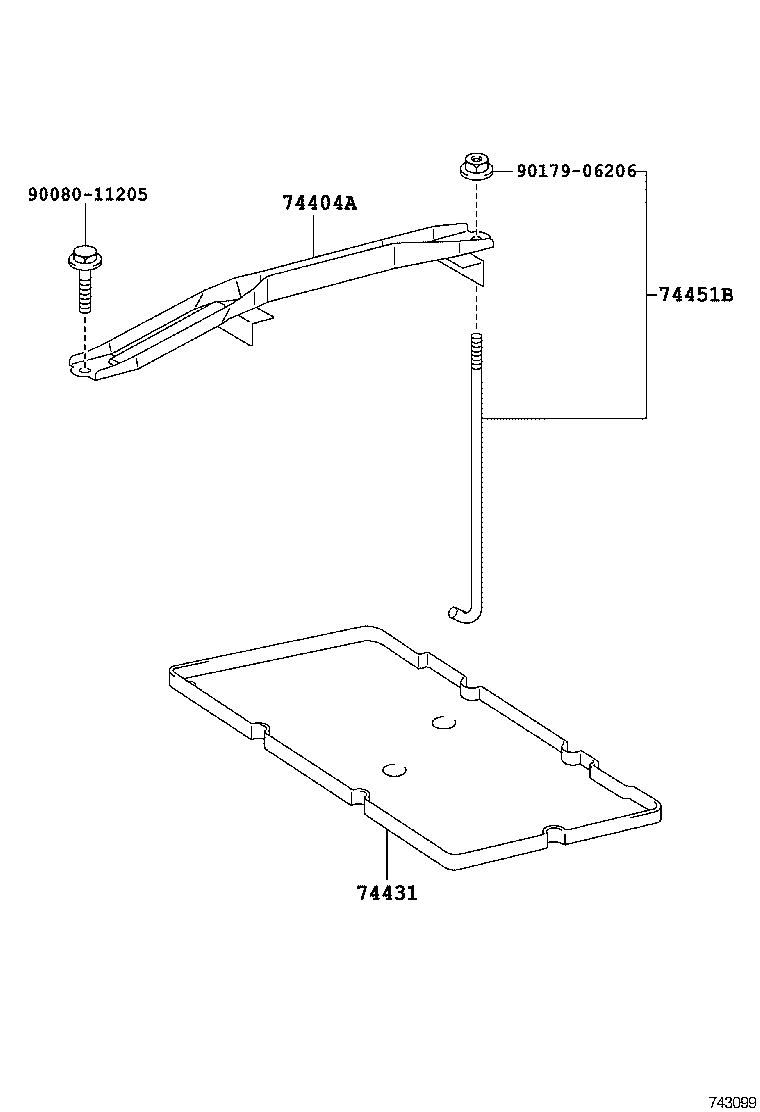

diagram 74404A 74431 74451B 9008011205 9017906206
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-06130

ASV50

 1
74431 - TRAY, BATTERY
74431-08011

ASV50

 1
74451B - BOLT, BATTERY CLAMP
74451-06011

ASV50

 1
Common parts
90080-11205
90179-06206
