ASV50L-CETSKV (2015)

Toyota Camry

Production Apr 2015 - Jun 2017
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1504- )

Click highlighted areas on diagram

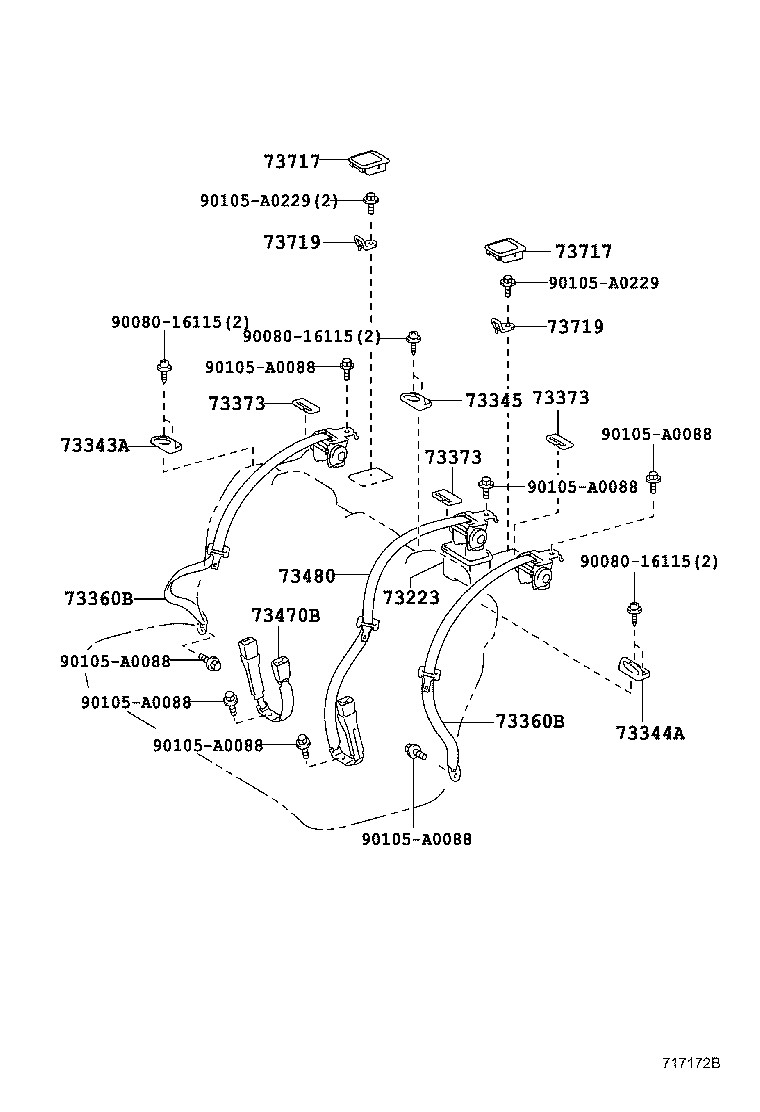

REAR SEAT

diagram 73223 73343A 73344A 73345 73360B 73360B 73373 73373 73373 73470B 73480 73717 73717 73719 73719 9008016115 9008016115 9008016115 90105A0088 90105A0088 90105A0088 90105A0088 90105A0088 90105A0088 90105A0088 90105A0229 90105A0229
Part # Description Qty Price
73223 - COVER, SEAT BELT RETRACTOR
73223-06100

ASV50

AUDIO-AVN PREMIUM SURROUND&8SPEAKER(ME-EAST)

 1
73223-06020

ASV50

 1
73343A - GUIDE, REAR SEAT SHOULDER BELT, RH
73343-33020C0

ASV50

BLACK,TRIM1#,2#

 1
73343-33020C1

ASV50

BLACK,TRIM1#,2#

 1
73344A - GUIDE, REAR SEAT SHOULDER BELT, LH
73344-33020C1

ASV50

BLACK,TRIM1#,2#

 1
73344-33020C0

ASV50

BLACK,TRIM1#,2#

 1
73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER
73344-33020C1

ASV50

BLACK,TRIM1#,2#

 1
73344-33020C0

ASV50

BLACK,TRIM1#,2#

 1
73360B - BELT ASSY, REAR SEAT, OUTER
73360-06301C0

ASV50

BLACK,TRIM1#,2#

 2
73360-06300C0

ASV50

BLACK,TRIM1#,2#

 2
73360B - BELT ASSY, REAR SEAT, OUTER
73360-06301C0

ASV50

BLACK,TRIM1#,2#

 2
73360-06300C0

ASV50

BLACK,TRIM1#,2#

 2
73373 - COVER, REAR SEAT SHOULDER BELT
73373-06020C0

ASV50

BLACK,TRIM1#,2#

 3
73373 - COVER, REAR SEAT SHOULDER BELT
73373-06020C0

ASV50

BLACK,TRIM1#,2#

 3
73373 - COVER, REAR SEAT SHOULDER BELT
73373-06020C0

ASV50

BLACK,TRIM1#,2#

 3
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-06180C0

ASV50

BLACK,TRIM1#,2#

 1
73470-06121C0

ASV50

BLACK,TRIM1#,2#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-06260C0

ASV50

BLACK,TRIM1#,2#

 1
73480-06200C1

ASV50

BLACK,TRIM1#,2#

 1
73480-06261

ASV50

 1
73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR
73717-06040C0

ASV50

BLACK,TRIM1#,2#

 3
73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR
73717-06040C0

ASV50

BLACK,TRIM1#,2#

 3
73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR
73719-06060

ASV50

 3
73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR
73719-06060

ASV50

 3
Common parts
90080-16115
90105-A0088
90105-A0229

(1504- )

Click highlighted areas on diagram

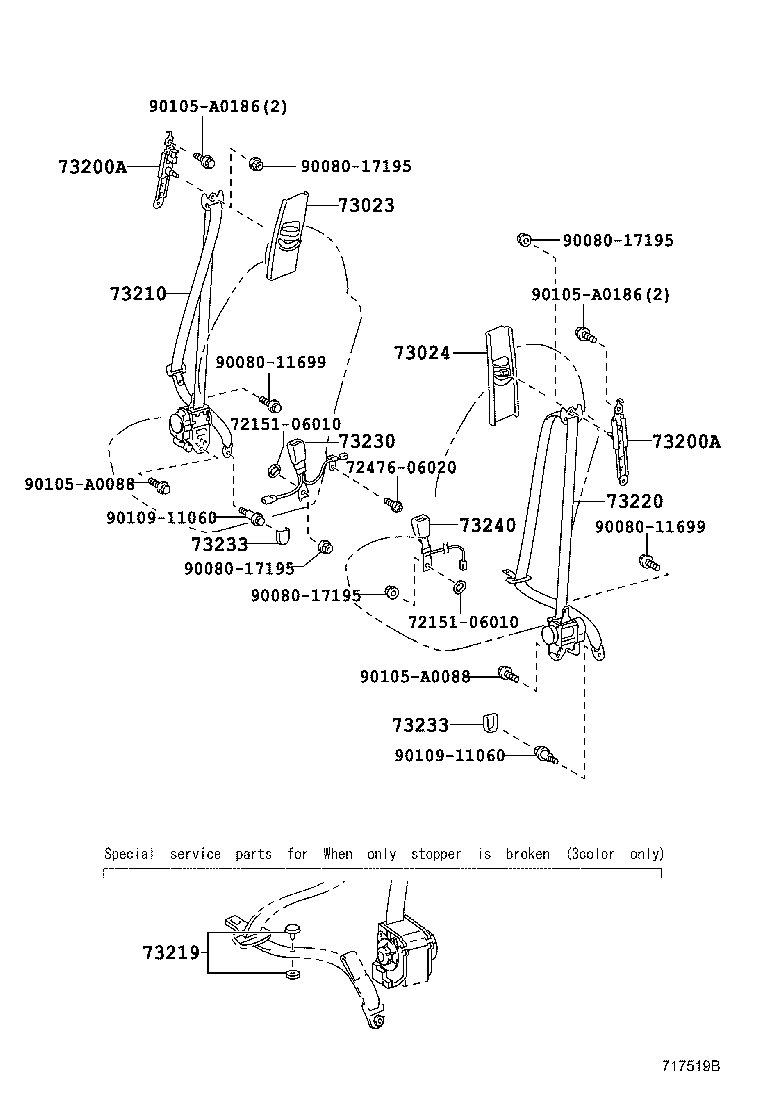

FRONT SEAT

diagram 7215106010 7215106010 7247606020 73023 73024 73200A 73200A 73210 73219 73220 73230 73233 73233 73240 9008011699 9008011699 9008017195 9008017195 9008017195 9008017195 90105A0088 90105A0088 90105A0186 90105A0186 9010911060 9010911060
Part # Description Qty Price
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-06070B0

ASV50

GRAY,TRIM1#,2#

 1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73024-06070B0

ASV50

GRAY,TRIM1#,2#

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-0C020

ASV50

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-0C020

ASV50

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-06342C0

ASV50

BLACK,TRIM1#,2#

 1
73210-06340C0

ASV50

BLACK,TRIM1#,2#

 1
73219 - STOPPER, TONGUE PLATE
73219-02020

ASV50

GRAY

 1
73219-02010

ASV50

BLACK

 1
73219-02030

ASV50

BEIGE

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-06450C0

ASV50

BLACK,TRIM1#,2#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-06700C0

ASV50

BLACK,TRIM1#,2#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-0C010C0

ASV50

BLACK,TRIM1#,2#

 2
73233 - COVER, LAP BELT OUTER ANCHOR
73233-0C010C0

ASV50

BLACK,TRIM1#,2#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-06210C0

ASV50

BLACK,TRIM1#,2#

 1
Common parts
72151-06010
72476-06020
90080-11699
90080-17195
90105-A0088
90105-A0186
90109-11060
