ASV50L-CETSKV (2015)

Toyota Camry

Production Apr 2015 - Jun 2017
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1504- )

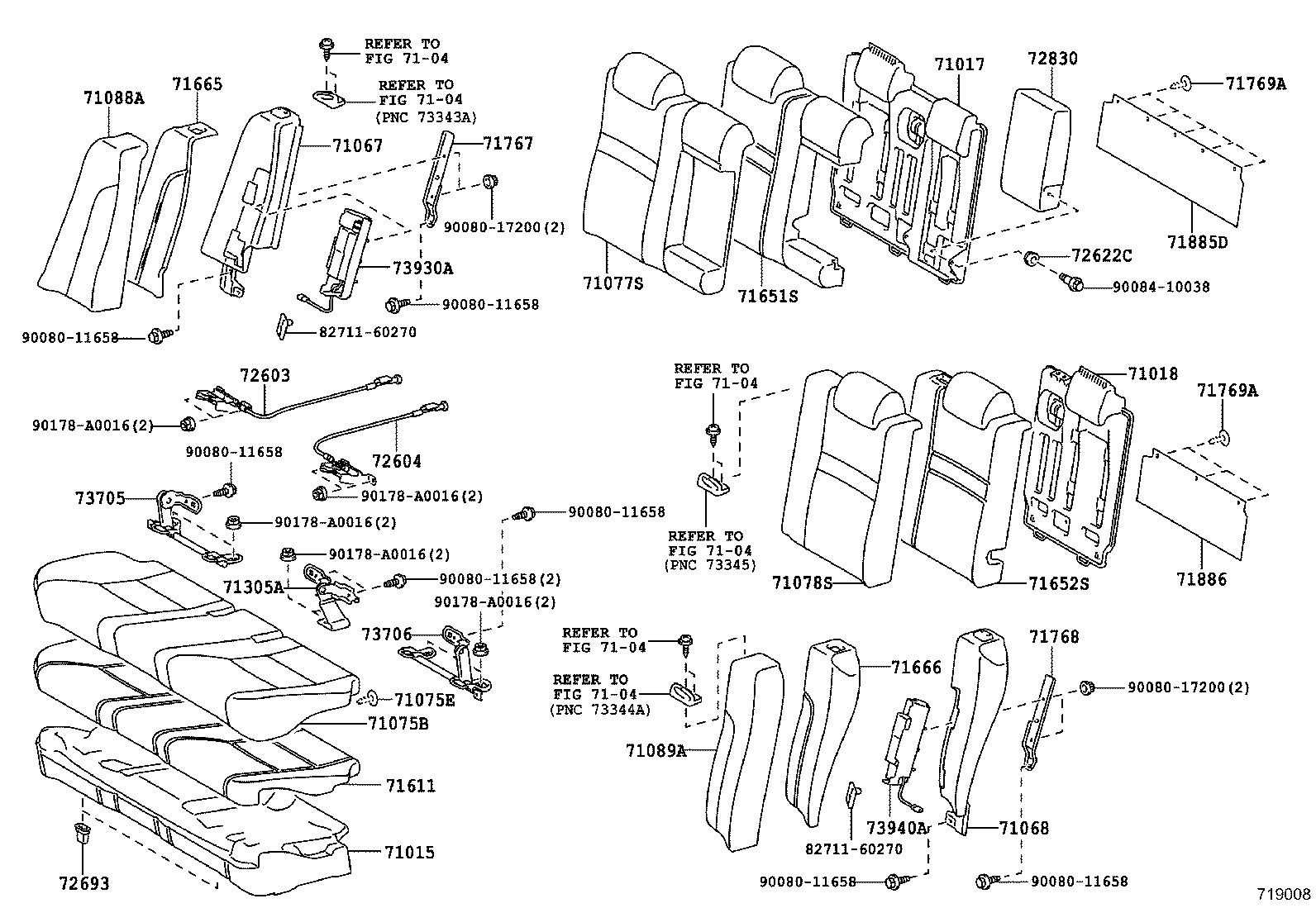

Click highlighted areas on diagram

diagram 71015 71017 71018 7104 7104 7104 7104 7104 7104 71067 71068 71075B 71075E 71077S 71078S 71088A 71089A 71305A 71611 71651S 71652S 71665 71666 71767 71768 71769A 71769A 71885D 71886 72603 72604 72622C 72693 72830 73705 73706 73930A 73940A 8271160270 8271160270 9008011658 9008011658 9008011658 9008011658 9008011658 9008011658 9008011658 9008017200 9008017200 9008410038 90178A0016 90178A0016 90178A0016 90178A0016 90178A0016
Part # Description Qty Price
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-06140

ASV50

 1
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-06170C1

ASV50

BLACK,TRIM1#,2#

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-06120C1

ASV50

BLACK,TRIM1#,2#

 1
71067 - FRAME SUB-ASSY, REAR SIDE SEAT BACK, RH
71067-06030

ASV50

 1
71068 - FRAME SUB-ASSY, REAR SIDE SEAT BACK, LH
71068-06030

ASV50

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-06C51B2

ASV50

GRAY,TRIM1#

 1
71075-06M70C0

ASV50

BLACK,TRIM2#

 1
71075-06C51C2

ASV50

BLACK,TRIM2#

 1
71075-06C71B2

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

 1
71075-06C71C2

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#

 1
71075-06M70B0

ASV50

GRAY,TRIM1#

 1
71075E - CLIP(FOR REAR SEAT)
71769-06010C0

ASV50

BLACK,TRIM1#,2#

 2
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-06E80B3

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

 1
71077-06E80C2

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#

 1
71077-06E81B3

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

 1
71077-06E70C3

ASV50

BLACK,TRIM2#

 1
71077-06E81C2

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#

 1
71077-06S11C0

ASV50

BLACK,TRIM2#

 1
71077-06S11B0

ASV50

GRAY,TRIM1#

 1
71077-06E70B4

ASV50

GRAY,TRIM1#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-06750C3

ASV50

BLACK,TRIM2#

 1
71078-06770B3

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

 1
71078-06770C2

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#

 1
71078-06750B4

ASV50

GRAY,TRIM1#

 1
71078-06F40C0

ASV50

BLACK,TRIM2#

 1
71078-06F40B0

ASV50

GRAY,TRIM1#

 1
71088A - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH
71088-06260C4

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#

 1
71088-06260B6

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

 1
71088-06270C1

ASV50

BLACK,TRIM2#

 1
71088-06270B1

ASV50

GRAY,TRIM1#

 1
71089A - COVER SUB-ASSY, REAR SIDE SEAT BACK, LH
71089-06270C4

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#

 1
71089-06280C1

ASV50

BLACK,TRIM2#

 1
71089-06270B6

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

 1
71089-06280B1

ASV50

GRAY,TRIM1#

 1
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-06060

ASV50

 1
71611 - PAD, REAR SEAT CUSHION
71503-06221

ASV50

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-06340

ASV50

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-06150

ASV50

 1
71665 - PAD, REAR SEAT BACK SIDE, RH
71665-06051

ASV50

 1
71666 - PAD, REAR SEAT BACK SIDE, LH
71666-06061

ASV50

 1
71767 - BRACKET, REAR SIDE SEAT BACK SET, REAR RH
71767-06010

ASV50

 1
71768 - BRACKET, REAR SIDE SEAT BACK SET, REAR LH
71768-06010

ASV50

 1
71769A - CLIP, REAR SEAT BACK BOARD
71769-06010C0

ASV50

BLACK,TRIM1#,2#

 8
71769A - CLIP, REAR SEAT BACK BOARD
71769-06010C0

ASV50

BLACK,TRIM1#,2#

 8
71885D - CARPET, REAR SEAT BACK, RH
71885-06050C1

ASV50

BLACK,TRIM1#,2#

 1
71886 - CARPET, REAR SEAT BACK, LH
71886-06040C1

ASV50

BLACK,TRIM1#,2#

 1
72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH
72630-06040

ASV50

 1
72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH
72640-06040

ASV50

 1
72622C - BUSH, REAR SEAT BACK PROTECTOR SHAFT
72622-0T020

ASV50

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-06030

ASV50

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-06741C2

ASV50

BLACK,TRIM2#

 1
72830-06751C4

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#

 1
72830-06741B0

ASV50

GRAY,TRIM1#

 1
72830-06751B9

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

 1
73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73705-06050

ASV50

 1
73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73706-06050

ASV50

 1
73930A - AIR BAG ASSY, REAR SEAT, RH
73930-06050

ASV50

 1
73940A - AIR BAG ASSY, REAR SEAT, LH
73940-06050

ASV50

 1
Common parts
82711-60270
90080-11658
90080-17200
90084-10038
90178-A0016
Linked diagrams
7104
