ASV50L-CETSKV (2015)

Toyota Camry

Production Apr 2015 - Jun 2017
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1504- )

Click highlighted areas on diagram

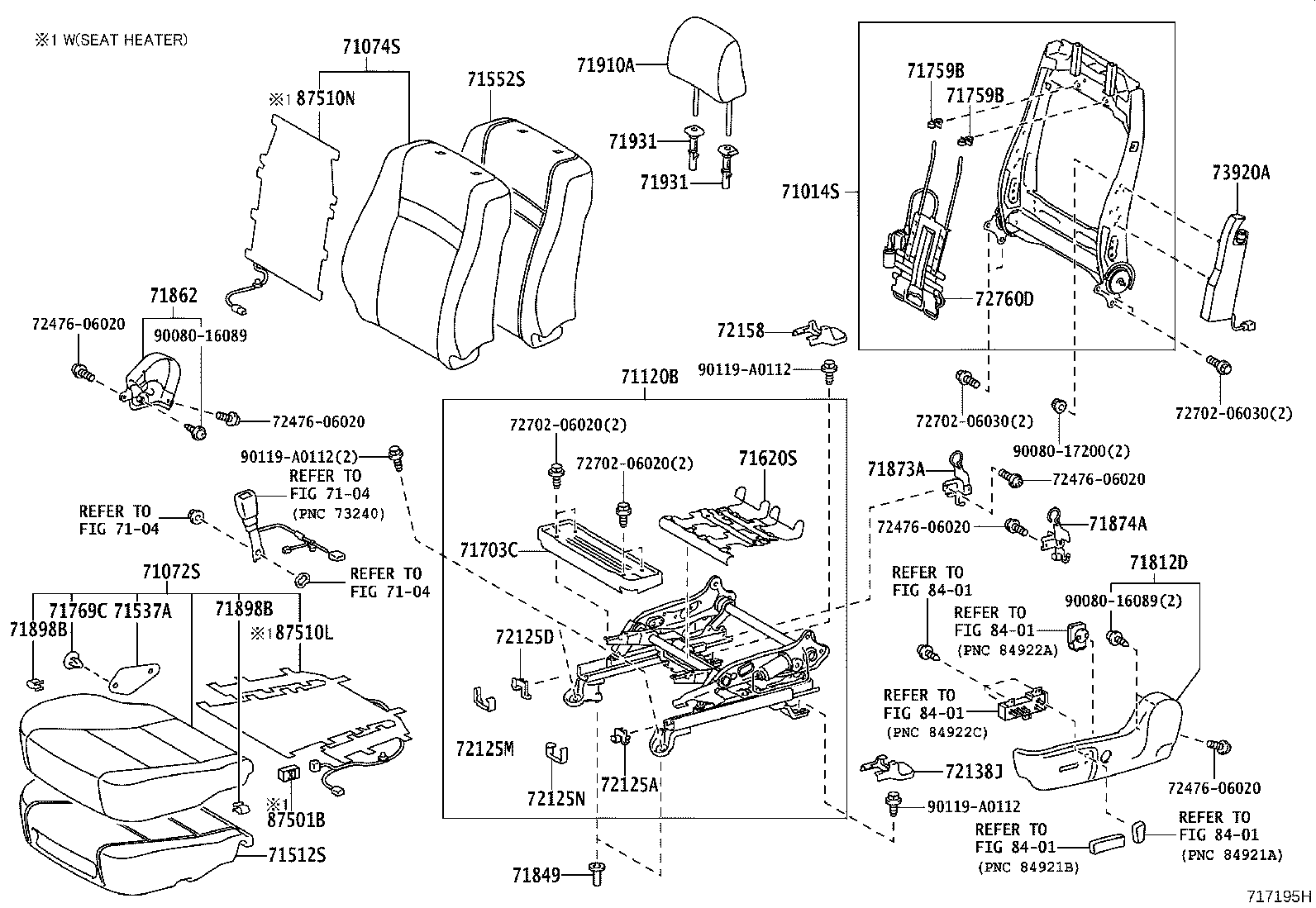

DRIVER SEAT

diagram 71014S 7104 7104 7104 71072S 71074S 71120B 71512S 71537A 71552S 71620S 71703C 71759B 71759B 71769C 71812D 71849 71862 71873A 71874A 71898B 71898B 71910A 71931 71931 72125A 72125D 72125M 72125N 72138J 72158 7247606020 7247606020 7247606020 7247606020 7247606020 7270206020 7270206020 7270206030 7270206030 72760D 73920A 8401 8401 8401 8401 8401 87501B 87510L 87510N 9008016089 9008016089 9008017200 90119A0112 90119A0112 90119A0112
Part # Description Qty Price
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71104-06020

ASV50

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-06C50C1

ASV50

BLACK,TRIM2#

 1
71072-06C50B1

ASV50

GRAY,TRIM1#

 1
71072-06T00B0

ASV50

GRAY,TRIM1#

 1
71072-06T00C0

ASV50

BLACK,TRIM2#

 1
71072-06C60C1

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#

 1
71072-06C60B1

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-06E20B1

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

 1
71074-06E20C1

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#

 1
71074-06E10C1

ASV50

BLACK,TRIM2#

 1
71074-06E10B1

ASV50

GRAY,TRIM1#

 1
71074-06W30C0

ASV50

BLACK,TRIM2#

 1
71074-06W30B0

ASV50

GRAY,TRIM1#

 1
71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH
71120-06170

ASV50

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-06361

ASV50

 1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-06190

ASV50

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-06280

ASV50

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-06370

ASV50

 1
71703C - PANEL SUB-ASSY, FRONT SEAT CUSHION
71703-06010

ASV50

 1
71759B - HOOK, FRONT SEAT BACK
71759-06020

ASV50

 4
71759B - HOOK, FRONT SEAT BACK
71759-06020

ASV50

 4
71769C - CLIP, FRONT SEAT CUSHION COVER
71769-60010C0

ASV50

BLACK,TRIM1#,2#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-06200C0

ASV50

BLACK,TRIM1#,2#

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-0T020

ASV50

 2
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-06140C0

ASV50

BLACK,TRIM1#,2#

 1
71873A - SHIELD, FRONT SEAT CUSHION, LOWER
71806-06010C0

ASV50

BLACK

 1
71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH
71806-06020C0

ASV50

BLACK

 1
71898B - HOOK, FRONT SEAT COVER
71898-07050

ASV50

 4
71898B - HOOK, FRONT SEAT COVER
71898-07050

ASV50

 4
71910A - HEADREST ASSY, FRONT SEAT
71910-06610

ASV50

 2
71910-06610C1

ASV50

BLACK,TRIM2#

 2
71910-06610C1

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71910-06611B1

ASV50

GRAY,TRIM1#

 2
71910-06611C1

ASV50

BLACK,TRIM2#

 2
71910-06610B2

ASV50

GRAY,TRIM1#

 2
71910-06610B2

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

 2
71910-06611B0

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

 2
71910-06611C0

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-06040C0

ASV50

W/O(LOCK),BLACK,TRIM1#,2#,(L)

 1
71930-06050C0

ASV50

W(LOCK),BLACK,TRIM1#,2#,(L)

 1
71930-47020C0

ASV50

W(LOCK),BLACK,TRIM1#,2#,(J)

 1
71931-47020C0

ASV50

W/O(LOCK),BLACK,TRIM1#,2#,(J)

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-06040C0

ASV50

W/O(LOCK),BLACK,TRIM1#,2#,(L)

 1
71930-06050C0

ASV50

W(LOCK),BLACK,TRIM1#,2#,(L)

 1
71930-47020C0

ASV50

W(LOCK),BLACK,TRIM1#,2#,(J)

 1
71931-47020C0

ASV50

W/O(LOCK),BLACK,TRIM1#,2#,(J)

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-06010

ASV50

 3
72125D - COVER, SEAT TRACK, UPPER REAR NO.2
72125-06020

ASV50

 3
72125M - COVER, SEAT TRACK, UPPER NO.3
72125-06030

ASV50

 2
72125N - COVER, SEAT TRACK, UPPER NO.4
72125-06040

ASV50

 2
72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER
72138-06100C1

ASV50

BLACK,TRIM1#,2#

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-06110C1

ASV50

BLACK,TRIM1#,2#

 1
72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH
72760-06060

ASV50

 1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-06170

ASV50

 1
87501B - CONTROL SUB-ASSY, SEAT HEATER, LH
87501-06010

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE

 1
87510L - HEATER ASSY, FRONT SEAT CUSHION, LH
87510-06100

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE

 1
87510N - HEATER ASSY, FRONT SEAT BACK, LH
87530-06071

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE

 1
Common parts
72476-06020
72702-06020
72702-06030
90080-16089
90080-17200
90119-A0112
Linked diagrams
7104
8401

(1504- )

Click highlighted areas on diagram

PASSENGER SEAT W(POWER SEAT)

diagram 71013S 7104 7104 7104 7104 71071S 71073S 71110A 71511S 71551S 71610S 71630S 71759B 71759B 71811D 71848A 71861 71873 71874 71898B 71898B 71910A 71931 71931 72125A 72125A 72125D 72125D 72125M 72125N 72137J 72157A 7247606020 7247606020 7247606020 7270206030 7270206030 73910A 8401 8401 8401 8401 87501A 87510K 87510M 9008016089 9008016089 9008017200 90119A0112 90119A0112 90119A0112
Part # Description Qty Price
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71103-06010

ASV50

 1
71103-06020

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-06C60C2

ASV50

BLACK,TRIM2#

 1
71071-06C60B2

ASV50

GRAY,TRIM1#

 1
71071-06S90C0

ASV50

BLACK,TRIM2#

 1
71071-06C70C1

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#

 1
71071-06S90B0

ASV50

GRAY,TRIM1#

 1
71071-06C70B1

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-06F50C1

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#

 1
71073-06F40B1

ASV50

GRAY,TRIM1#

 1
71073-06Z70B0

ASV50

GRAY,TRIM1#

 1
71073-06F40C1

ASV50

BLACK,TRIM2#

 1
71073-06Z70C0

ASV50

BLACK,TRIM2#

 1
71073-06F50B1

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

 1
71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71110-06150

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE

 1
71110-06140

ASV50

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-06471

ASV50

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-06360

ASV50

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-06380

ASV50

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-06380

ASV50

 1
71759B - HOOK, FRONT SEAT BACK
71759-06020

ASV50

 4
71759B - HOOK, FRONT SEAT BACK
71759-06020

ASV50

 4
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-06190C0

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1#,2#

 1
71811-06180C0

ASV50

BLACK,TRIM1#,2#

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-0T020

ASV50

 2
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-06120C0

ASV50

BLACK,TRIM1#,2#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-06300C0

ASV50

BLACK

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-06330C0

ASV50

BLACK

 1
71898B - HOOK, FRONT SEAT COVER
71898-07050

ASV50

 4
71898B - HOOK, FRONT SEAT COVER
71898-07050

ASV50

 4
71910A - HEADREST ASSY, FRONT SEAT
71910-06610

ASV50

 2
71910-06610C1

ASV50

BLACK,TRIM2#

 2
71910-06610C1

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71910-06611B1

ASV50

GRAY,TRIM1#

 2
71910-06611C1

ASV50

BLACK,TRIM2#

 2
71910-06610B2

ASV50

GRAY,TRIM1#

 2
71910-06610B2

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

 2
71910-06611B0

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

 2
71910-06611C0

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-06040C0

ASV50

W/O(LOCK),BLACK,TRIM1#,2#,(L)

 1
71930-06050C0

ASV50

W(LOCK),BLACK,TRIM1#,2#,(L)

 1
71930-47020C0

ASV50

W(LOCK),BLACK,TRIM1#,2#,(J)

 1
71931-47020C0

ASV50

W/O(LOCK),BLACK,TRIM1#,2#,(J)

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-06040C0

ASV50

W/O(LOCK),BLACK,TRIM1#,2#,(L)

 1
71930-06050C0

ASV50

W(LOCK),BLACK,TRIM1#,2#,(L)

 1
71930-47020C0

ASV50

W(LOCK),BLACK,TRIM1#,2#,(J)

 1
71931-47020C0

ASV50

W/O(LOCK),BLACK,TRIM1#,2#,(J)

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-06010

ASV50

 3
72125A - COVER, SEAT TRACK, UPPER REAR
72125-06010

ASV50

 3
72125D - COVER, SEAT TRACK, UPPER REAR NO.2
72125-06020

ASV50

 3
72125D - COVER, SEAT TRACK, UPPER REAR NO.2
72125-06020

ASV50

 3
72125M - COVER, SEAT TRACK, UPPER NO.3
72125-06030

ASV50

 2
72125N - COVER, SEAT TRACK, UPPER NO.4
72125-06040

ASV50

 2
72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER
72137-06110C1

ASV50

BLACK,TRIM1#,2#

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-06110C1

ASV50

BLACK,TRIM1#,2#

 1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-06160

ASV50

 1
87501A - CONTROL SUB-ASSY, SEAT HEATER, RH
87501-06010

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE

 1
87510K - HEATER ASSY, FRONT SEAT CUSHION, RH
87510-06100

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE

 1
87510M - HEATER ASSY, FRONT SEAT BACK, RH
87530-06071

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE

 1
Common parts
72476-06020
72702-06030
90080-16089
90080-17200
90119-A0112
Linked diagrams
7104
8401

(1504- )

Click highlighted areas on diagram

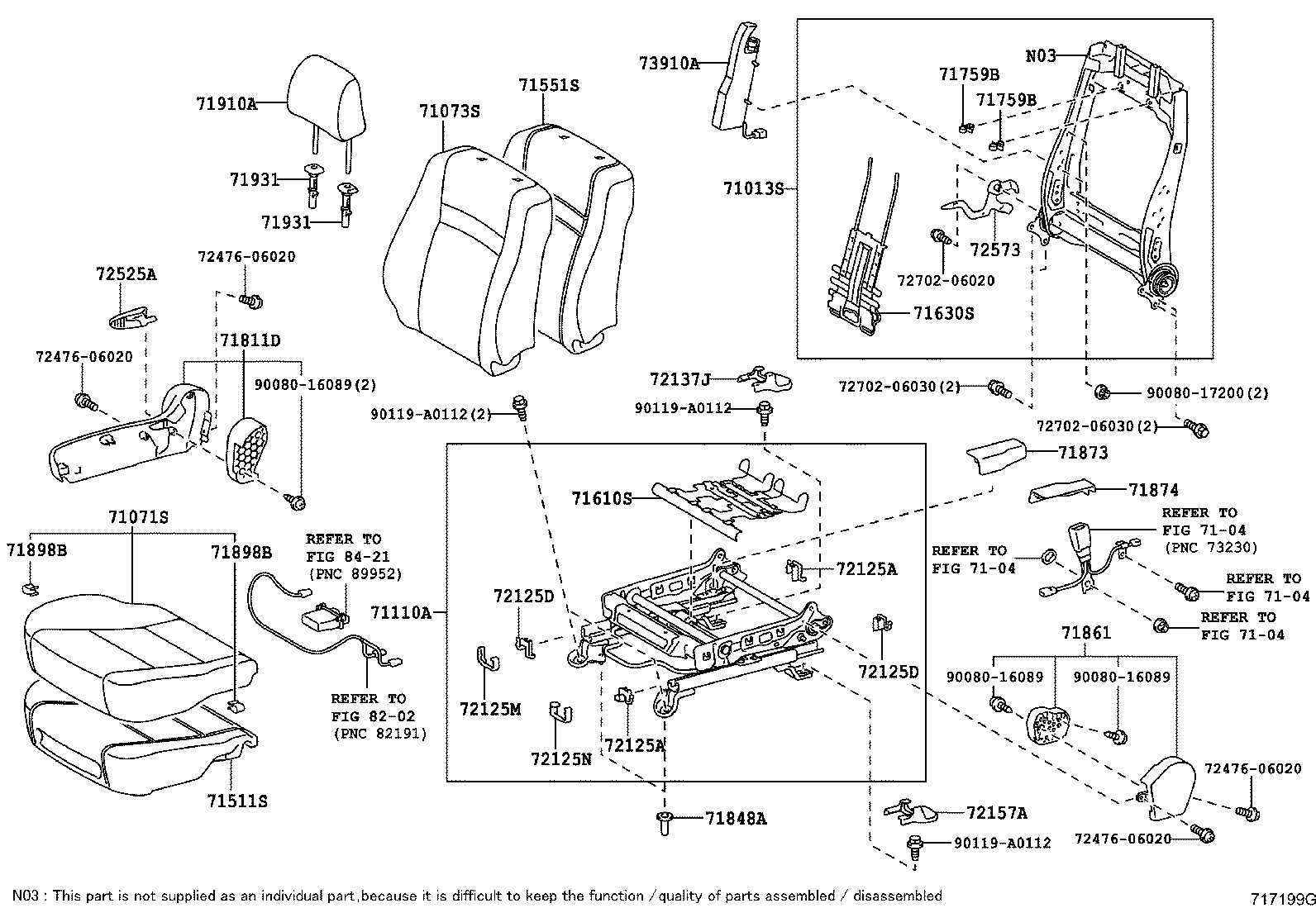

PASSENGER SEAT

diagram 71013S 7104 7104 7104 7104 71071S 71073S 71110A 71511S 71551S 71610S 71630S 71759B 71759B 71811D 71848A 71861 71873 71874 71898B 71898B 71910A 71931 71931 72125A 72125A 72125D 72125D 72125M 72125N 72137J 72157A 7247606020 7247606020 7247606020 7247606020 72525A 72573 7270206020 7270206030 7270206030 73910A 8202 8421 9008016089 9008016089 9008016089 9008017200 90119A0112 90119A0112 90119A0112
Part # Description Qty Price
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71103-06010

ASV50

 1
71103-06020

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-06C60C2

ASV50

BLACK,TRIM2#

 1
71071-06C60B2

ASV50

GRAY,TRIM1#

 1
71071-06S90C0

ASV50

BLACK,TRIM2#

 1
71071-06C70C1

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#

 1
71071-06S90B0

ASV50

GRAY,TRIM1#

 1
71071-06C70B1

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-06F50C1

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#

 1
71073-06F40B1

ASV50

GRAY,TRIM1#

 1
71073-06Z70B0

ASV50

GRAY,TRIM1#

 1
71073-06F40C1

ASV50

BLACK,TRIM2#

 1
71073-06Z70C0

ASV50

BLACK,TRIM2#

 1
71073-06F50B1

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

 1
71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71110-06150

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE

 1
71110-06140

ASV50

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-06471

ASV50

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-06360

ASV50

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-06380

ASV50

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-06380

ASV50

 1
71759B - HOOK, FRONT SEAT BACK
71759-06020

ASV50

 4
71759B - HOOK, FRONT SEAT BACK
71759-06020

ASV50

 4
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-06190C0

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1#,2#

 1
71811-06180C0

ASV50

BLACK,TRIM1#,2#

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-0T020

ASV50

 2
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-06120C0

ASV50

BLACK,TRIM1#,2#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-06300C0

ASV50

BLACK

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-06330C0

ASV50

BLACK

 1
71898B - HOOK, FRONT SEAT COVER
71898-07050

ASV50

 4
71898B - HOOK, FRONT SEAT COVER
71898-07050

ASV50

 4
71910A - HEADREST ASSY, FRONT SEAT
71910-06610

ASV50

 2
71910-06610C1

ASV50

BLACK,TRIM2#

 2
71910-06610C1

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71910-06611B1

ASV50

GRAY,TRIM1#

 2
71910-06611C1

ASV50

BLACK,TRIM2#

 2
71910-06610B2

ASV50

GRAY,TRIM1#

 2
71910-06610B2

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

 2
71910-06611B0

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

 2
71910-06611C0

ASV50

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-06040C0

ASV50

W/O(LOCK),BLACK,TRIM1#,2#,(L)

 1
71930-06050C0

ASV50

W(LOCK),BLACK,TRIM1#,2#,(L)

 1
71930-47020C0

ASV50

W(LOCK),BLACK,TRIM1#,2#,(J)

 1
71931-47020C0

ASV50

W/O(LOCK),BLACK,TRIM1#,2#,(J)

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-06040C0

ASV50

W/O(LOCK),BLACK,TRIM1#,2#,(L)

 1
71930-06050C0

ASV50

W(LOCK),BLACK,TRIM1#,2#,(L)

 1
71930-47020C0

ASV50

W(LOCK),BLACK,TRIM1#,2#,(J)

 1
71931-47020C0

ASV50

W/O(LOCK),BLACK,TRIM1#,2#,(J)

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-06010

ASV50

 3
72125A - COVER, SEAT TRACK, UPPER REAR
72125-06010

ASV50

 3
72125D - COVER, SEAT TRACK, UPPER REAR NO.2
72125-06020

ASV50

 3
72125D - COVER, SEAT TRACK, UPPER REAR NO.2
72125-06020

ASV50

 3
72125M - COVER, SEAT TRACK, UPPER NO.3
72125-06030

ASV50

 2
72125N - COVER, SEAT TRACK, UPPER NO.4
72125-06040

ASV50

 2
72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER
72137-06110C1

ASV50

BLACK,TRIM1#,2#

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-06110C1

ASV50

BLACK,TRIM1#,2#

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-06080C0

ASV50

BLACK,TRIM1#,2#

 1
72573 - LEVER, RECLINING CONTROL, RH
72573-06010

ASV50

 1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-06160

ASV50

 1
Common parts
72476-06020
72702-06020
72702-06030
90080-16089
90080-17200
90119-A0112
Linked diagrams
7104
8202
8421
