ASV50L-CETSKV (2015)
Toyota Camry
Production
Apr 2015
-
Jun 2017
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1504- )

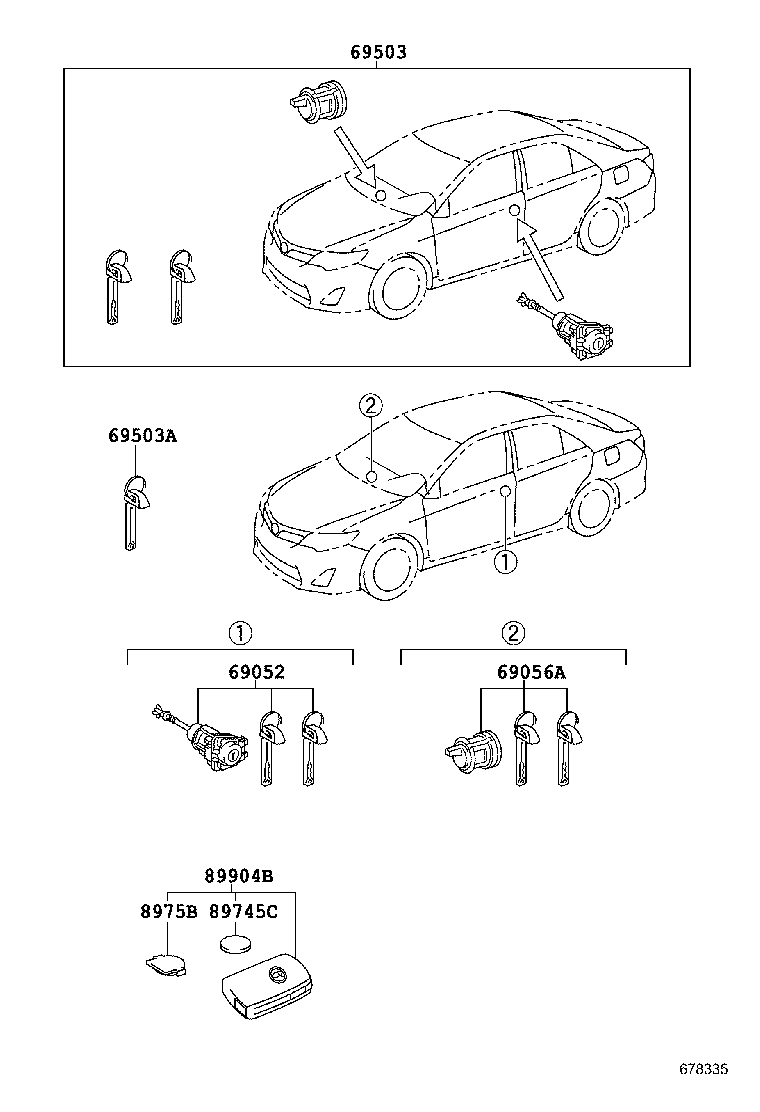

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-06140 |
ASV50 |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-06160 |
ASV50 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-06690 |
ASV50 |
1 | ||
| 69503A - KEY, BLANK | ||||
| 69515-06030 |
ASV50 MASTER KEY,W(*68) |
1 | ||
| 89745C - BATTERY, TRANSMITTER | ||||
| 89745-50020 |
ASV50 |
1 | ||
| 8975B - COVER, TRANSMITTER BATTERY HOUSING | ||||
| 8975B-33010 |
ASV50 |
2 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 89904-33400 |
ASV50 QATAR PACKAGE |
2 | ||
| 89904-33460 |
ASV50 |
2 | ||
