ASV50L-CETSKV (2015)

Toyota Camry

Production Apr 2015 - Jun 2017
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1504- )

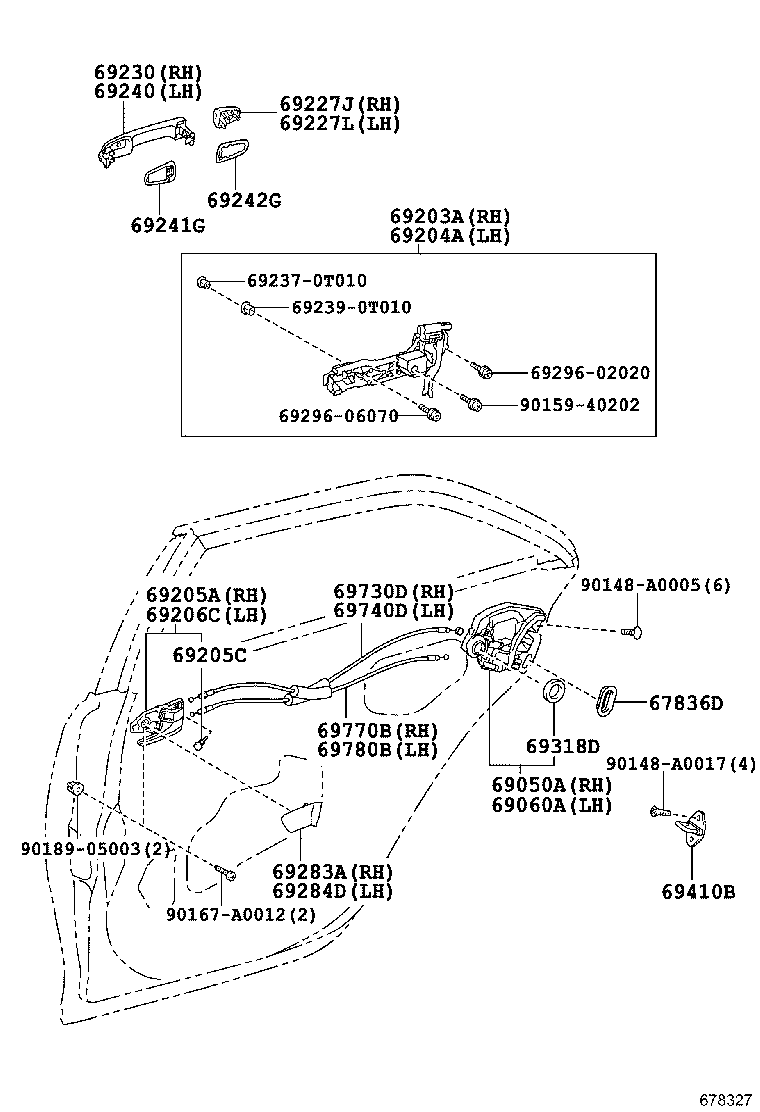

Click highlighted areas on diagram

diagram 67836D 69050A 69060A 69203A 69204A 69205A 69205C 69206C 69227J 69227L 69230 692370T010 692390T010 69240 69241G 69242G 69283A 69284D 6929602020 6929606070 69318D 69410B 69730D 69740D 69770B 69780B 90148A0005 90148A0017 9015940202 90167A0012 9018905003
Part # Description Qty Price
67836D - COVER, REAR DOOR LOCK CHILD PROTECTION
67836-12040

ASV50

 2
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-06100

ASV50

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-06100

ASV50

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-06110

ASV50

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-06110

ASV50

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-0E030C0

ASV50

BLACK,TRIM15,2#

 1
69205-0E030B0

ASV50

GRAY,TRIM15

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90080-54005

ASV50

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-0E030B0

ASV50

GRAY,TRIM15

 1
69206-0E030C0

ASV50

BLACK,TRIM15,2#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69250-06020A0

ASV50

SUPER WHITE 2,040

 1
69250-06020C0

ASV50

ATTITUDE BLACK MC.,218

 1
69250-06020A1

ASV50

WHITE PEARL CS.,070

 1
69250-06020B5

ASV50

SILVER ME.,1J9

 1
69250-06020J2

ASV50

DK.BLUE M.M.,8W7

 1
69250-06020F0

ASV50

LT.YELLOW M.M.,5B2

 1
69250-06020B2

ASV50

DK. STEEL MC.,1H2

 1
69250-06020J4

ASV50

BLUE ME.,8T7

 1
69250-06020B4

ASV50

GRAY M.M.,1H1

 1
69250-06020D1

ASV50

RED MC.,3T3

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69250-06020J2

ASV50

DK.BLUE M.M.,8W7

 1
69250-06020B2

ASV50

DK. STEEL MC.,1H2

 1
69250-06020B5

ASV50

SILVER ME.,1J9

 1
69250-06020C0

ASV50

ATTITUDE BLACK MC.,218

 1
69250-06020D1

ASV50

RED MC.,3T3

 1
69250-06020A1

ASV50

WHITE PEARL CS.,070

 1
69250-06020B4

ASV50

GRAY M.M.,1H1

 1
69250-06020A0

ASV50

SUPER WHITE 2,040

 1
69250-06020F0

ASV50

LT.YELLOW M.M.,5B2

 1
69250-06020J4

ASV50

BLUE ME.,8T7

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-06090B5

ASV50

GRAY M.M.,1H1

 1
69211-06090A1

ASV50

WHITE PEARL CS.,070

 1
69211-06090B2

ASV50

DK. STEEL MC.,1H2

 1
69211-06090A0

ASV50

SUPER WHITE 2,040

 1
69211-06090D2

ASV50

RED MC.,3T3

 1
69211-06090J2

ASV50

DK.BLUE M.M.,8W7

 1
69211-06090J5

ASV50

BLUE ME.,8T7

 1
69211-06090B6

ASV50

SILVER ME.,1J9

 1
69211-06090F0

ASV50

LT.YELLOW M.M.,5B2

 1
69211-06090C0

ASV50

ATTITUDE BLACK MC.,218

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-06090A0

ASV50

SUPER WHITE 2,040

 1
69211-06090B2

ASV50

DK. STEEL MC.,1H2

 1
69211-06090B6

ASV50

SILVER ME.,1J9

 1
69211-06090J2

ASV50

DK.BLUE M.M.,8W7

 1
69211-06090D2

ASV50

RED MC.,3T3

 1
69211-06090A1

ASV50

WHITE PEARL CS.,070

 1
69211-06090F0

ASV50

LT.YELLOW M.M.,5B2

 1
69211-06090B5

ASV50

GRAY M.M.,1H1

 1
69211-06090C0

ASV50

ATTITUDE BLACK MC.,218

 1
69211-06090J5

ASV50

BLUE ME.,8T7

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-06100

ASV50

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-06100

ASV50

 2
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-08010B1

ASV50

GRAY,TRIM15

 1
69283-08010C0

ASV50

BLACK,TRIM15,2#

 1
69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69284-08010C0

ASV50

BLACK,TRIM15,2#

 1
69284-08010B1

ASV50

GRAY,TRIM15

 1
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-AA010

ASV50

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-02020

ASV50

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-06090

ASV50

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-06090

ASV50

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-06080

ASV50

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-06080

ASV50

 1
Common parts
69237-0T010
69239-0T010
69296-02020
69296-06070
90148-A0005
90148-A0017
90159-40202
90167-A0012
90189-05003
