ASV50L-CETSKV (2015)
Toyota Camry

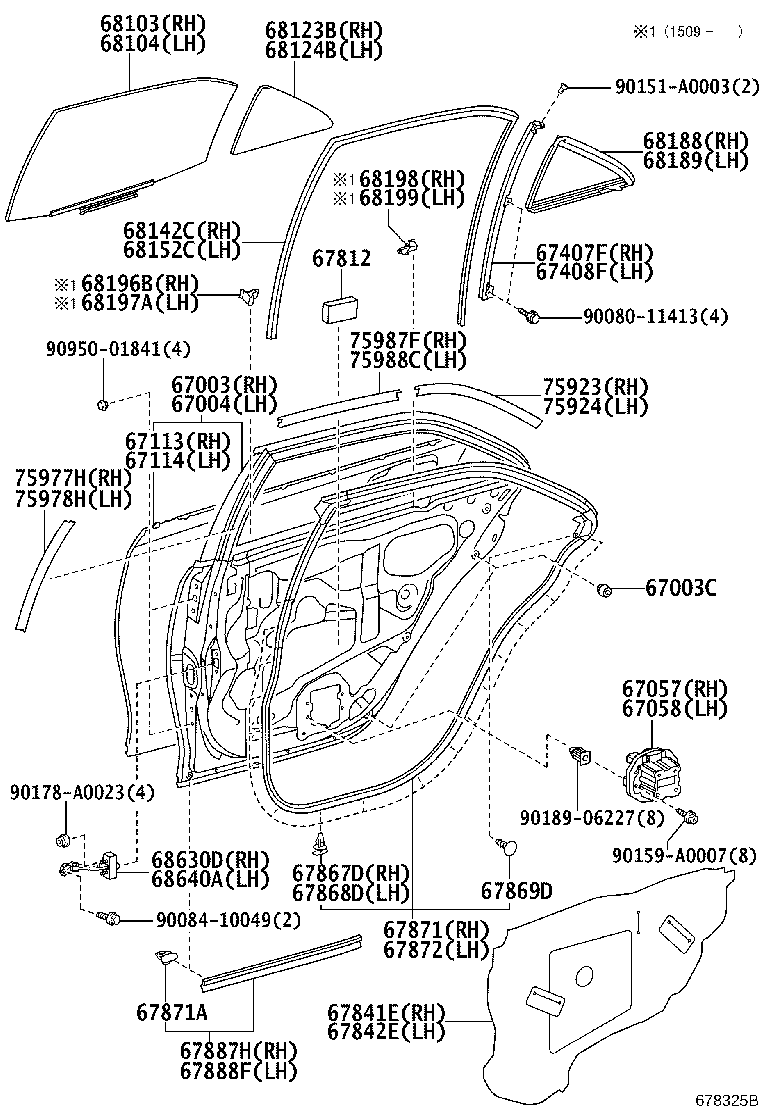

ILLUST NO. 1 OF 2(1504- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-06240 |
ASV50 |
1 | ||
| 67003-06241 |
ASV50 |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90084-54012 |
ASV50 (L) |
4 | ||
| 90541-09124 |
ASV50 (J) |
4 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-06241 |
ASV50 |
1 | ||
| 67004-06240 |
ASV50 |
1 | ||
| 67057 - REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, RH | ||||
| 67057-06040 |
ASV50 |
1 | ||
| 67058 - REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, LH | ||||
| 67057-06040 |
ASV50 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-06150 |
ASV50 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-06150 |
ASV50 |
1 | ||
| 67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH | ||||
| 67407-06110 |
ASV50 |
1 | ||
| 67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH | ||||
| 67408-06110 |
ASV50 |
1 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67811-AA040 |
ASV50 |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-06190 |
ASV50 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-06190 |
ASV50 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ASV50 |
17 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ASV50 |
17 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 67868-30030 |
ASV50 |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-06150 |
ASV50 |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67867-12150 |
ASV50 |
10 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-06150 |
ASV50 |
1 | ||
| 67887H - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-06080 |
ASV50 |
1 | ||
| 67888F - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-06070 |
ASV50 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-06260 |
ASV50 *HSEAT,T=4.0,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-06260 |
ASV50 *HSEAT,T=4.0,GREEN |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-06220 |
ASV50 *TEM,T=3.5,GREEN |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-06220 |
ASV50 *TEM,T=3.5,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-06140 |
ASV50 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-06140 |
ASV50 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-06130 |
ASV50 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-06130 |
ASV50 |
1 | ||
| 68196B - SEAL, REAR DOOR BELT, FRONT RH | ||||
| 68196-06010 |
ASV50 |
1 | ||
| 68197A - SEAL, REAR DOOR BELT, FRONT LH | ||||
| 68197-06010 |
ASV50 |
1 | ||
| 68198 - SEAL, REAR DOOR BELT, REAR RH | ||||
| 68198-06010 |
ASV50 |
1 | ||
| 68199 - SEAL, REAR DOOR BELT, REAR LH | ||||
| 68199-06010 |
ASV50 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-06082 |
ASV50 |
1 | ||
| 68630-06083 |
ASV50 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-06082 |
ASV50 |
1 | ||
| 68630-06083 |
ASV50 |
1 | ||
| 75923 - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-06010 |
ASV50 |
1 | ||
| 75924 - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-06010 |
ASV50 |
1 | ||
| 75977H - STRIPE, REAR DOOR OUTSIDE, LOWER RH | ||||
| 75977-06050 |
ASV50 |
1 | ||
| 75978H - STRIPE, REAR DOOR OUTSIDE, LOWER LH | ||||
| 75978-06050 |
ASV50 |
1 | ||
| 75987F - STRIPE, REAR DOOR, OUTSIDE, RH | ||||
| 75987-06140 |
ASV50 |
1 | ||
| 75988C - STRIPE, REAR DOOR, OUTSIDE LH | ||||
| 75988-06140 |
ASV50 |
1 | ||
| Common parts | ||||
| 90080-11413 | ||||
| 90084-10049 | ||||
| 90151-A0003 | ||||
| 90159-A0007 | ||||
| 90178-A0023 | ||||
| 90189-06227 | ||||
| 90950-01841 | ||||

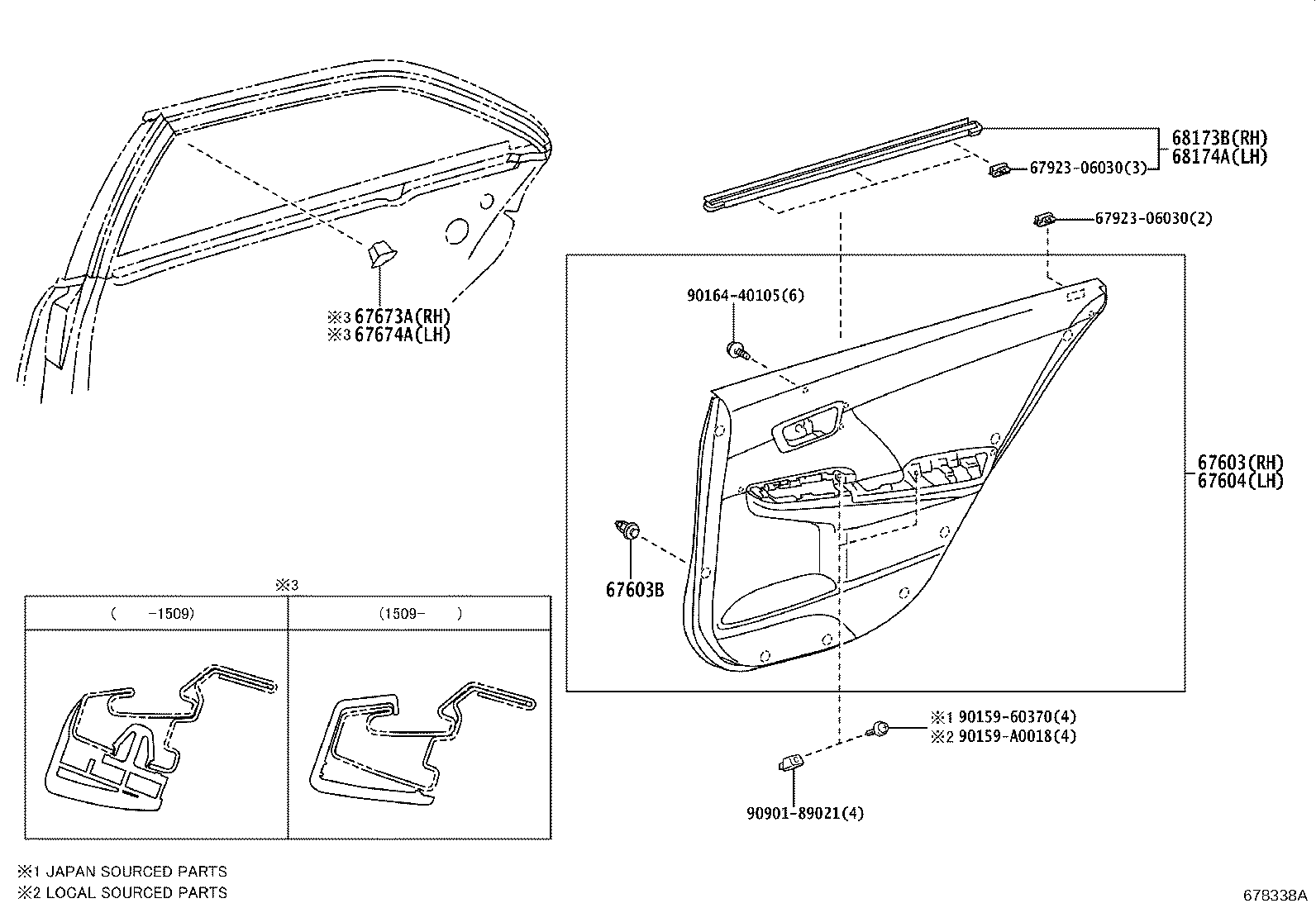

ILLUST NO. 2 OF 2(1504- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-06C61B3 |
ASV50 GRAY,TRIM1# |
1 | ||
| 67630-06C62B3 |
ASV50 GRAY,TRIM1# |
1 | ||
| 67630-06F81C3 |
ASV50 *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 67630-06C61C3 |
ASV50 BLACK,TRIM2# |
1 | ||
| 67630-06F82B3 |
ASV50 *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 67630-06C62C3 |
ASV50 BLACK,TRIM2# |
1 | ||
| 67630-06F81B3 |
ASV50 *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 67630-06F82C3 |
ASV50 *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 67773-0E020 |
ASV50 |
16 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-06C61B3 |
ASV50 GRAY,TRIM1# |
1 | ||
| 67640-06F71B3 |
ASV50 *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 67640-06C62B3 |
ASV50 GRAY,TRIM1# |
1 | ||
| 67640-06F72B3 |
ASV50 *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1# |
1 | ||
| 67640-06F72C3 |
ASV50 *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 67640-06C61C3 |
ASV50 BLACK,TRIM2# |
1 | ||
| 67640-06C62C3 |
ASV50 BLACK,TRIM2# |
1 | ||
| 67640-06F71C3 |
ASV50 *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-06070 |
ASV50 |
1 | ||
| 67673-06220 |
ASV50 |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67673-06220 |
ASV50 |
1 | ||
| 67674-06070 |
ASV50 |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-06140 |
ASV50 |
1 | ||
| 68173-06141 |
ASV50 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-06141 |
ASV50 |
1 | ||
| 68174-06140 |
ASV50 |
1 | ||
| Common parts | ||||
| 67923-06030 | ||||
| 90159-60370 | ||||
| 90159-A0018 | ||||
| 90164-40105 | ||||
| 90901-89021 | ||||
