ASV50L-CETSKV (2015)
Toyota Camry
Production
Apr 2015
-
Jun 2017
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1504- )

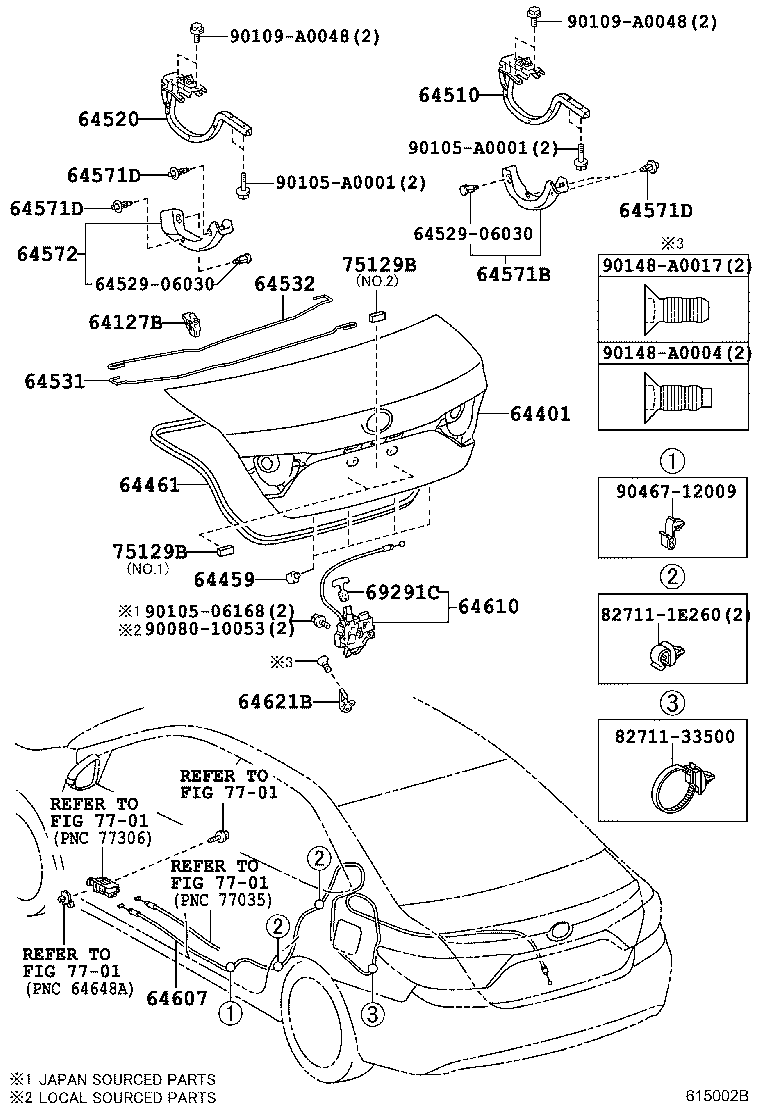

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR | ||||
| 64127-06110 |
ASV50 |
1 | ||
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-06A70 |
ASV50 REAR SPOILER-WITH |
1 | ||
| 64401-06A80 |
ASV50 |
1 | ||
| 64459 - CUSHION, LUGGAGE COMPARTMENT DOOR | ||||
| 90084-54011 |
ASV50 (L) |
4 | ||
| 90541-09116 |
ASV50 (J) |
4 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-06180 |
ASV50 |
1 | ||
| 64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-06220 |
ASV50 |
1 | ||
| 64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64520-06030 |
ASV50 |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-06360 |
ASV50 |
1 | ||
| 64531-06370 |
ASV50 REAR SPOILER-WITH |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-06380 |
ASV50 REAR SPOILER-WITH |
1 | ||
| 64532-06370 |
ASV50 |
1 | ||
| 64571B - COVER, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 82817-06150 |
ASV50 |
1 | ||
| 64571D - CLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER) | ||||
| 90467-A0016C0 |
ASV50 BLACK |
4 | ||
| 64571D - CLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER) | ||||
| 90467-A0016C0 |
ASV50 BLACK |
4 | ||
| 64571D - CLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER) | ||||
| 90467-A0016C0 |
ASV50 BLACK |
4 | ||
| 64572 - COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 82818-06020 |
ASV50 |
1 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-06190 |
ASV50 |
1 | ||
| 64607-06191 |
ASV50 |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64600-06041 |
ASV50 |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-06030 |
ASV50 |
1 | ||
| 69291C - HANDLE, LUGGAGE COMPARTMENT DOOR, INSIDE | ||||
| 69291-33020 |
ASV50 |
1 | ||
| 75129B - CUSHION, REAR LICENCE PLATE | ||||
| 75129-02020 |
ASV50 NO.2 |
1 | ||
| 75129-AC010 |
ASV50 NO.1 |
2 | ||
| 75129B - CUSHION, REAR LICENCE PLATE | ||||
| 75129-02020 |
ASV50 NO.2 |
1 | ||
| 75129-AC010 |
ASV50 NO.1 |
2 | ||
| Common parts | ||||
| 64529-06030 | ||||
| 82711-1E260 | ||||
| 82711-33500 | ||||
| 90080-10053 | ||||
| 90105-06168 | ||||
| 90105-A0001 | ||||
| 90109-A0048 | ||||
| 90148-A0004 | ||||
| 90148-A0017 | ||||
| 90467-12009 | ||||
| Linked diagrams | ||||
| 7701 | ||||
