ASV50L-CETSKV (2015)
Toyota Camry
Production
Apr 2015
-
Jun 2017
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1504- )

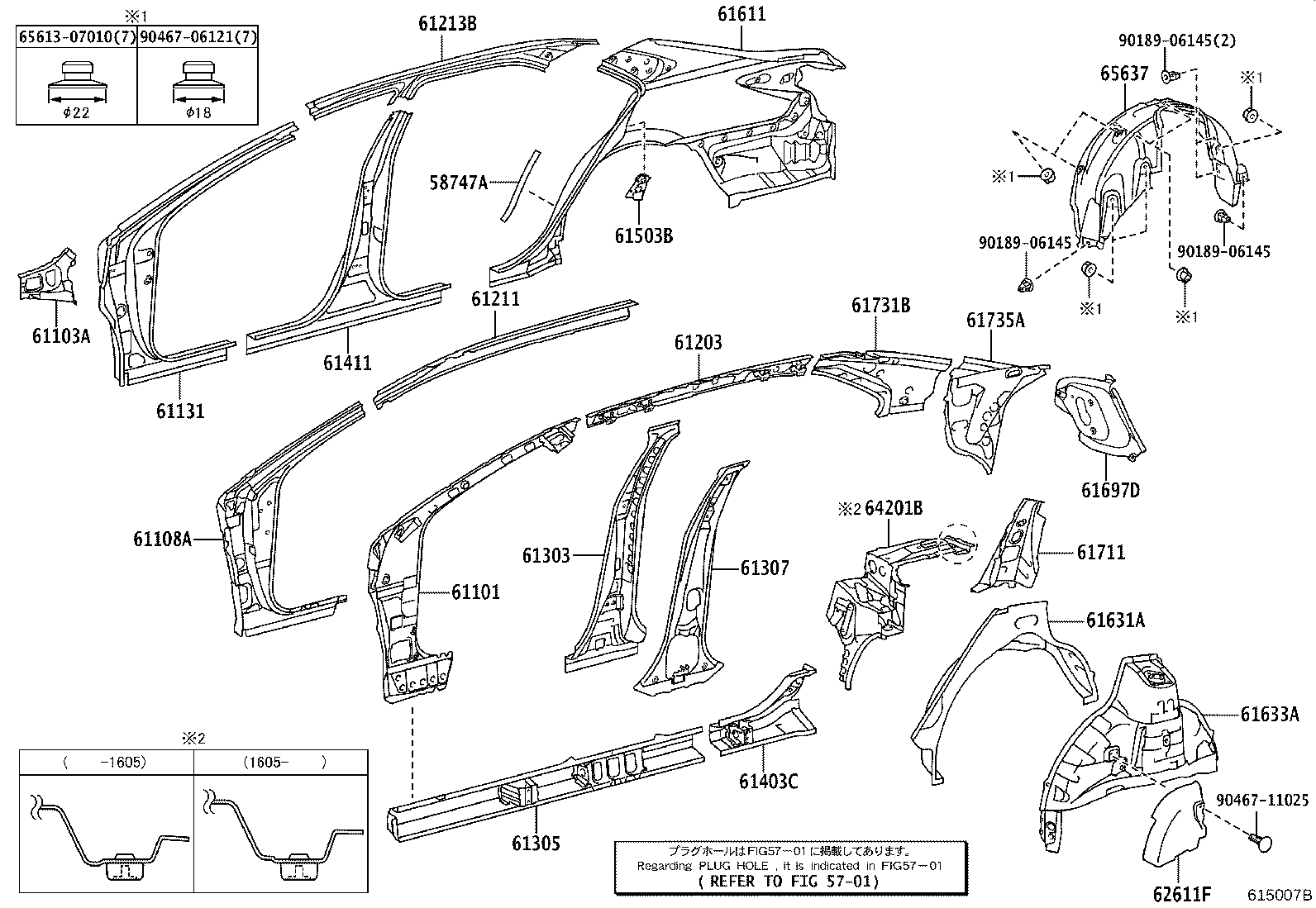

Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58747A - PROTECTOR, QUARTER PANEL, REAR RH | ||||
| 58747-06100 |
ASV50 |
1 | ||
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61101-06210 |
ASV50 |
1 | ||
| 61103A - REINFORCEMENT SUB-ASSY, COWL SIDE, RH | ||||
| 61103-06020 |
ASV50 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-06090 |
ASV50 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-06160 |
ASV50 |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-06190 |
ASV50 |
1 | ||
| 61203-06191 |
ASV50 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61201-06070 |
ASV50 |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-06140 |
ASV50 |
1 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-06080 |
ASV50 |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-06903 |
ASV50 |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-06091 |
ASV50 |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-06050 |
ASV50 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61311-06090 |
ASV50 |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-06110 |
ASV50 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-06100 |
ASV50 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-06160 |
ASV50 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-06905 |
ASV50 |
1 | ||
| 61697D - HOUSING, QUARTER PANEL END, RH | ||||
| 61697-06904 |
ASV50 |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-06100 |
ASV50 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-06180 |
ASV50 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-06100 |
ASV50 |
1 | ||
| 62611F - INSULATOR, QUARTER WHEEL HOUSE, RH | ||||
| 62611-06090 |
ASV50 |
1 | ||
| 64201B - STRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, RH | ||||
| 64201-06121 |
ASV50 |
1 | ||
| 64201-06120 |
ASV50 |
1 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-06160 |
ASV50 |
1 | ||
| Common parts | ||||
| 65613-07010 | ||||
| 90189-06145 | ||||
| 90467-06121 | ||||
| 90467-11025 | ||||
| Linked diagrams | ||||
| 5701 | ||||
(1504- )

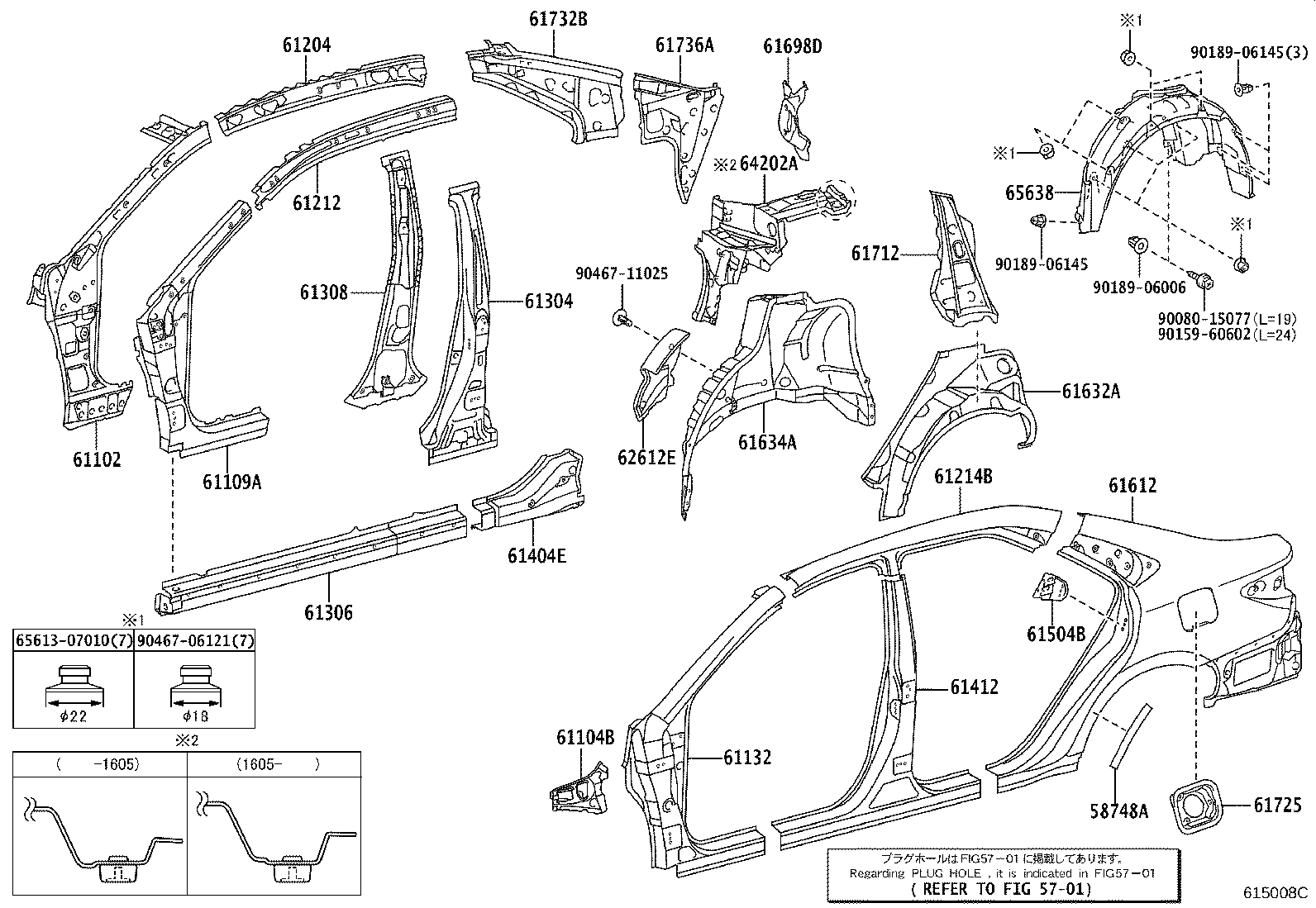

Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58748A - PROTECTOR, QUARTER PANEL, REAR LH | ||||
| 58748-06100 |
ASV50 |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61102-06210 |
ASV50 |
1 | ||
| 61104B - REINFORCEMENT SUB-ASSY, COWL SIDE, LH | ||||
| 61104-06020 |
ASV50 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-06150 |
ASV50 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-06160 |
ASV50 |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-06191 |
ASV50 |
1 | ||
| 61204-06190 |
ASV50 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61202-06070 |
ASV50 |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-06130 |
ASV50 |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-06080 |
ASV50 |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-06907 |
ASV50 |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-06150 |
ASV50 |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-06050 |
ASV50 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61312-06090 |
ASV50 |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-06110 |
ASV50 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-06100 |
ASV50 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-06160 |
ASV50 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-06905 |
ASV50 |
1 | ||
| 61698D - HOUSING, QUARTER PANEL END, LH | ||||
| 61698-06905 |
ASV50 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-06100 |
ASV50 |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-06010 |
ASV50 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-06170 |
ASV50 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-06100 |
ASV50 |
1 | ||
| 62612E - INSULATOR, QUARTER WHEEL HOUSE, LH | ||||
| 62612-06090 |
ASV50 |
1 | ||
| 64202A - STRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, LH | ||||
| 64202-06121 |
ASV50 |
1 | ||
| 64202-06120 |
ASV50 |
1 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-06160 |
ASV50 |
1 | ||
| Common parts | ||||
| 65613-07010 | ||||
| 90080-15077 | ||||
| 90159-60602 | ||||
| 90189-06006 | ||||
| 90189-06145 | ||||
| 90467-06121 | ||||
| 90467-11025 | ||||
| Linked diagrams | ||||
| 5701 | ||||
