ASV50L-CETSKV (2015)
Toyota Camry
Production
Apr 2015
-
Jun 2017
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1504- )

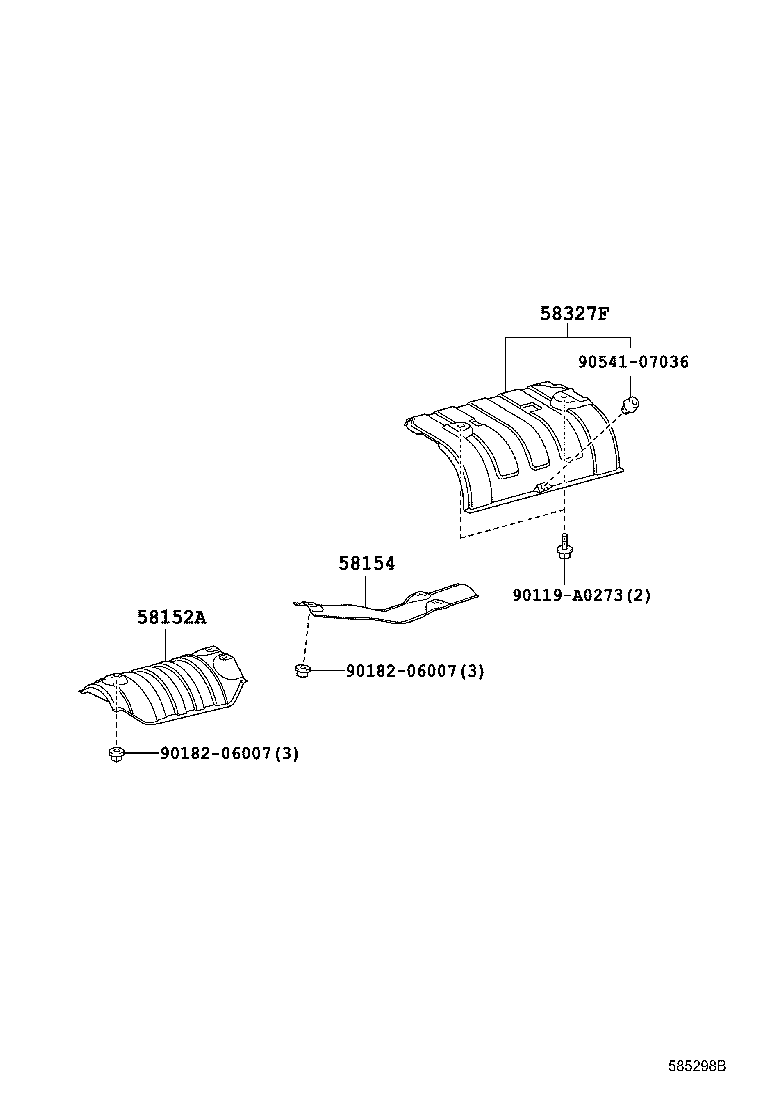

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58152A - INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER | ||||
| 58152-07011 |
ASV50 |
1 | ||
| 58152-07012 |
ASV50 |
1 | ||
| 58154 - INSULATOR, FRONT FLOOR HEAT, NO.2 LOWER | ||||
| 58154-06010 |
ASV50 |
1 | ||
| 58327F - INSULATOR, MAIN MUFFLER HEAT, RH | ||||
| 58327-06060 |
ASV50 |
1 | ||
| 58041-06010 |
ASV50 |
1 | ||
| Common parts | ||||
| 90119-A0273 | ||||
| 90182-06007 | ||||
| 90541-07036 | ||||
