ASV50L-CETSKV (2015)
Toyota Camry
Production
Apr 2015
-
Jun 2017
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1504- )

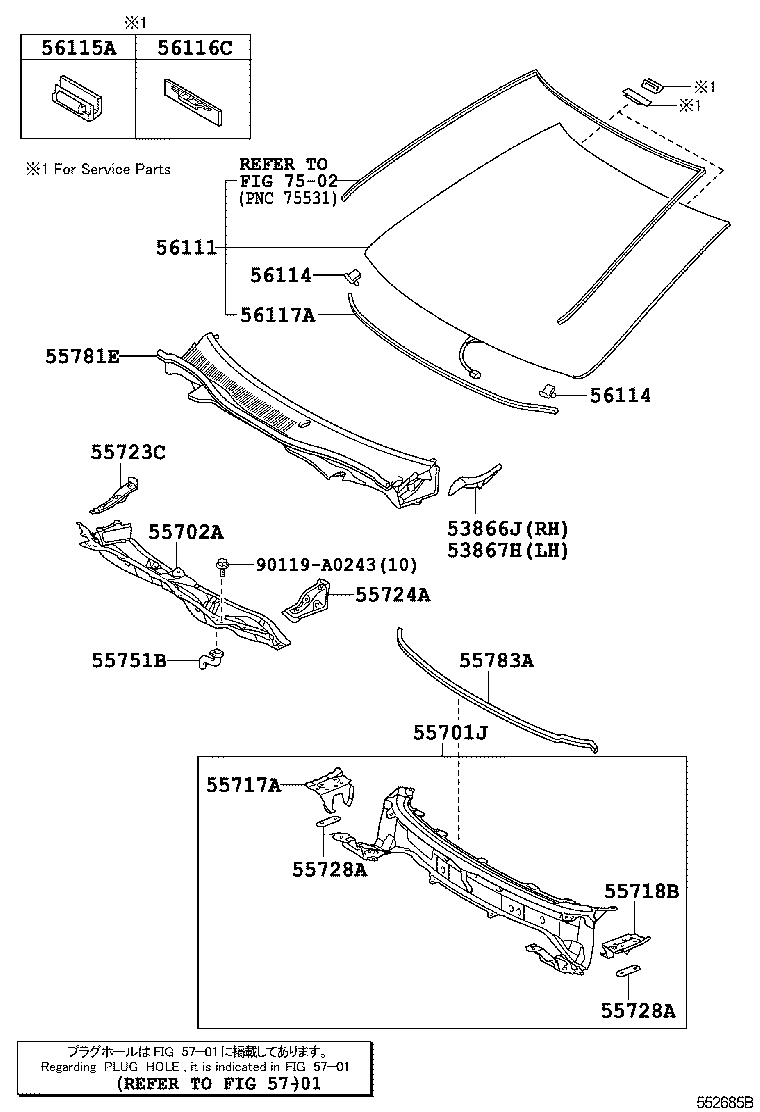

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53866J - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-06110 |
ASV50 |
1 | ||
| 53867H - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-06110 |
ASV50 |
1 | ||
| 55701J - PANEL SUB-ASSY, COWL TOP, OUTER | ||||
| 55701-06270 |
ASV50 |
1 | ||
| 55702A - PANEL SUB-ASSY, COWL TOP, OUTER FRONT | ||||
| 55702-06090 |
ASV50 |
1 | ||
| 55717A - PANEL, COWL TOP SIDE, INNER RH | ||||
| 55717-06120 |
ASV50 |
1 | ||
| 55718B - PANEL, COWL TOP SIDE, INNER LH | ||||
| 55718-06120 |
ASV50 |
1 | ||
| 55723C - REINFORCEMENT, COWL TOP SIDE, RH | ||||
| 55723-06110 |
ASV50 |
1 | ||
| 55724A - REINFORCEMENT, COWL TOP SIDE, LH | ||||
| 55724-06120 |
ASV50 |
1 | ||
| 55728A - REINFORCEMENT, HOOD STOPPER | ||||
| 55728-06090 |
ASV50 |
2 | ||
| 55728A - REINFORCEMENT, HOOD STOPPER | ||||
| 55728-06090 |
ASV50 |
2 | ||
| 55751B - HOSE, COWL WATER EXTRACT, NO.1 | ||||
| 55751-06110 |
ASV50 |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-06140 |
ASV50 |
1 | ||
| 55783A - PAD, COWL TOP SILENCER | ||||
| 55783-06090 |
ASV50 |
2 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-06540 |
ASV50 *HSEAL,T=4.76,GREEN |
1 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56114-33050 |
ASV50 |
2 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56114-33050 |
ASV50 |
2 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30120 |
ASV50 |
1 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
ASV50 |
1 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 90998-91004 |
ASV50 *D,L=1358 |
1 | ||
| Common parts | ||||
| 90119-A0243 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 7502 | ||||
