ASV50L-CETSKV (2015)
Toyota Camry

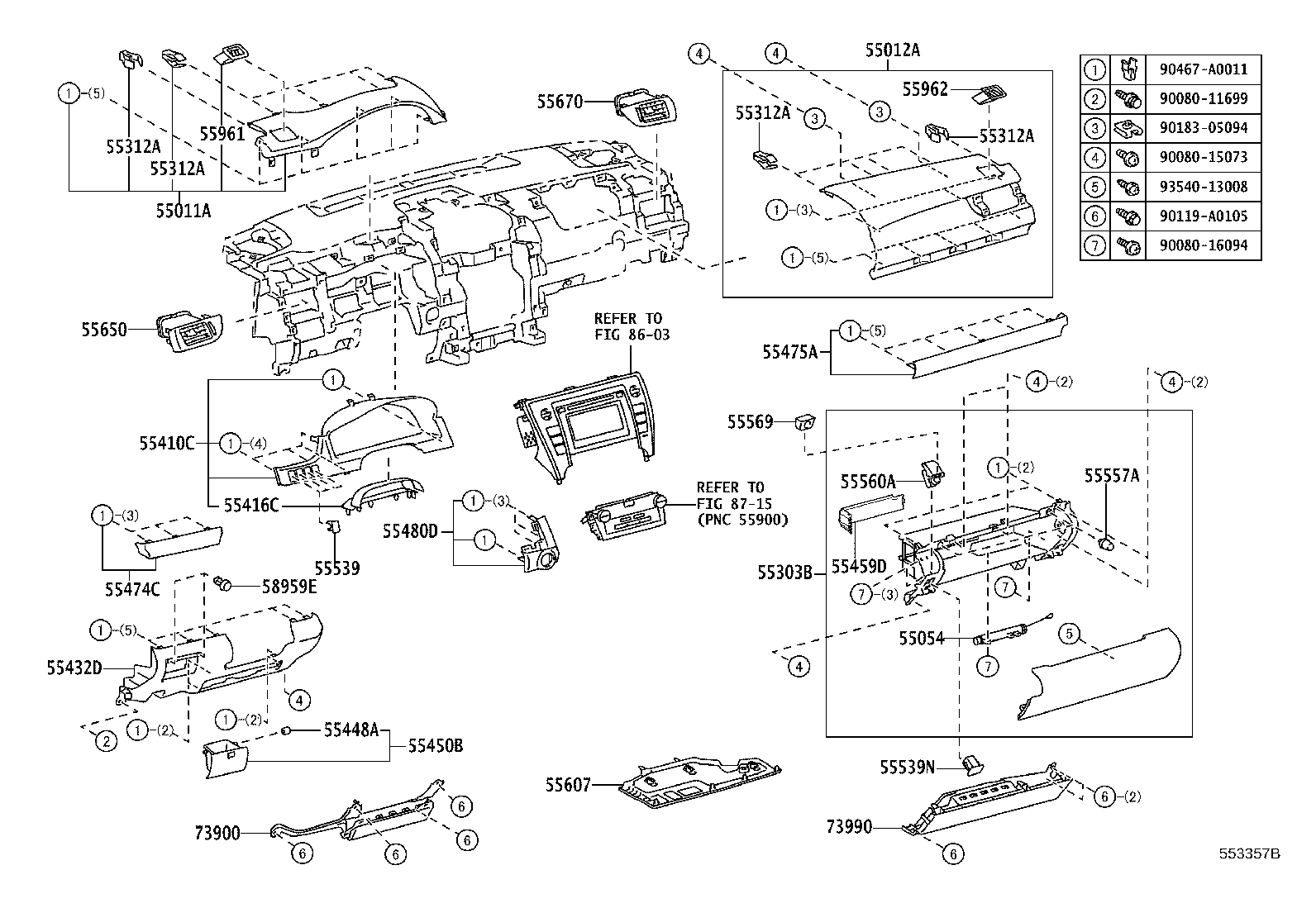

ILLUST NO. 2 OF 2(1504- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-06010C1 |
ASV50 BLACK/RED,TRIM2# |
1 | ||
| 55011-06010C4 |
ASV50 BLACK/RICE,TRIM1# |
1 | ||
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-06010C4 |
ASV50 BLACK/RICE,TRIM1# |
1 | ||
| 55012-06010C1 |
ASV50 BLACK/RED,TRIM2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-06020 |
ASV50 |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-06391C0 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
ASV50 MELLOW WHITE |
10 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
ASV50 MELLOW WHITE |
10 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
ASV50 MELLOW WHITE |
10 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
ASV50 MELLOW WHITE |
10 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-06020C1 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-06020C1 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-06100C0 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-08020 |
ASV50 |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-06031C0 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-06090 |
ASV50 |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55474-06320B0 |
ASV50 ORNAMENT SILVER,TRIM1#,2# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-06200B0 |
ASV50 ORNAMENT SILVER,TRIM1#,2# |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-06160C0 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
ASV50 BLACK,(J) |
1 | ||
| 55539-52060C0 |
ASV50 BLACK |
1 | ||
| 55539-06090C0 |
ASV50 BLACK,(L) |
1 | ||
| 55539-52060C4 |
ASV50 BLACK,(J) |
1 | ||
| 55539N - COVER, SPARE SWITCH HOLE | ||||
| 55539-0E010 |
ASV50 |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ASV50 |
2 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-06110C0 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-06020C0 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-06041 |
ASV50 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-06170C0 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-06210C0 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-06030C0 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-06030C0 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ASV50 |
2 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-06023C0 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-06021C0 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-15073 | ||||
| 90080-16094 | ||||
| 90119-A0105 | ||||
| 90183-05094 | ||||
| 90467-A0011 | ||||
| 93540-13008 | ||||
| Linked diagrams | ||||
| 8603 | ||||
| 8715 | ||||

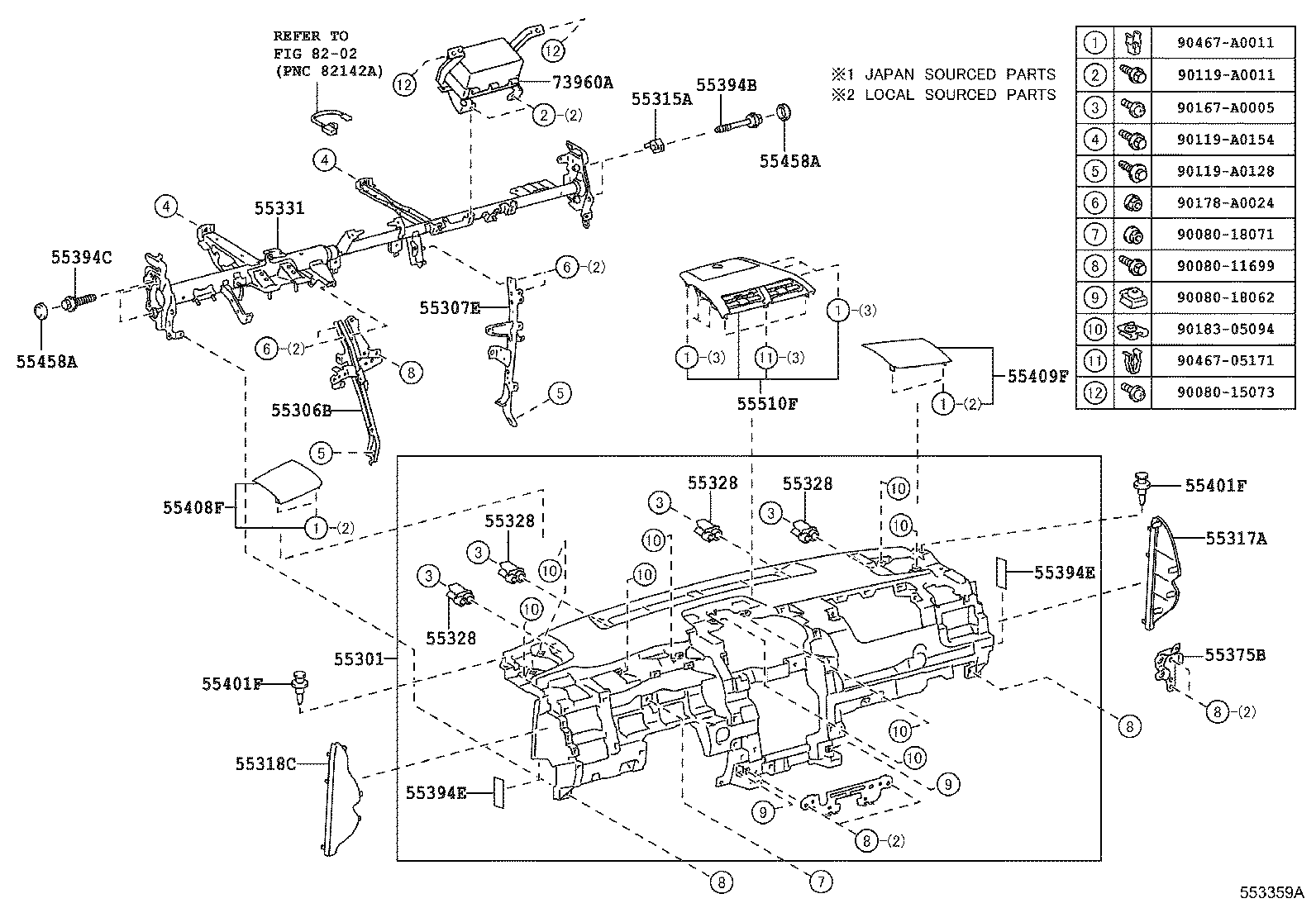

ILLUST NO. 1 OF 2(1504- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-06210C0 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| 55306B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL | ||||
| 55306-06070 |
ASV50 |
1 | ||
| 55307E - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-06060 |
ASV50 |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-48160 |
ASV50 |
2 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-06140C0 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-06160C0 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
ASV50 |
4 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
ASV50 |
4 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
ASV50 |
4 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
ASV50 |
4 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-06330 |
ASV50 |
1 | ||
| 55330-06331 |
ASV50 |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-06210 |
ASV50 |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 90119-A0306 |
ASV50 |
2 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 90119-A0305 |
ASV50 |
3 | ||
| 55394E - CUSHION, INSTRUMENT PANEL, LOWER NO.4 | ||||
| 55394-06140 |
ASV50 |
2 | ||
| 55394E - CUSHION, INSTRUMENT PANEL, LOWER NO.4 | ||||
| 55394-06140 |
ASV50 |
2 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-02020 |
ASV50 |
2 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-02020 |
ASV50 |
2 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-06070C0 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-06070C0 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-22110 |
ASV50 |
5 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-22110 |
ASV50 |
5 | ||
| 55510F - COVER ASSY, SPEAKER OPENING, NO.1 | ||||
| 55510-06030C0 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-06181 |
ASV50 |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-15073 | ||||
| 90080-18062 | ||||
| 90080-18071 | ||||
| 90119-A0011 | ||||
| 90119-A0128 | ||||
| 90119-A0154 | ||||
| 90167-A0005 | ||||
| 90178-A0024 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 90467-A0011 | ||||
| Linked diagrams | ||||
| 8202 | ||||
