ASV50L-CETSKV (2015)
Toyota Camry
Production
Apr 2015
-
Jun 2017
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1504- )

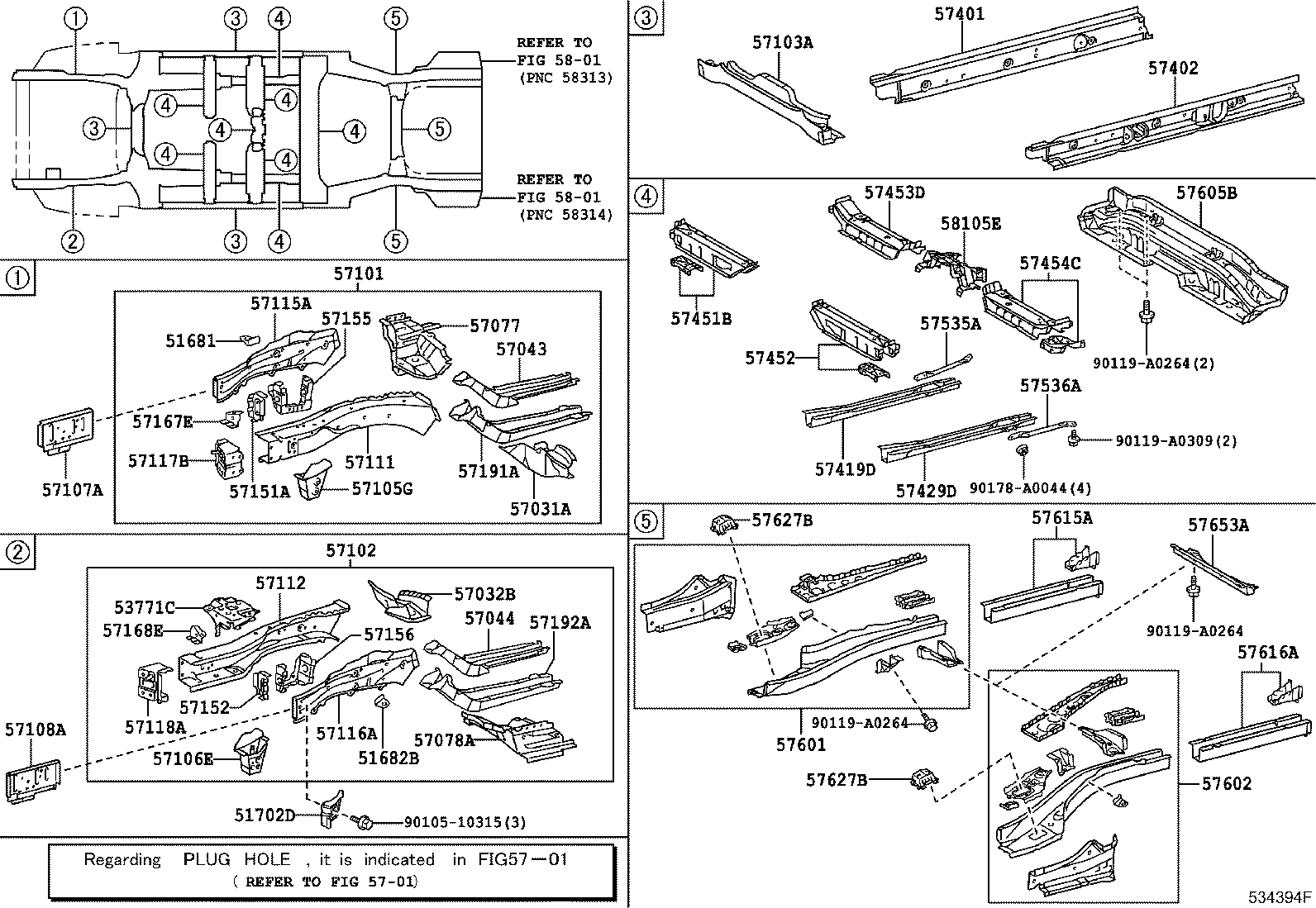

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51681 - BRACKET, FLEXIBLE HOSE | ||||
| 51681-06020 |
ASV50 |
1 | ||
| 51682B - BRACKET, FLEXIBLE HOSE, LH | ||||
| 51682-06020 |
ASV50 |
1 | ||
| 51702D - BRACKET SUB-ASSY, BODY SUPPORT, LH | ||||
| 51702-06010 |
ASV50 |
1 | ||
| 53771C - SUPPORT, BATTERY CARRIER | ||||
| 53771-06090 |
ASV50 |
1 | ||
| 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57031-06010 |
ASV50 |
1 | ||
| 57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57032-06010 |
ASV50 |
1 | ||
| 57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-06010 |
ASV50 |
1 | ||
| 57044 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-06010 |
ASV50 |
1 | ||
| 57077 - BOX SUB-ASSY, TORQUE, FRONT RH | ||||
| 57077-06040 |
ASV50 |
1 | ||
| 57078A - BOX SUB-ASSY, TORQUE, FRONT LH | ||||
| 57078-06110 |
ASV50 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-06171 |
ASV50 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-06280 |
ASV50 |
1 | ||
| 57103A - CROSSMENBER SUB-ASSY, FLOOR, NO.3 | ||||
| 57103-06150 |
ASV50 |
1 | ||
| 57105G - SPACER SUB-ASSY, SUSPENSION MEMBER, FRONT RH | ||||
| 57105-06010 |
ASV50 |
1 | ||
| 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57106-06010 |
ASV50 |
1 | ||
| 57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57107-06011 |
ASV50 |
1 | ||
| 57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57108-06011 |
ASV50 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-06021 |
ASV50 |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-06031 |
ASV50 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-06030 |
ASV50 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-06071 |
ASV50 |
1 | ||
| 57117B - REINFORCEMENT, FRONT BUMPER MOUNTING, RH | ||||
| 57117-06030 |
ASV50 |
1 | ||
| 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH | ||||
| 57118-06030 |
ASV50 |
1 | ||
| 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH | ||||
| 57151-06010 |
ASV50 |
1 | ||
| 57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH | ||||
| 57152-06010 |
ASV50 |
1 | ||
| 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH | ||||
| 57155-06010 |
ASV50 |
1 | ||
| 57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH | ||||
| 57156-06011 |
ASV50 |
1 | ||
| 57167E - GUSSET, FRONT CROSSMEMBER SIDE, RH | ||||
| 57167-06010 |
ASV50 |
1 | ||
| 57168E - GUSSET, FRONT CROSSMEMBER SIDE, LH | ||||
| 57168-06010 |
ASV50 |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-06010 |
ASV50 |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-06010 |
ASV50 |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-06211 |
ASV50 |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-06260 |
ASV50 |
1 | ||
| 57419D - REINFORCEMENT, FRONT FLOOR UNDER, REAR RH | ||||
| 57419-06040 |
ASV50 |
1 | ||
| 57429D - REINFORCEMENT, FRONT FLOOR UNDER, REAR LH | ||||
| 57429-06020 |
ASV50 |
1 | ||
| 57451B - MEMBER, FRONT FLOOR CROSS, RH | ||||
| 57451-07901 |
ASV50 |
1 | ||
| 57452 - MEMBER, FRONT FLOOR CROSS, LH | ||||
| 57452-07902 |
ASV50 |
1 | ||
| 57453D - MEMBER, FRONT FLOOR CROSS SIDE, RH | ||||
| 57453-06060 |
ASV50 |
1 | ||
| 57454C - MEMBER, FRONT FLOOR CROSS SIDE, LH | ||||
| 57454-06060 |
ASV50 |
1 | ||
| 57535A - BRACE, FRONT FLOOR, RH | ||||
| 65031-07010 |
ASV50 |
1 | ||
| 57536A - BRACE, FRONT FLOOR, LH | ||||
| 65032-07010 |
ASV50 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57611-06915 |
ASV50 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57612-06913 |
ASV50 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-07031 |
ASV50 |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-06919 |
ASV50 |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-06924 |
ASV50 |
1 | ||
| 57627B - COVER, REAR FLOOR SIDE MEMBER | ||||
| 57627-06010 |
ASV50 |
2 | ||
| 57627B - COVER, REAR FLOOR SIDE MEMBER | ||||
| 57627-06010 |
ASV50 |
2 | ||
| 57653A - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-06080 |
ASV50 |
1 | ||
| 58105E - PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB | ||||
| 58105-06010 |
ASV50 |
1 | ||
| Common parts | ||||
| 90105-10315 | ||||
| 90119-A0264 | ||||
| 90119-A0309 | ||||
| 90178-A0044 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 5801 | ||||
