ASV50L-CETSKV (2015)
Toyota Camry
Production
Apr 2015
-
Jun 2017
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1504- )

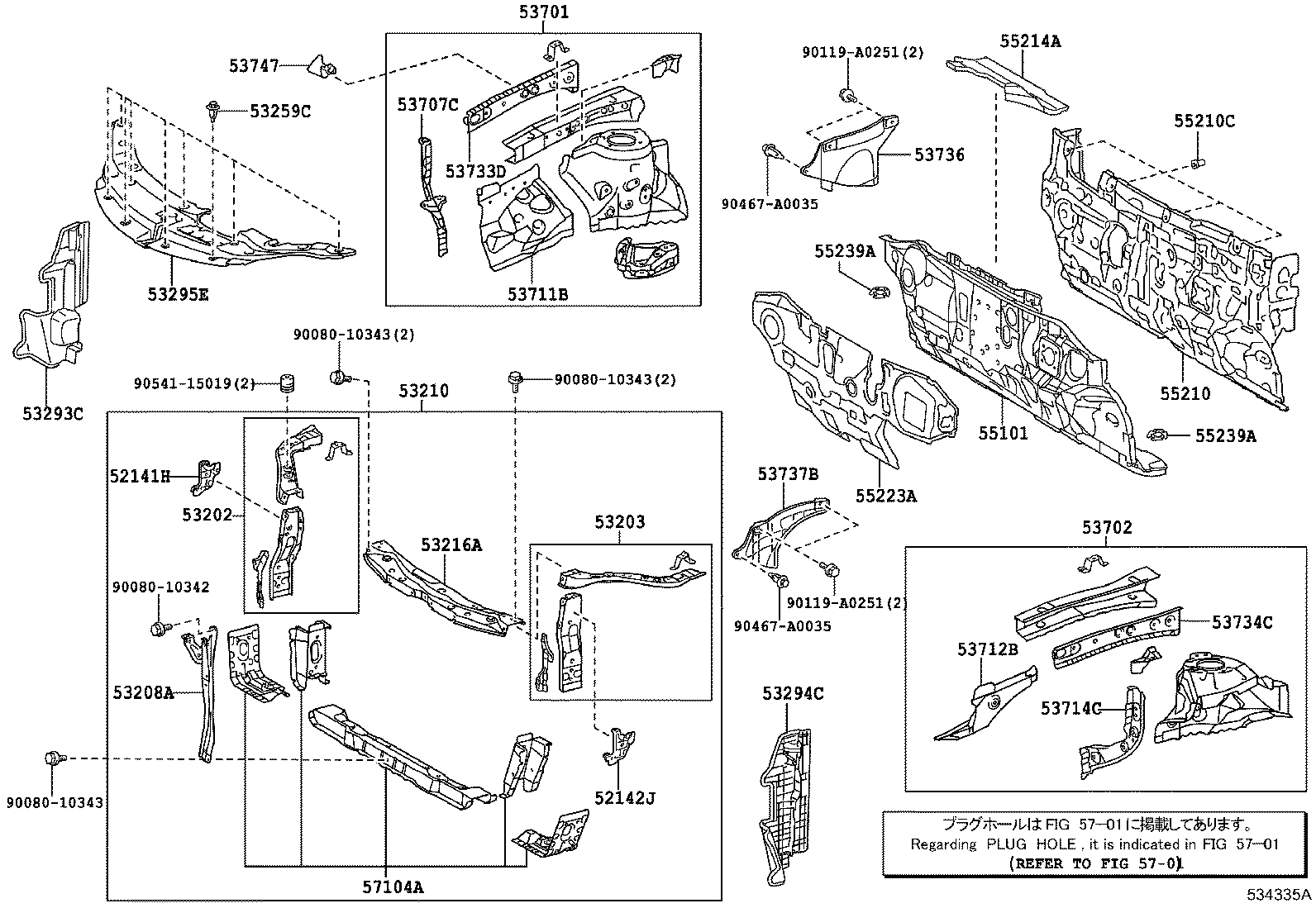

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52141H - ARM, FRONT BUMPER, UPPER RH | ||||
| 52141-06090 |
ASV50 |
1 | ||
| 52142J - ARM, FRONT BUMPER, UPPER LH | ||||
| 52142-06140 |
ASV50 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-06190 |
ASV50 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-06230 |
ASV50 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-06150 |
ASV50 |
1 | ||
| 53210 - SUPPORT ASSY, RADIATOR | ||||
| 53210-06150 |
ASV50 |
1 | ||
| 53216A - SUPPORT, RADIATOR, UPPER | ||||
| 53216-06130 |
ASV50 |
1 | ||
| 53259C - CLIP, RADIATOR SUPPORT TO FRAME SEAL | ||||
| 90467-07211 |
ASV50 |
9 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-06340 |
ASV50 |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-06340 |
ASV50 |
1 | ||
| 53295E - SEAL, COOL AIR INTAKE DUCT | ||||
| 53295-06130 |
ASV50 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-06230 |
ASV50 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-06210 |
ASV50 |
1 | ||
| 53707C - EXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH | ||||
| 53707-06020 |
ASV50 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-06120 |
ASV50 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-06080 |
ASV50 |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-06090 |
ASV50 |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-06090 |
ASV50 |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-06090 |
ASV50 |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-07021 |
ASV50 |
1 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-06040 |
ASV50 |
1 | ||
| 53747 - PLATE, AIR SEALED, RH | ||||
| 53747-06050 |
ASV50 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-06471 |
ASV50 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-06241 |
ASV50 |
1 | ||
| 55210C - CLIP | ||||
| 90467-06197 |
ASV50 |
4 | ||
| 55214A - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-06052 |
ASV50 |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-06290 |
ASV50 |
1 | ||
| 55239A - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-06020 |
ASV50 |
2 | ||
| 55239A - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-06020 |
ASV50 |
2 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-07022 |
ASV50 |
1 | ||
| Common parts | ||||
| 90080-10342 | ||||
| 90080-10343 | ||||
| 90119-A0251 | ||||
| 90467-A0035 | ||||
| 90541-15019 | ||||
| Linked diagrams | ||||
| 5701 | ||||
