ASV50L-CETSKV (2015)
Toyota Camry
Production
Apr 2015
-
Jun 2017
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1504- )

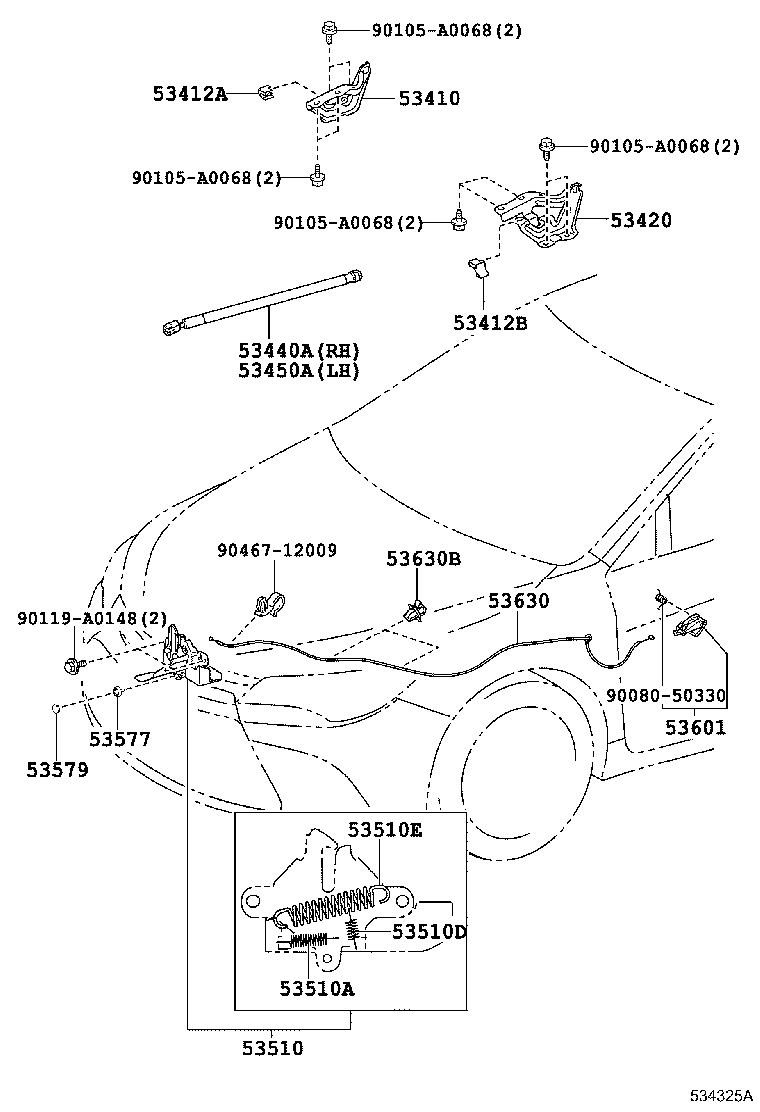

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-06320 |
ASV50 |
1 | ||
| 53412A - CUSHION, HOOD HINGE SEAT RH | ||||
| 53412-06140 |
ASV50 |
1 | ||
| 53412B - CUSHION, HOOD HINGE SEAT LH | ||||
| 53412-06150 |
ASV50 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-06320 |
ASV50 |
1 | ||
| 53440A - SUPPORT ASSY, HOOD, RH | ||||
| 53440-06091 |
ASV50 |
1 | ||
| 53450A - SUPPORT ASSY, HOOD, LH | ||||
| 53450-06081 |
ASV50 |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-06280 |
ASV50 |
1 | ||
| 53510-06290 |
ASV50 ANTI-THEFT SYSTEM-W(ALARM & IMMOBILIZER) |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09055 |
ASV50 WD=0.9,CW=21 |
1 | ||
| 53510D - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12063 |
ASV50 WD=1.2,CW=8.5 |
1 | ||
| 53510E - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-18067 |
ASV50 WD=1.8,CW=13 |
1 | ||
| 53577 - BOLT, HOOD LOCK | ||||
| 53577-33010 |
ASV50 |
1 | ||
| 53579 - CAP, HOOD LOCK NUT | ||||
| 53579-0E010 |
ASV50 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-02020C0 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| 53601-02020C3 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-06150 |
ASV50 |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90469-06005 |
ASV50 |
2 | ||
| Common parts | ||||
| 90080-50330 | ||||
| 90105-A0068 | ||||
| 90119-A0148 | ||||
| 90467-12009 | ||||
