ASV50L-CETSKV (2015)
Toyota Camry
Production
Apr 2015
-
Jun 2017
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

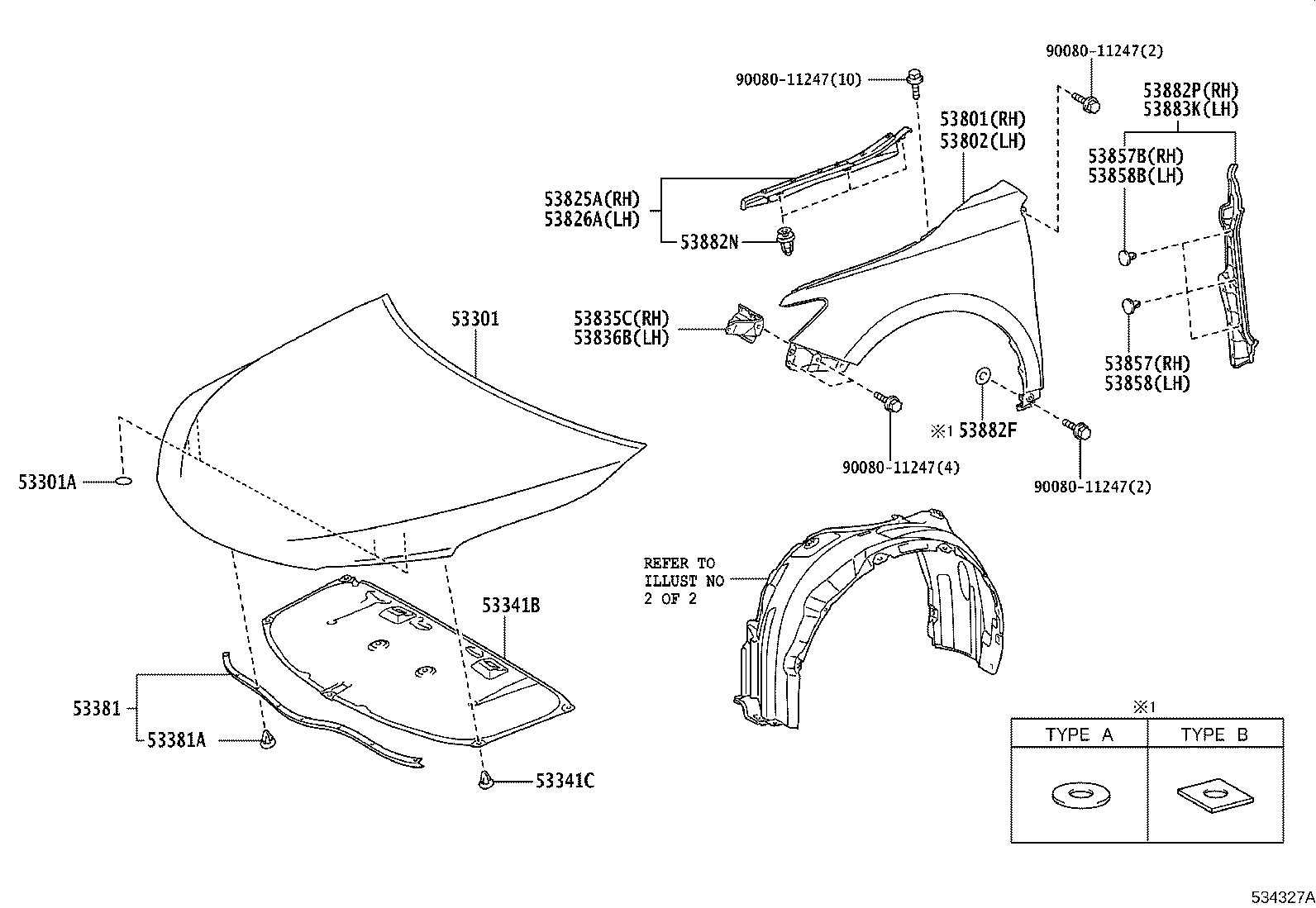

ILLUST NO. 1 OF 2(1504- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-06160 |
ASV50 |
1 | ||
| 53301A - PLUG, HOLE(FOR HOOD) | ||||
| 90950-06124 |
ASV50 |
4 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-06400 |
ASV50 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-A0003 |
ASV50 |
7 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-06100 |
ASV50 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90080-46010 |
ASV50 |
8 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-06200 |
ASV50 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-06210 |
ASV50 |
1 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53825-06130 |
ASV50 |
1 | ||
| 53826A - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53826-06130 |
ASV50 |
1 | ||
| 53835C - BRACKET, FRONT SIDE PANEL, RH | ||||
| 53835-06080 |
ASV50 |
1 | ||
| 53836B - BRACKET, FRONT SIDE PANEL, LH | ||||
| 53836-06080 |
ASV50 |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47011 |
ASV50 |
1 | ||
| 53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47011 |
ASV50 |
2 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47011 |
ASV50 |
1 | ||
| 53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47011 |
ASV50 |
2 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-33060 |
ASV50 TYPE B:REFER ILLUST. |
2 | ||
| 53882-30030 |
ASV50 TYPE A:REFER ILLUST. |
2 | ||
| 53882N - CLIP(FOR FRONT FENDER SEAL) | ||||
| 90467-A0006 |
ASV50 |
6 | ||
| 53882P - SEAL, FRONT FENDER, RH | ||||
| 53882-06150 |
ASV50 |
1 | ||
| 53883K - SEAL, FRONT FENDER, LH | ||||
| 53883-06140 |
ASV50 |
1 | ||
| Common parts | ||||
| 90080-11247 | ||||

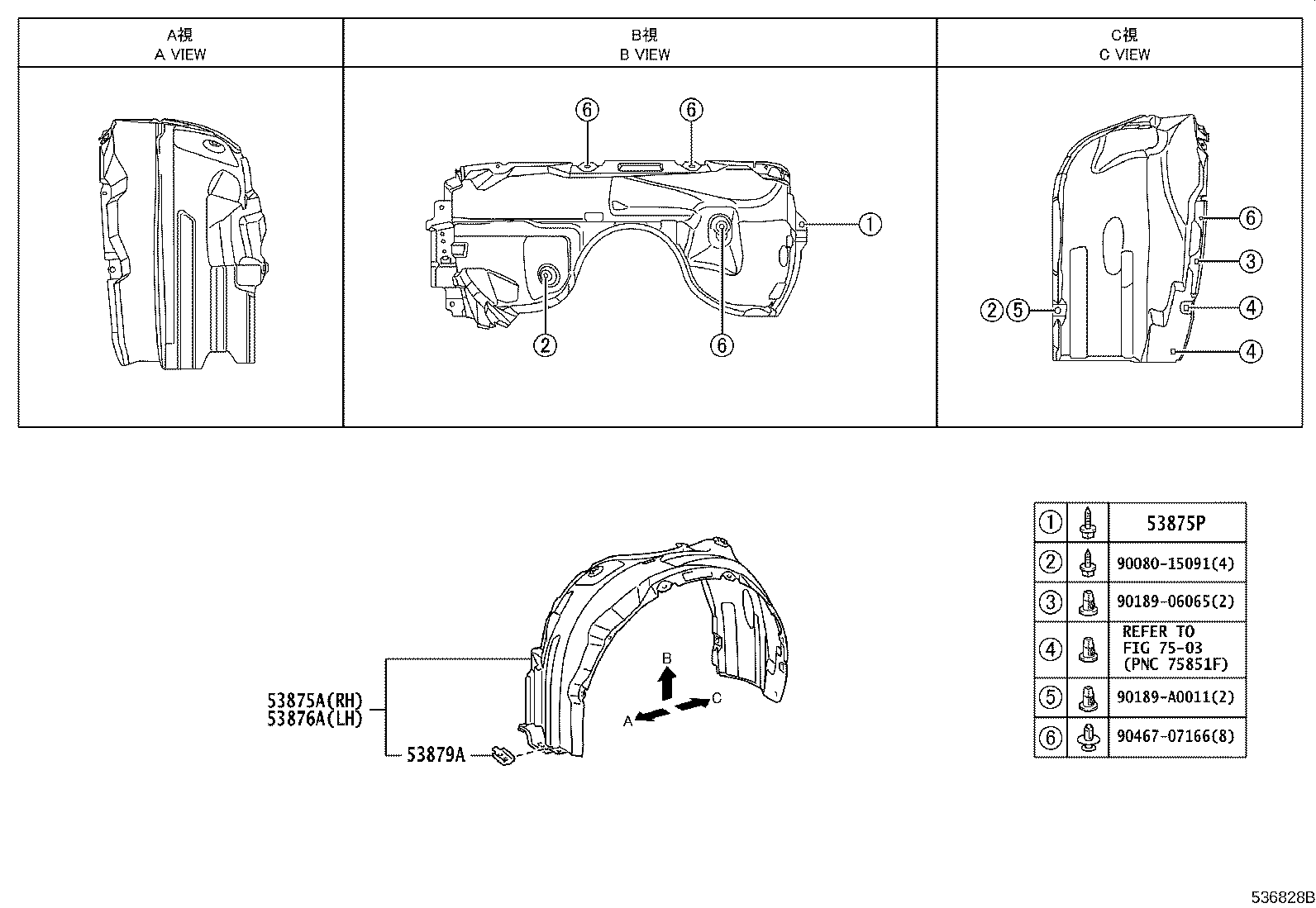

ILLUST NO. 2 OF 2(1504- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-06210 |
ASV50 |
1 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60488 |
ASV50 |
2 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-06200 |
ASV50 |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-06030 |
ASV50 |
2 | ||
| Common parts | ||||
| 90080-15091 | ||||
| 90189-06065 | ||||
| 90189-A0011 | ||||
| 90467-07166 | ||||
| Linked diagrams | ||||
| 7503 | ||||
