ASV50L-CETSKV (2015)
Toyota Camry
Production
Apr 2015
-
Jun 2017
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1504- )

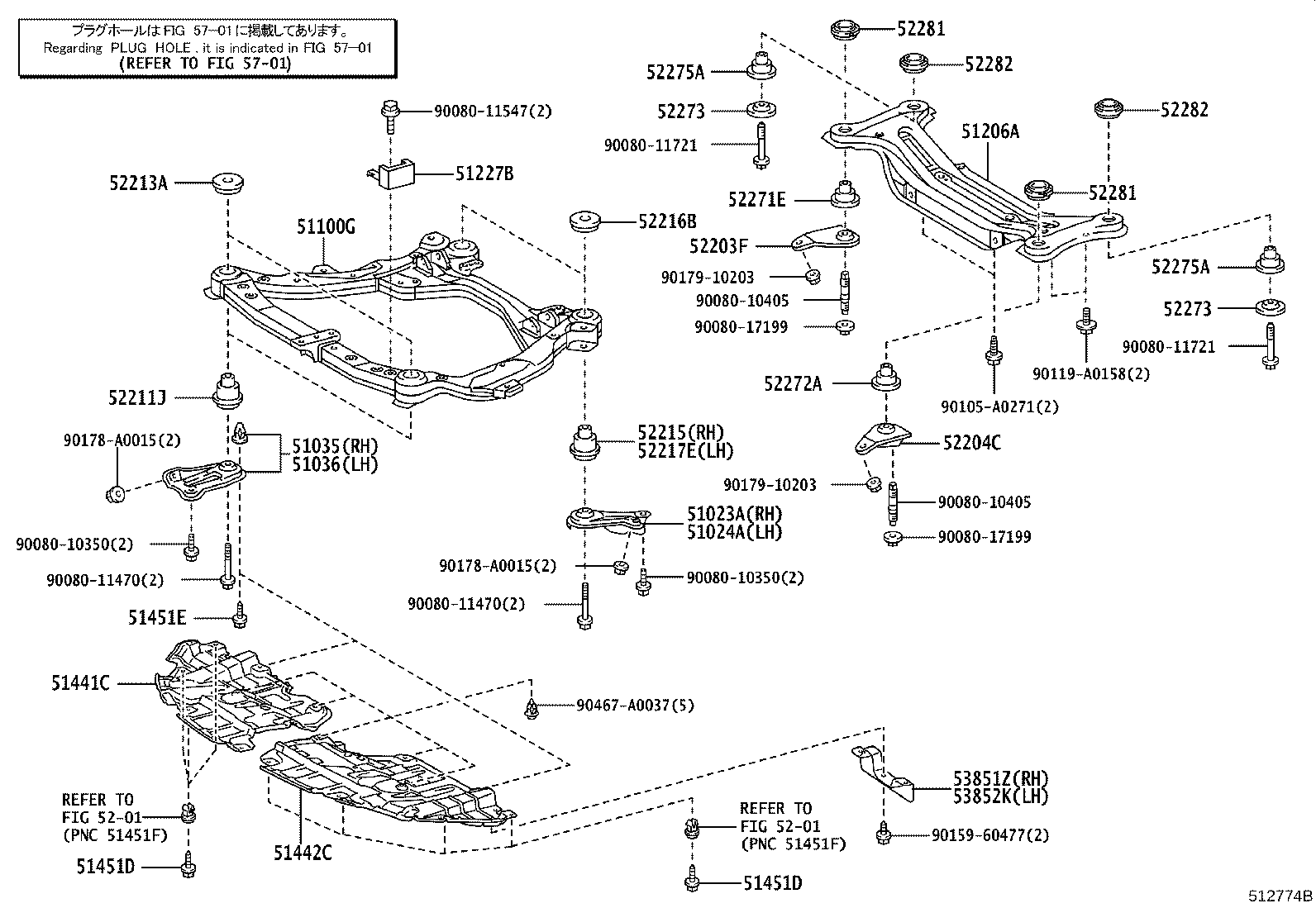

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51023A - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH | ||||
| 51023-07010 |
ASV50 |
1 | ||
| 51024A - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH | ||||
| 51024-07010 |
ASV50 |
1 | ||
| 51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH | ||||
| 51035-07010 |
ASV50 |
1 | ||
| 51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH | ||||
| 51036-07010 |
ASV50 |
1 | ||
| 51100G - FRAME ASSY, FRONT | ||||
| 51100-07035 |
ASV50 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-06091 |
ASV50 |
1 | ||
| 51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC | ||||
| 51227-08010 |
ASV50 |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-06220 |
ASV50 |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-06210 |
ASV50 |
1 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60477 |
ASV50 |
7 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60477 |
ASV50 |
7 | ||
| 51451E - SCREW, NO.2 | ||||
| 90159-60477 |
ASV50 |
2 | ||
| 52203F - STOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52203-06041 |
ASV50 |
1 | ||
| 52204C - STOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52204-06041 |
ASV50 |
1 | ||
| 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52211-06080 |
ASV50 |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-06080 |
ASV50 |
2 | ||
| 52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52215-06120 |
ASV50 |
1 | ||
| 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52216-06060 |
ASV50 |
2 | ||
| 52217E - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH | ||||
| 52217-06100 |
ASV50 |
1 | ||
| 52271E - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH | ||||
| 52271-06120 |
ASV50 |
1 | ||
| 52272A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH | ||||
| 52272-06110 |
ASV50 |
1 | ||
| 52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER | ||||
| 52273-06010 |
ASV50 |
2 | ||
| 52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER | ||||
| 52273-06010 |
ASV50 |
2 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-06130 |
ASV50 |
2 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-06130 |
ASV50 |
2 | ||
| 52281 - CUSHION, DIFFERENTIAL SUPPORT MEMBER | ||||
| 52281-06030 |
ASV50 |
2 | ||
| 52281 - CUSHION, DIFFERENTIAL SUPPORT MEMBER | ||||
| 52281-06030 |
ASV50 |
2 | ||
| 52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER | ||||
| 52282-06060 |
ASV50 |
2 | ||
| 52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER | ||||
| 52282-06060 |
ASV50 |
2 | ||
| 53851Z - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-06100 |
ASV50 |
1 | ||
| 53852K - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-06100 |
ASV50 |
1 | ||
| Common parts | ||||
| 90080-10350 | ||||
| 90080-10405 | ||||
| 90080-11470 | ||||
| 90080-11547 | ||||
| 90080-11721 | ||||
| 90080-17199 | ||||
| 90105-A0271 | ||||
| 90119-A0158 | ||||
| 90159-60477 | ||||
| 90178-A0015 | ||||
| 90179-10203 | ||||
| 90467-A0037 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 5701 | ||||
