ASV50L-CETSKV (2015)
Toyota Camry
Production
Apr 2015
-
Jun 2017
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1504- )

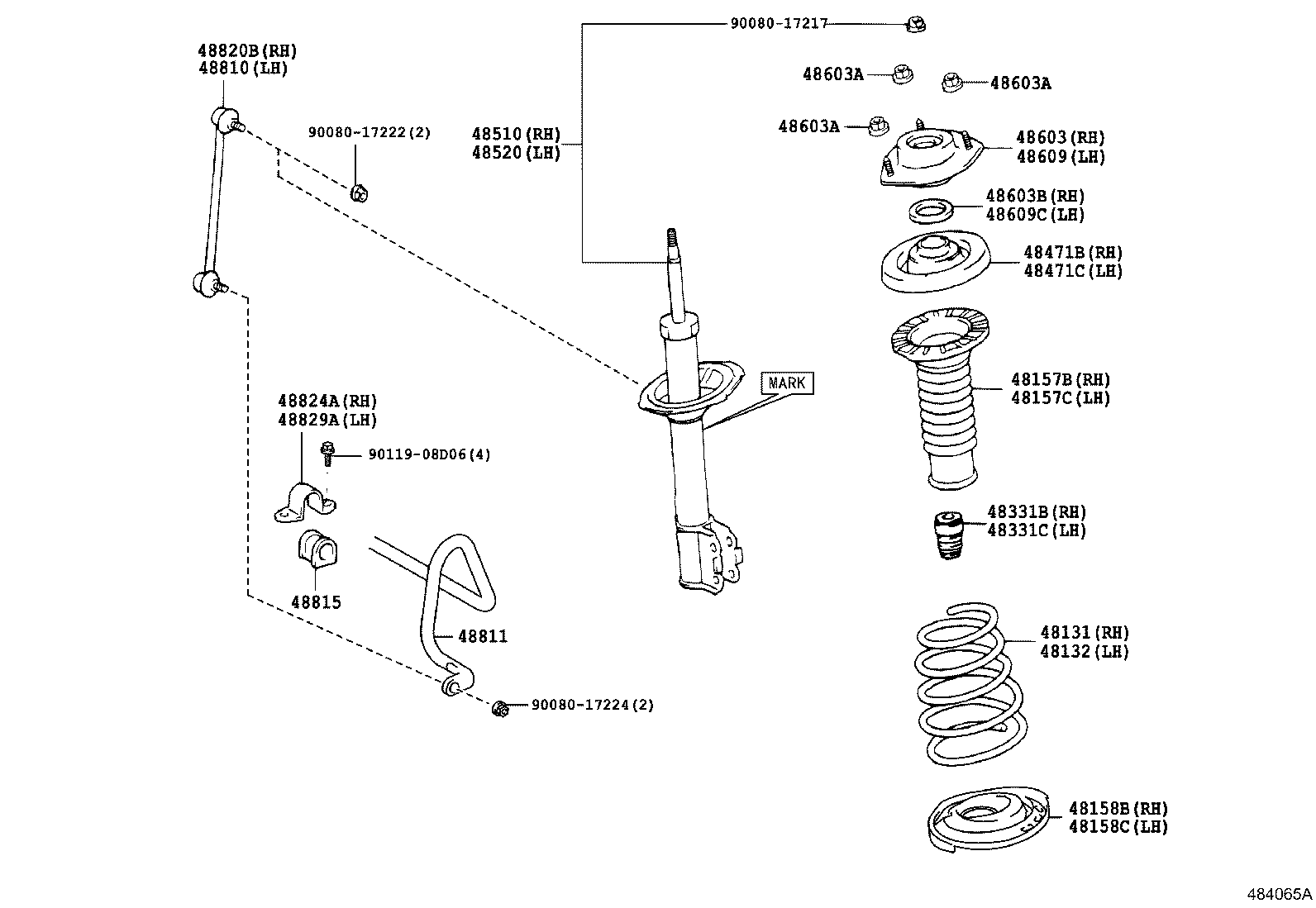

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-06F70 |
ASV50 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48132-06190 |
ASV50 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-07020 |
ASV50 |
1 | ||
| 48157-06082 |
ASV50 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-07020 |
ASV50 |
1 | ||
| 48157-06082 |
ASV50 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-06071 |
ASV50 |
1 | ||
| 48158-06070 |
ASV50 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-06080 |
ASV50 |
1 | ||
| 48158-06081 |
ASV50 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-06050 |
ASV50 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-06050 |
ASV50 |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-0E011 |
ASV50 |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-0E011 |
ASV50 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-8Z152 |
ASV50 MARK 48510-06850 |
1 | ||
| 48510-8Z250 |
ASV50 MARK 48510-06851 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-8Z114 |
ASV50 MARK 48520-06851 |
1 | ||
| 48520-8Z040 |
ASV50 MARK 48520-06850 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-06260 |
ASV50 |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-A0004 |
ASV50 |
6 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-A0004 |
ASV50 |
6 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-A0004 |
ASV50 |
6 | ||
| 48603B - BEARING(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90903-63014 |
ASV50 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-06260 |
ASV50 |
1 | ||
| 48609C - BEARING(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90903-63014 |
ASV50 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-06090 |
ASV50 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-06251 |
ASV50 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-06140 |
ASV50 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-06090 |
ASV50 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-06020 |
ASV50 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-06020 |
ASV50 |
1 | ||
| Common parts | ||||
| 90080-17217 | ||||
| 90080-17222 | ||||
| 90080-17224 | ||||
| 90119-08D06 | ||||
