ASV50L-CETSKV (2015)

Toyota Camry

Production Apr 2015 - Jun 2017
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1504- )

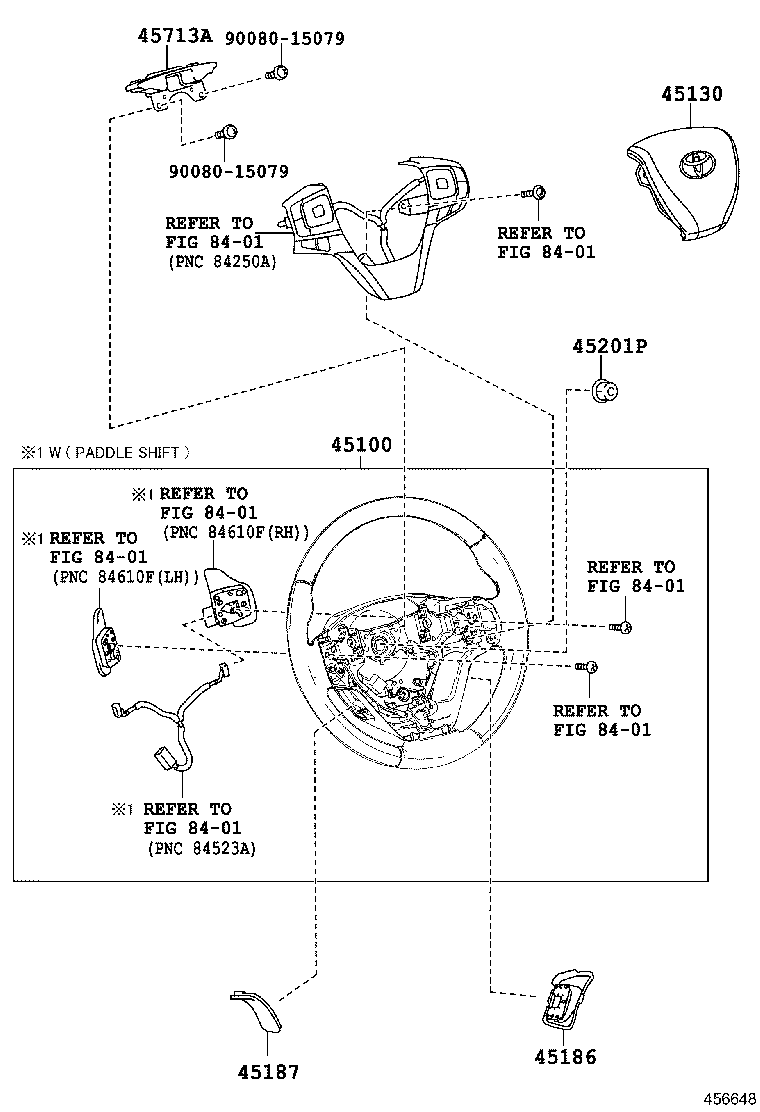

Click highlighted areas on diagram

diagram 45100 45130 45186 45187 45201P 45713A 8401 8401 8401 8401 8401 8401 8401 9008015079 9008015079
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-06P70C2

ASV50

3-SPOKE,LEATHER,BLACK,TRIM2#

 1
45100-06P70C1

ASV50

3-SPOKE,LEATHER,BLACK,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-06430C0

ASV50

BLACK,TRIM1#,2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-06250C0

ASV50

BLACK,TRIM1#,2#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-06150C0

ASV50

BLACK,TRIM1#,2#

 1
45201P - NUT, STEERING WHEEL SET
90080-17234

ASV50

 1
45713A - DAMPER, STEERING SHAKE
45713-33210

ASV50

 1
Common parts
90080-15079
Linked diagrams
8401
