ASV50L-CETSKV (2015)
Toyota Camry
Production
Apr 2015
-
Jun 2017
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1504- )

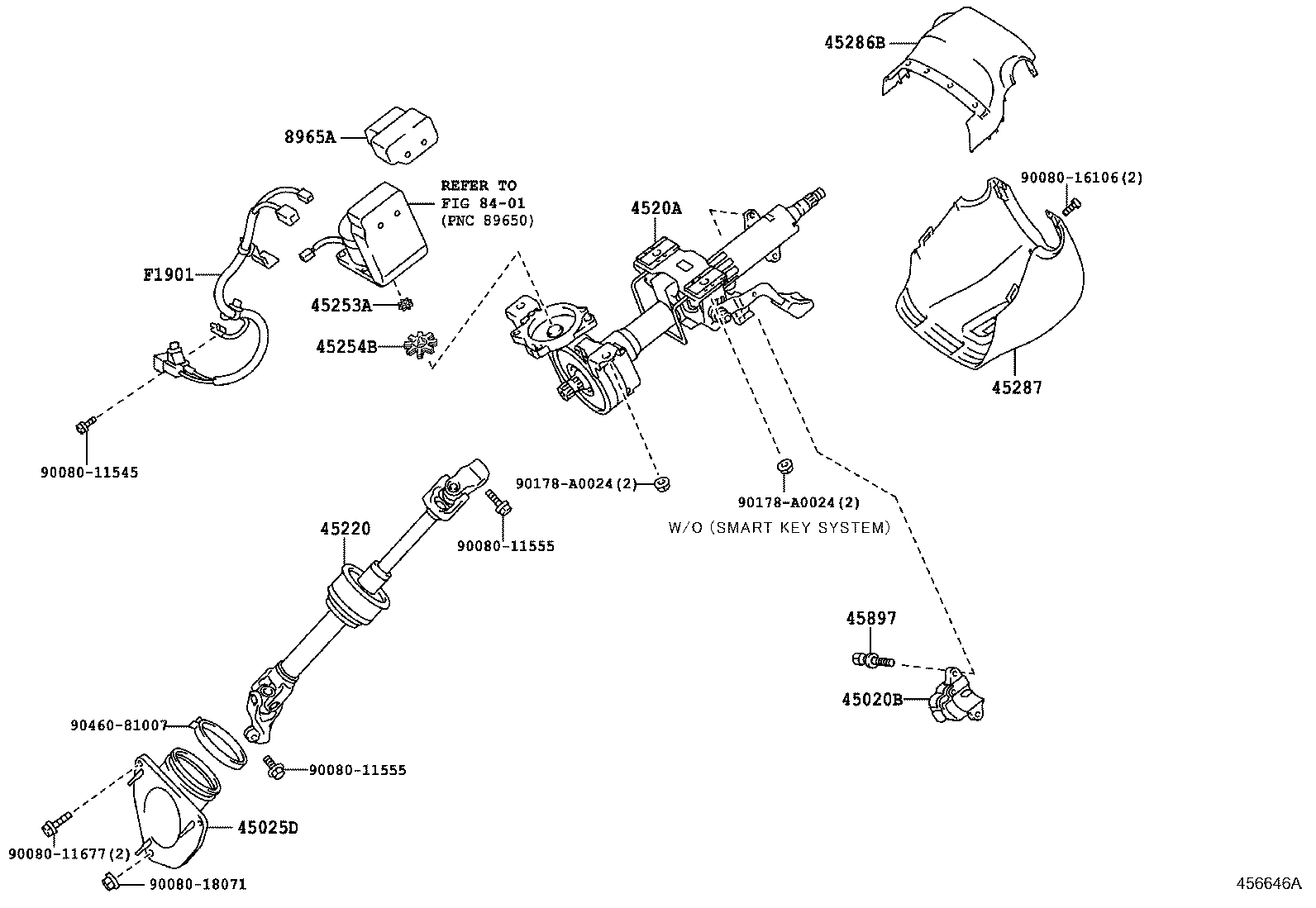

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK | ||||
| 45020-06130 |
ASV50 |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-06150 |
ASV50 |
1 | ||
| 4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING | ||||
| 4520A-06012 |
ASV50 |
1 | ||
| 4520A-06013 |
ASV50 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-06150 |
ASV50 |
1 | ||
| 45253A - SPACER, ELECTRIC POWER STEERING MOTOR SHAFT | ||||
| 45253-28130 |
ASV50 |
1 | ||
| 45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT | ||||
| 45254-28040 |
ASV50 |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-06260C0 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-06280C0 |
ASV50 BLACK,TRIM1#,2# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-08010 |
ASV50 |
2 | ||
| 8965A - PROTECTOR, POWER STEERING COMPUTER | ||||
| 8965A-06011 |
ASV50 |
1 | ||
| F1901 - WIRE SUB-ASSY, COMPUTER | ||||
| F1901-06020 |
ASV50 |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90080-11555 | ||||
| 90080-11677 | ||||
| 90080-16106 | ||||
| 90080-18071 | ||||
| 90178-A0024 | ||||
| 90460-81007 | ||||
| Linked diagrams | ||||
| 8401 | ||||
