ASV50L-CETSKV (2015)

Toyota Camry

Production Apr 2015 - Jun 2017
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1504- )

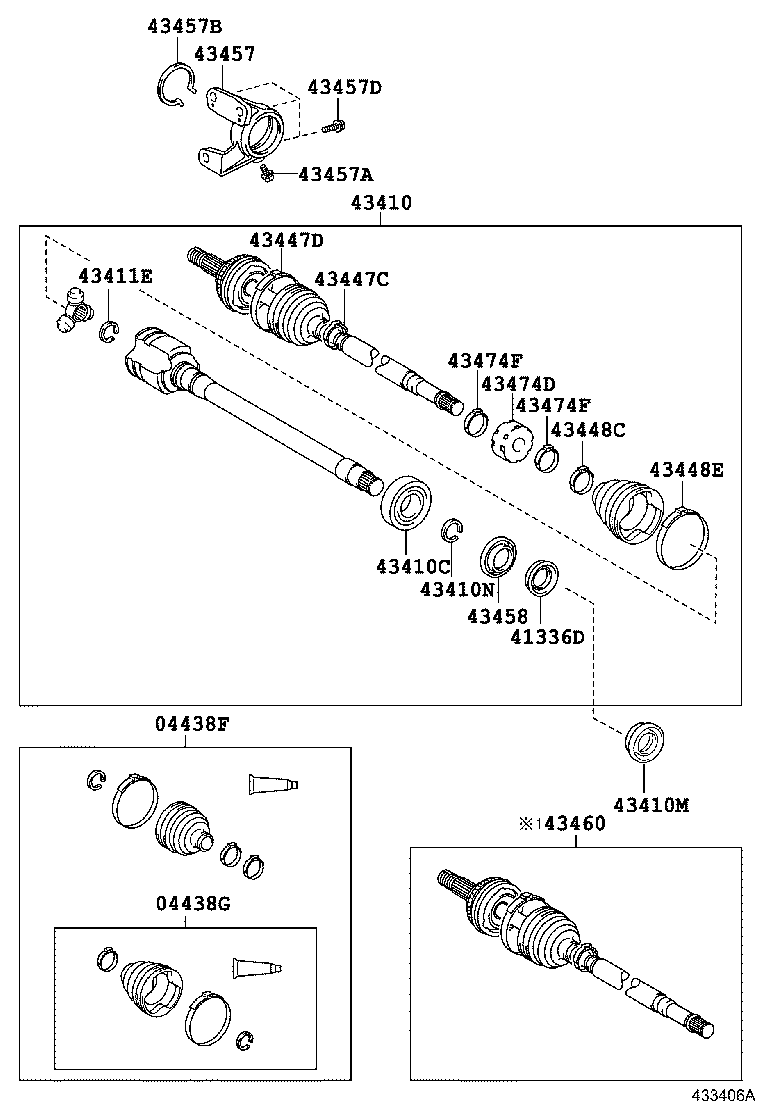

Click highlighted areas on diagram

RH

diagram 04438F 04438G 41336D 43410 43410C 43410M 43410N 43411E 43447C 43447D 43448C 43448E 43457 43457A 43457B 43457D 43458 43460 43474D 43474F 43474F
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-08220

ASV50

 1
04427-0R090

ASV50

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-08090

ASV50

 1
04437-0R020

ASV50

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-07020

ASV50

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-06B61

ASV50

 1
43410-06761

ASV50

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-A0004

ASV50

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-40038

ASV50

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43425-07010

ASV50

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-0R010

ASV50

 1
43425-0R030

ASV50

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-0R040

ASV50

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-0R030

ASV50

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-0R060

ASV50

 1
42345-0R080

ASV50

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-06A00

ASV50

 1
42345-0R050

ASV50

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-0T010

ASV50

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461

ASV50

*10-1.25PX19.8-8.3

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-78002

ASV50

 1
43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90080-10087

ASV50

 3
43458 - COVER, FRONT DRIVE SHAFT DUST
43458-07010

ASV50

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-06691

ASV50

 1
43470-06690

ASV50

 1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-06270

ASV50

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-07090

ASV50

 2
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-07090

ASV50

 2

(1504- )

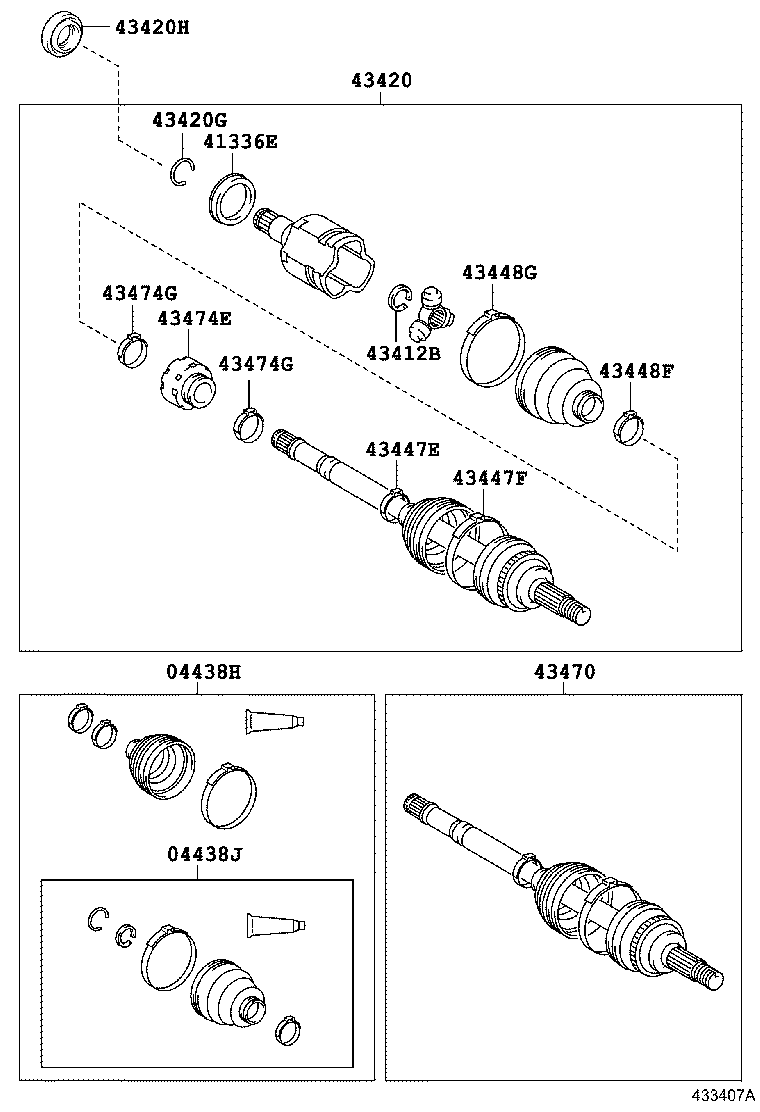

Click highlighted areas on diagram

LH

diagram 04438H 04438J 41336E 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43470 43474E 43474G 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04428-06610

ASV50

 1
04427-08230

ASV50

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-0R010

ASV50

 1
04437-08100

ASV50

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-07040

ASV50

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-0R030

ASV50

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-06842

ASV50

 1
43420-06841

ASV50

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
43425-07040

ASV50

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-50045

ASV50

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-0R040

ASV50

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-0R030

ASV50

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-0R080

ASV50

 1
42345-0R060

ASV50

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-0R050

ASV50

 1
42345-06A10

ASV50

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-06700

ASV50

 1
43470-06701

ASV50

 1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-06400

ASV50

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-07090

ASV50

 2
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-07090

ASV50

 2
