ASV50L-CETSKV (2015)

Toyota Camry

Production Apr 2015 - Jun 2017
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1504- )

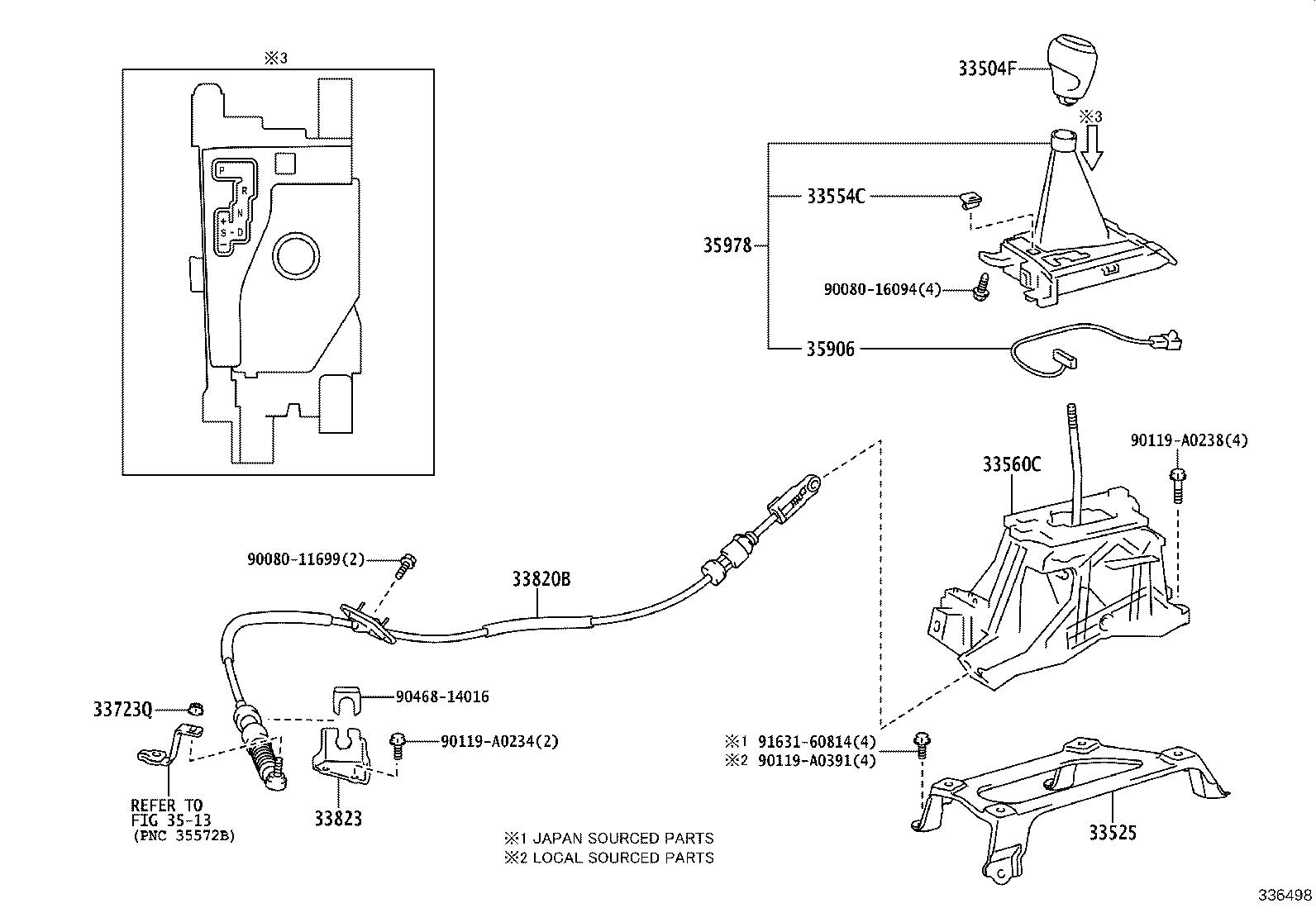

Click highlighted areas on diagram

diagram 33504F 33525 33554C 33560C 33723Q 33820B 33823 3513 35906 35978 9008011699 9008016094 90119A0234 90119A0238 90119A0391 9046814016 9163160814
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-06280

ASV50

 1
33525 - SUPPORT, SHIFT LEVER
58123-06010

ASV50

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-06070

ASV50

 1
33560C - LEVER ASSY, SHIFT, LOWER
33560-06320

ASV50

 1
33560-06321

ASV50

 1
33723Q - NUT (FOR CONNECTING ROD SWIVEL)
90080-17229

ASV50

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-06490

ASV50

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-06010

ASV50

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-06230

ASV50

 1
35978 - INDICATOR, SHIFT POSITION
35978-06140D0

ASV50

RED,TRIM2#

 1
35978-06140B0

ASV50

RICE,TRIM1#

 1
Common parts
90080-11699
90080-16094
90119-A0234
90119-A0238
90119-A0391
90468-14016
91631-60814
Linked diagrams
3513
