ASV50L-CETSKV (2015)
Toyota Camry
Production
Apr 2015
-
Jun 2017
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1504- )

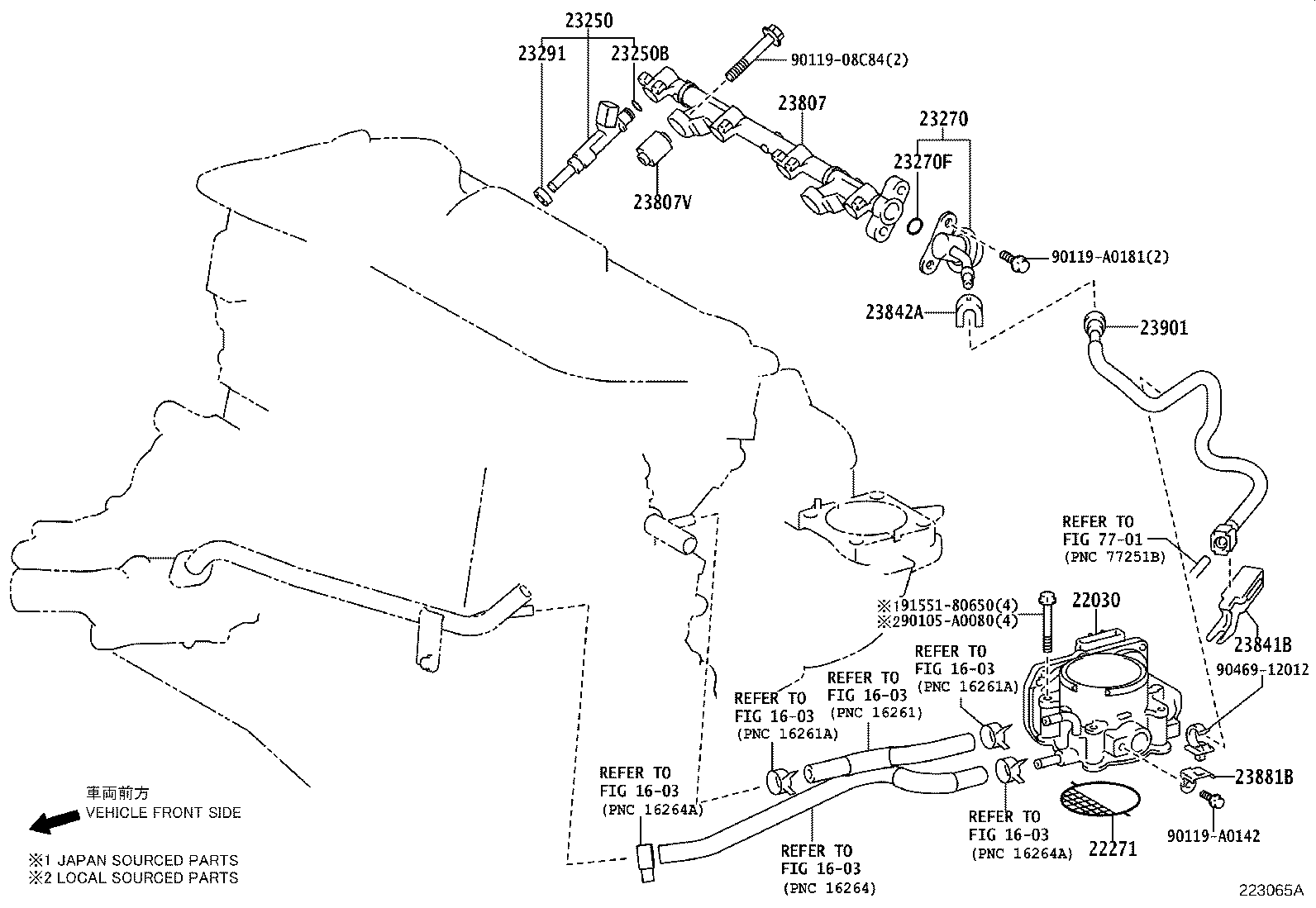

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-0V010 |
2ARFE..ASV50 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-0V010 |
2ARFE..ASV50 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-09175 |
2ARFE..ASV50 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07037 |
2ARFE..ASV50 (J) |
4 | ||
| 90301-A0036 |
2ARFE..ASV50 (L) |
4 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-36031 |
2ARFE..ASV50 |
1 | ||
| 23270F - RING, O(FOR PULSATION DAMPER) | ||||
| 90301-07037 |
2ARFE..ASV50 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-28020 |
2ARFE..ASV50 (J) |
4 | ||
| 23291-0V020 |
2ARFE..ASV50 (L) |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-36040 |
2ARFE..ASV50 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 23891-36010 |
2ARFE..ASV50 |
2 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-0P070 |
2ARFE..ASV50 |
1 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-0T030 |
2ARFE..ASV50 |
1 | ||
| 23881B - BRACKET, FUEL HOSE | ||||
| 23881-0V010 |
2ARFE..ASV50 |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-0V060 |
2ARFE..ASV50 |
1 | ||
| Common parts | ||||
| 90105-A0080 | ||||
| 90119-08C84 | ||||
| 90119-A0142 | ||||
| 90119-A0181 | ||||
| 90469-12012 | ||||
| 91551-80650 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 7701 | ||||
