ASV50L-CETSKV (2015)
Toyota Camry
Production
Apr 2015
-
Jun 2017
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1504- )

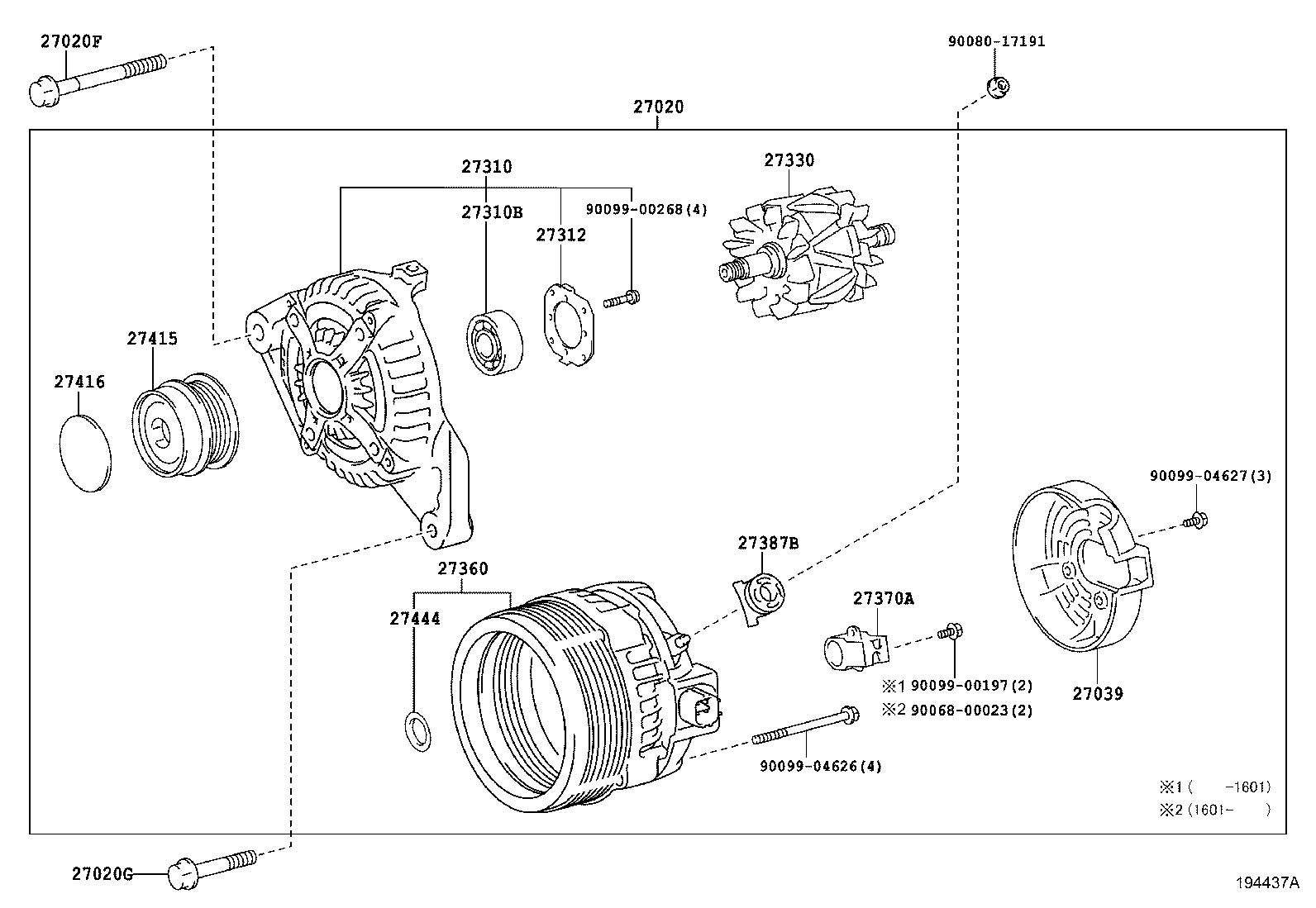

Click highlighted areas on diagram
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0V170 |
2ARFE..ASV50 12V 100A |
1 | ||
| 27020F - BOLT, NO.1(FOR ALTERNATOR) | ||||
| 90105-A0230 |
2ARFE..ASV50 |
1 | ||
| 27020G - BOLT, NO.2(FOR ALTERNATOR) | ||||
| 90105-A0166 |
2ARFE..ASV50 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-47330 |
2ARFE..ASV50 |
1 | ||
| 27039-0C170 |
2ARFE..ASV50 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-36160 |
2ARFE..ASV50 |
1 | ||
| 27310-0V160 |
2ARFE..ASV50 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10033 |
2ARFE..ASV50 |
1 | ||
| 90099-10223 |
2ARFE..ASV50 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
2ARFE..ASV50 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0C170 |
2ARFE..ASV50 |
1 | ||
| 27330-47330 |
2ARFE..ASV50 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-36161 |
2ARFE..ASV50 |
1 | ||
| 27360-0V200 |
2ARFE..ASV50 |
1 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0V160 |
2ARFE..ASV50 |
1 | ||
| 27370-31220 |
2ARFE..ASV50 |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-20130 |
2ARFE..ASV50 |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0W021 |
2ARFE..ASV50 |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W050 |
2ARFE..ASV50 |
1 | ||
| 27444 - PACKING, ALTERNATOR BEARING COVER | ||||
| 27444-21190 |
2ARFE..ASV50 |
1 | ||
| 27444-0C170 |
2ARFE..ASV50 |
1 | ||
| Common parts | ||||
| 90068-00023 | ||||
| 90080-17191 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04626 | ||||
| 90099-04627 | ||||
