ASV50L-CETSKV (2015)

Toyota Camry

Production Apr 2015 - Jun 2017
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1504- )

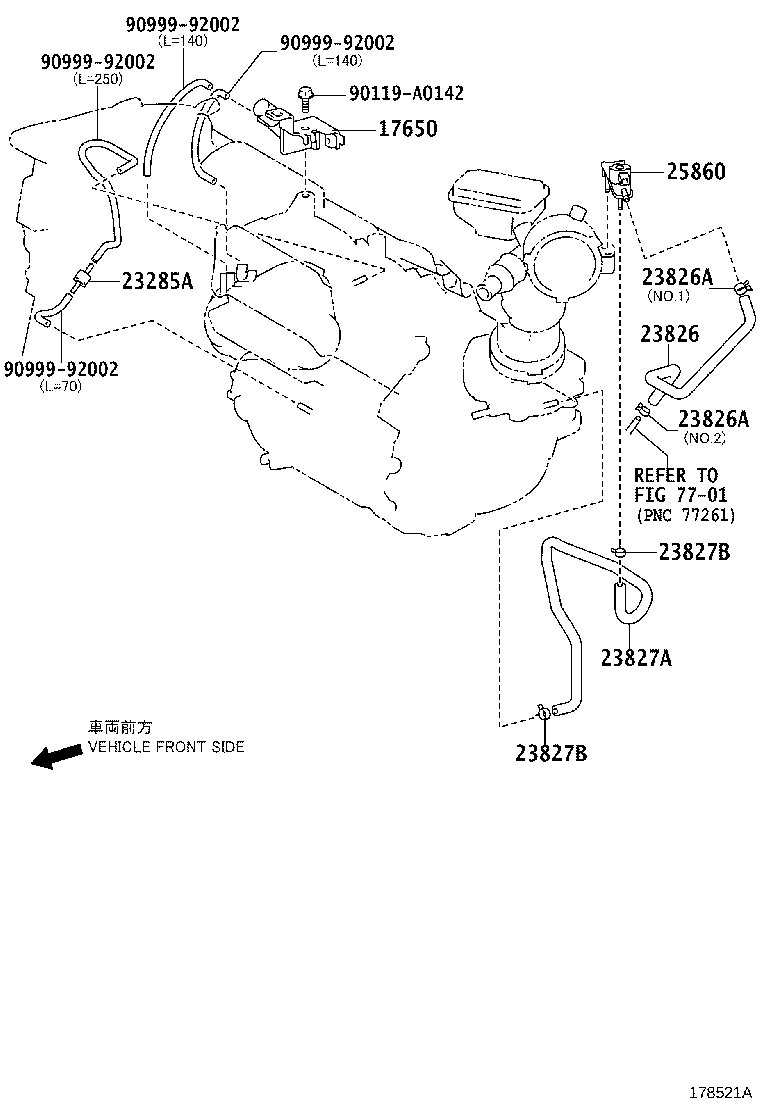

Click highlighted areas on diagram

diagram 17650 23285A 23826 23826A 23826A 23827A 23827B 23827B 25860 7701 90119A0142 9099992002 9099992002 9099992002 9099992002
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
25860-0V050

2ARFE..ASV50

 1
23285A - VALVE, CHECK, NO.1
90917-10065

2ARFE..ASV50

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0V100

2ARFE..ASV50

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90466-13005

2ARFE..ASV50

NO.2

 1
90466-11003

2ARFE..ASV50

NO.1

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90466-13005

2ARFE..ASV50

NO.2

 1
90466-11003

2ARFE..ASV50

NO.1

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-0V050

2ARFE..ASV50

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
90466-13005

2ARFE..ASV50

 2
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
90466-13005

2ARFE..ASV50

 2
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-0V040

2ARFE..ASV50

 1
Common parts
90119-A0142
90999-92002
Linked diagrams
7701
