ASV50L-CETSKV (2015)

Toyota Camry

Production Apr 2015 - Jun 2017
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1504- )

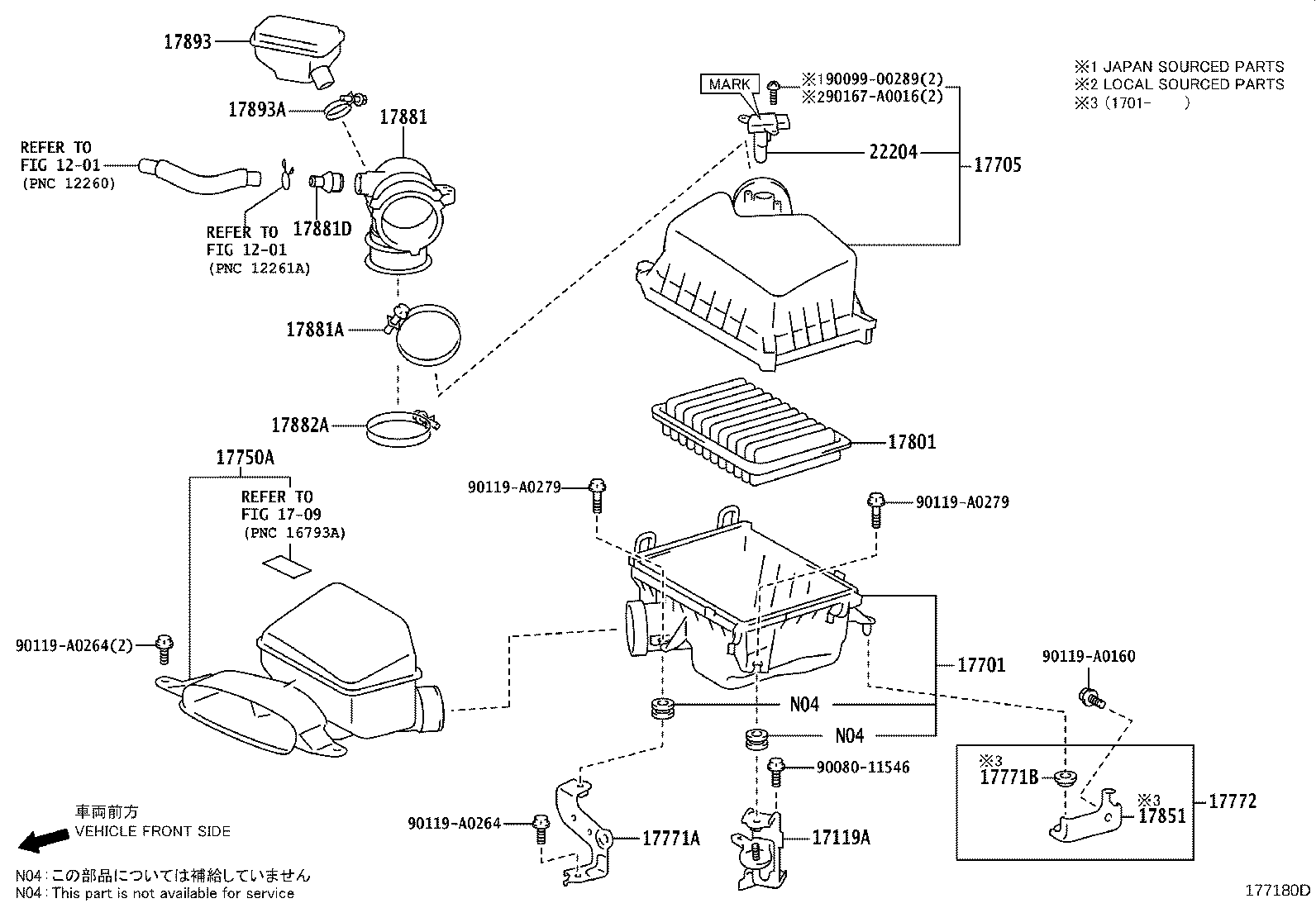

Click highlighted areas on diagram

diagram 1201 1201 1709 17119A 17701 17705 17750A 17771A 17771B 17772 17801 17851 17881 17881A 17881D 17882A 17893 17893A 22204 9008011546 9009900289 90119A0160 90119A0264 90119A0264 90119A0279 90119A0279 90167A0016
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-0V020

2ARFE..ASV50

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0V020

2ARFE..ASV50

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0V020

2ARFE..ASV50

 1
17750A - INLET ASSY, AIR CLEANER
17750-0V031

2ARFE..ASV50

 1
17750-0V030

2ARFE..ASV50

 1
17771A - BRACKET, AIR CLEANER
17771-36030

2ARFE..ASV50

(J)

 1
17771-0V010

2ARFE..ASV50

 1
17771-0V010

2ARFE..ASV50

(L)

 1
17771B - GROMMET(FOR AIR CLEANER BRACKET)
90480-18006

2ARFE..ASV50

 1
17772 - BRACKET, INTAKE AIR CONNECTOR, NO.2
17772-0V010

2ARFE..ASV50

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-28030

2ARFE..ASV50

(J)

 1
17801-0H050

2ARFE..ASV50

(L)

 1
17851 - BRACKET, AIR CLEANER SUPPORT
17851-36020

2ARFE..ASV50

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-0V070

2ARFE..ASV50

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10880

2ARFE..ASV50

 1
17881D - TUBE, UNION(FOG AIR CLEANER HOSE)
17878-0V010

2ARFE..ASV50

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10850

2ARFE..ASV50

 1
17893 - RESONATOR, INTAKE AIR
17893-0V060

2ARFE..ASV50

 1
17893A - CLAMP, HOSE
96111-10430

2ARFE..ASV50

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-28010

2ARFE..ASV50

MARK 22204-28010

 1
22204-0V010

2ARFE..ASV50

MARK 22204-0V010

 1
22204-0V020

2ARFE..ASV50

MARK 22204-0V020

 1
Common parts
90080-11546
90099-00289
90119-A0160
90119-A0264
90119-A0279
90167-A0016
