ASV50L-CETSKV (2015)

Toyota Camry

Production Apr 2015 - Jun 2017
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1504- )

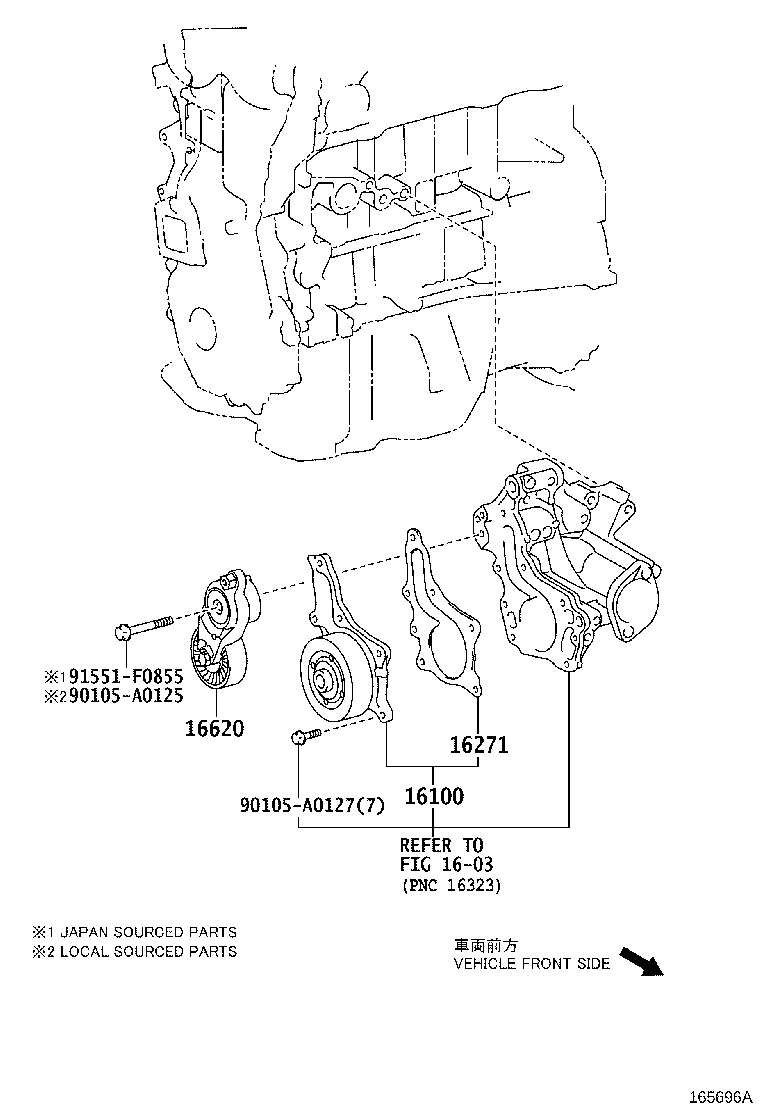

Click highlighted areas on diagram

diagram 1603 16100 16271 16620 90105A0125 90105A0127 91551F0855
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-09515

2ARFE..ASV50

 1
16271 - GASKET, WATER PUMP
16271-36010

2ARFE..ASV50

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0V022

2ARFE..ASV50

(L)

 1
16620-36011

2ARFE..ASV50

(J)

 1
Common parts
90105-A0125
90105-A0127
91551-F0855
Linked diagrams
1603
