ASV50L-CETSKV (2015)

Toyota Camry

Production Apr 2015 - Jun 2017
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1504- )

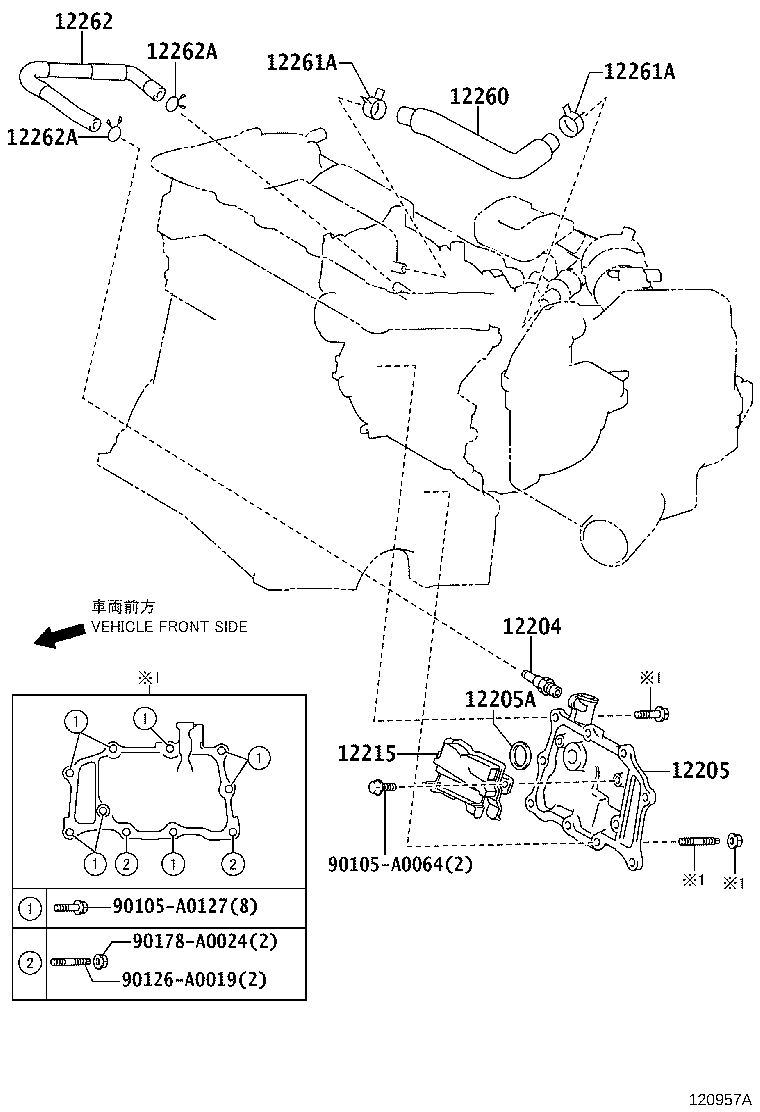

Click highlighted areas on diagram

diagram 12204 12205 12205A 12215 12260 12261A 12261A 12262 12262A 12262A 90105A0064 90105A0127 90126A0019 90178A0024
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-36020

2ARFE..ASV50

 1
12204-36030

2ARFE..ASV50

 1
12205 - CASE SUB-ASSY, VENTILATION
12205-0V010

2ARFE..ASV50

 1
12205A - RING, O(FOR VENTILATION CASE)
12273-36010

2ARFE..ASV50

 1
12215 - SEPARATOR, CASE
12215-0V010

2ARFE..ASV50

 1
12260 - HOSE ASSY, VENTILATION
12260-0V050

2ARFE..ASV50

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-21004

2ARFE..ASV50

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-21004

2ARFE..ASV50

 2
12262 - HOSE, VENTILATION, NO.2
12262-36040

2ARFE..ASV50

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16035

2ARFE..ASV50

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16035

2ARFE..ASV50

 2
Common parts
90105-A0064
90105-A0127
90126-A0019
90178-A0024
