ASV50L-CETSKV (2015)
Toyota Camry
Production
Apr 2015
-
Jun 2017
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1504- )

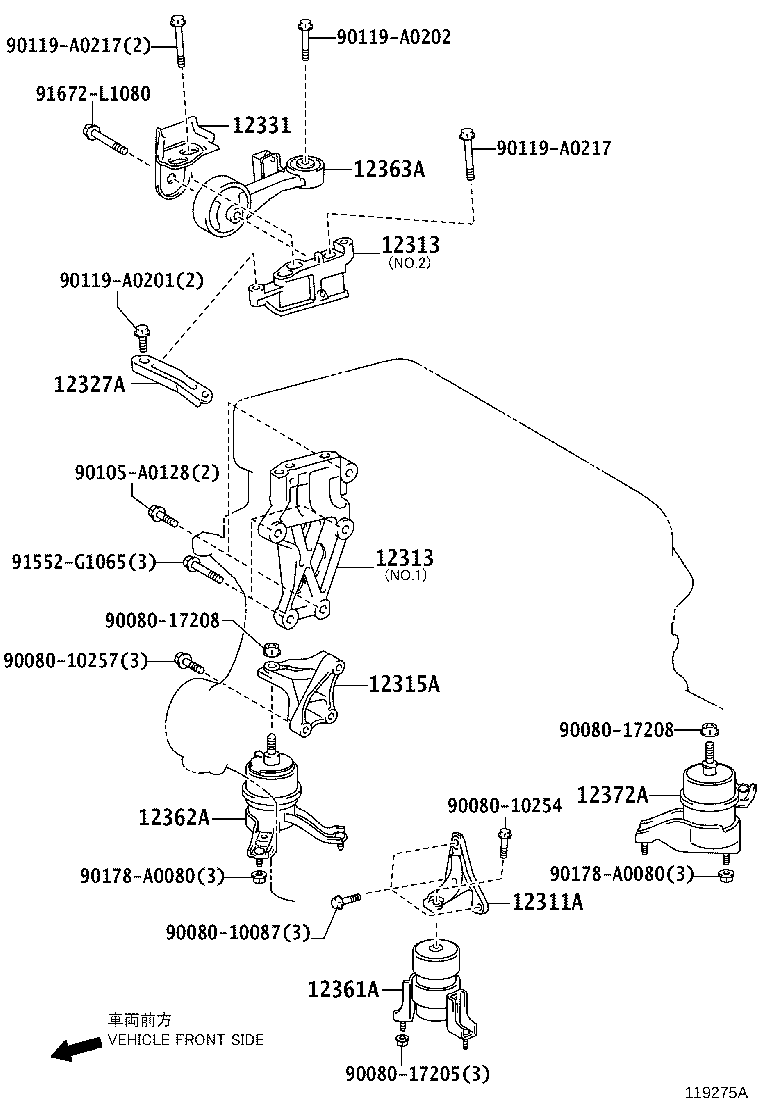

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-0V170 |
2ARFE..ASV50 |
1 | ||
| 12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) | ||||
| 12313-0V110 |
2ARFE..ASV50 NO.2 |
1 | ||
| 12313-0V040 |
2ARFE..ASV50 (L),NO.1 |
1 | ||
| 12313-36010 |
2ARFE..ASV50 (J),NO.1 |
1 | ||
| 12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) | ||||
| 12313-0V110 |
2ARFE..ASV50 NO.2 |
1 | ||
| 12313-0V040 |
2ARFE..ASV50 (L),NO.1 |
1 | ||
| 12313-36010 |
2ARFE..ASV50 (J),NO.1 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12319-0V020 |
2ARFE..ASV50 |
1 | ||
| 12327A - STAY, ENGINE MOUNTING, NO.2 RH | ||||
| 12327-0V050 |
2ARFE..ASV50 |
1 | ||
| 12331 - STAY, ENGINE MOUNTING, NO.3 RH | ||||
| 12331-0V030 |
2ARFE..ASV50 |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-0V060 |
2ARFE..ASV50 |
1 | ||
| 12362A - INSULATOR, ENGINE MOUNTING, FRONT LH | ||||
| 12362-0V060 |
2ARFE..ASV50 |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-0V070 |
2ARFE..ASV50 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0V020 |
2ARFE..ASV50 |
1 | ||
| Common parts | ||||
| 90080-10087 | ||||
| 90080-10254 | ||||
| 90080-10257 | ||||
| 90080-17205 | ||||
| 90080-17208 | ||||
| 90105-A0128 | ||||
| 90119-A0201 | ||||
| 90119-A0202 | ||||
| 90119-A0217 | ||||
| 90178-A0080 | ||||
| 91552-G1065 | ||||
| 91672-L1080 | ||||
