ASV50L-CETSKV (2015)
Toyota Camry
Production
Apr 2015
-
Jun 2017
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1504- )

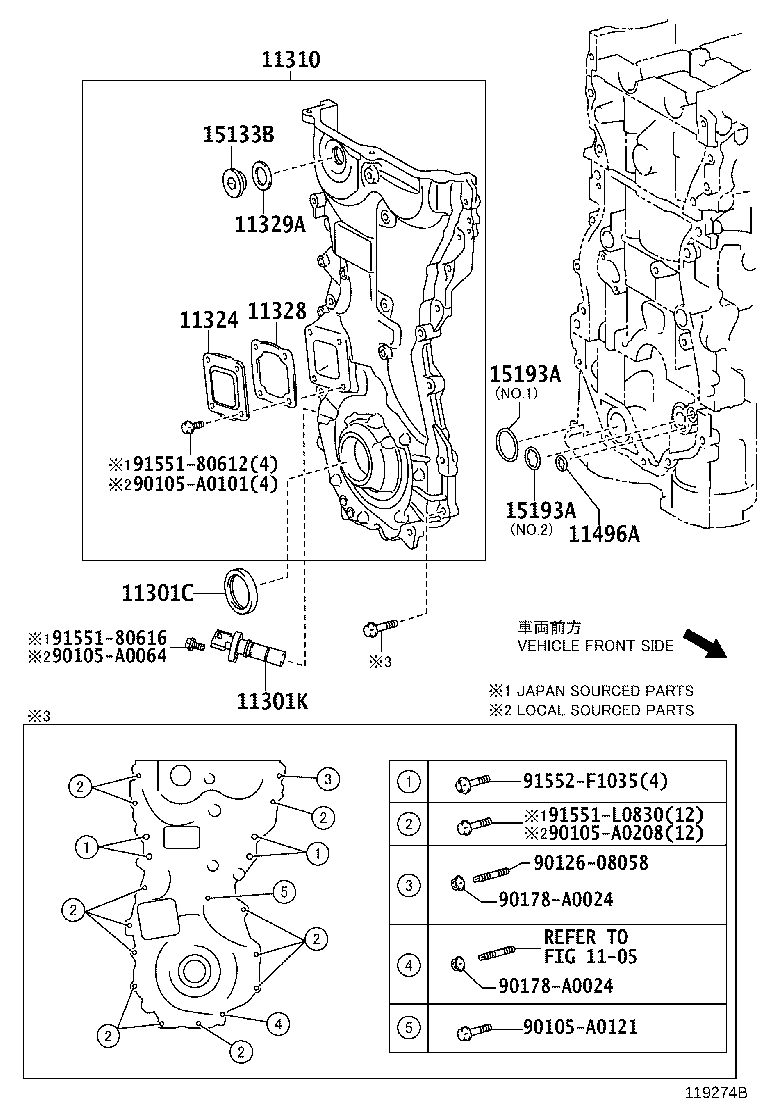

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) | ||||
| 90311-A0015 |
2ARFE..ASV50 |
1 | ||
| 11301K - SENSOR, CRANK POSITION | ||||
| 90919-05070 |
2ARFE..ASV50 (J) |
1 | ||
| 90919-A5004 |
2ARFE..ASV50 (L) |
1 | ||
| 11310 - COVER ASSY, TIMING CHAIN | ||||
| 11310-0V020 |
2ARFE..ASV50 (L) |
1 | ||
| 11310-36020 |
2ARFE..ASV50 (J) |
1 | ||
| 11324 - PLATE, TIMING CHAIN COVER | ||||
| 11324-36010 |
2ARFE..ASV50 (J) |
1 | ||
| 11324-0V010 |
2ARFE..ASV50 (L) |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-36020 |
2ARFE..ASV50 (J) |
1 | ||
| 11328-0V010 |
2ARFE..ASV50 (L) |
1 | ||
| 11329A - GASKET, TIMING BELT OR CHAIN COVER, NO.2 | ||||
| 11329-36020 |
2ARFE..ASV50 |
1 | ||
| 11496A - GASKET, OIL HOLE COVER | ||||
| 11496-36010 |
2ARFE..ASV50 |
1 | ||
| 15133B - PLUG, OIL PUMP RELIEF VALVE | ||||
| 15133-36020 |
2ARFE..ASV50 |
1 | ||
| 15193A - GASKET, OIL PUMP | ||||
| 15197-36010 |
2ARFE..ASV50 NO.2 |
1 | ||
| 15193-36010 |
2ARFE..ASV50 NO.1 |
1 | ||
| 15193A - GASKET, OIL PUMP | ||||
| 15197-36010 |
2ARFE..ASV50 NO.2 |
1 | ||
| 15193-36010 |
2ARFE..ASV50 NO.1 |
1 | ||
| Common parts | ||||
| 90105-A0064 | ||||
| 90105-A0101 | ||||
| 90105-A0121 | ||||
| 90105-A0208 | ||||
| 90126-08058 | ||||
| 90178-A0024 | ||||
| 91551-80612 | ||||
| 91551-80616 | ||||
| 91551-L0830 | ||||
| 91552-F1035 | ||||
| Linked diagrams | ||||
| 1105 | ||||
