ACV30R-JEPNKT (2002)

Toyota Camry

Production Mar 2002 - Aug 2006
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0205-0405)MCV30..IDN ; (0205- )MA ; (0405-)TH..4FC

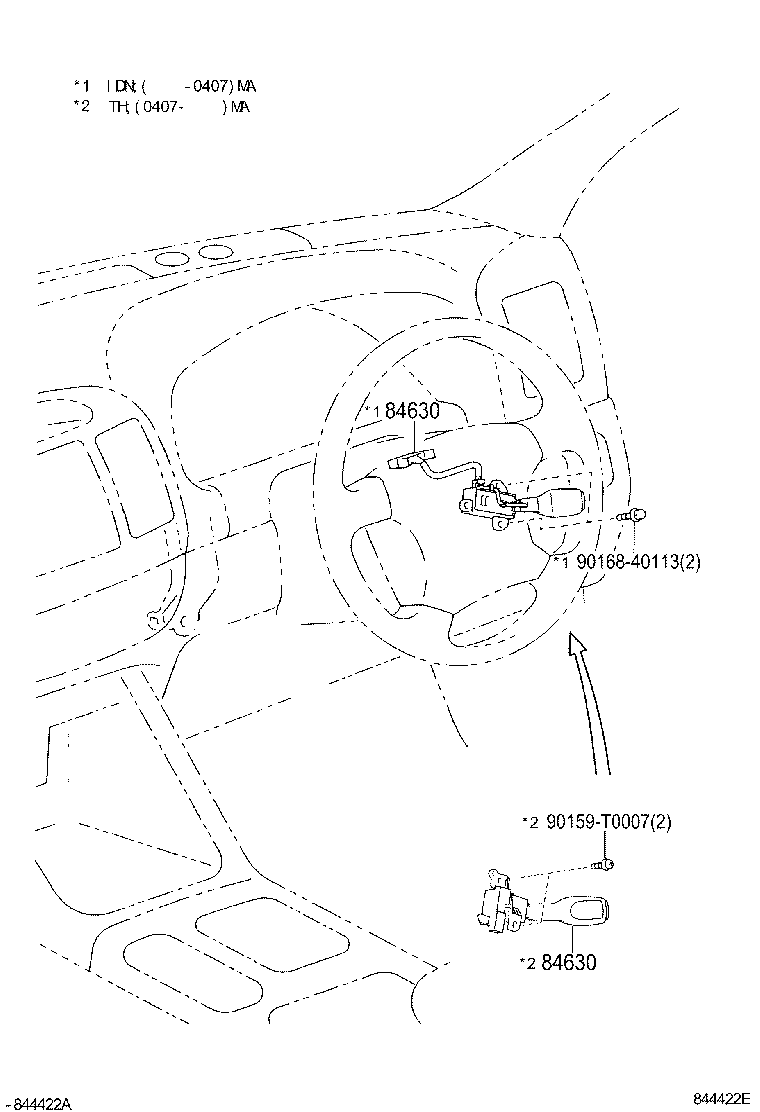

Click highlighted areas on diagram

diagram 84630 84630 90159T0007 9016840113
Part # Description Qty Price
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84632-34011

ACV3#,MCV30..RHD..4FC

 1
84632-34010

ACV3#,MCV30..RHD..4FC

 1
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84632-34011

ACV3#,MCV30..RHD..4FC

 1
84632-34010

ACV3#,MCV30..RHD..4FC

 1
Common parts
90159-T0007
90168-40113
