ACV30R-JEPNKT (2002)
Toyota Camry

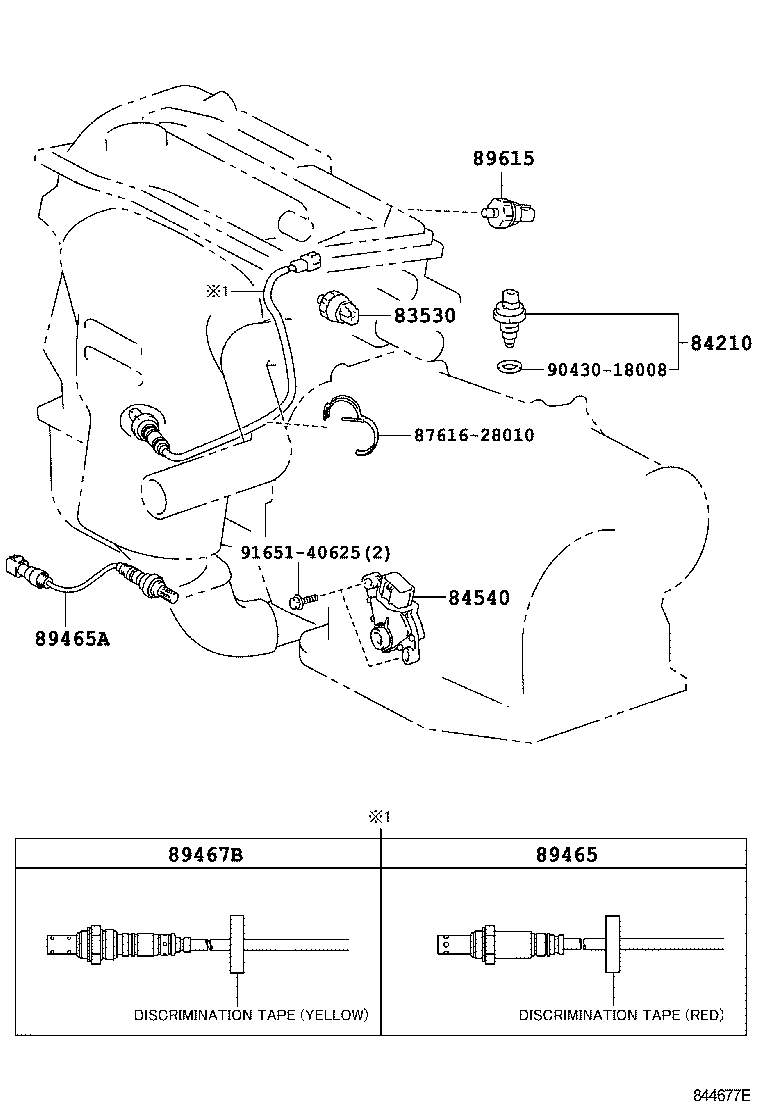

ILLUST NO. 1 OF 7(0203- )ACV3#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC DENSO |
1 | ||
| 83530-60020 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC YAZAKI |
1 | ||
| 83530-60020 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN YAZAKI |
1 | ||
| 83530-28020 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-32110 |
ACV3#,MCV30..(IDN,TH)..4FC |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-33240 |
ACV30..24G..4FC INDONESIA SPEC |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-33220 |
ACV3#..TH |
1 | ||
| 89465-33220 |
ACV3#..TH..4FC |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-33040 |
ACV3#..TH..4FC |
1 | ||
| 89467-33040 |
ACV3#..TH |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-32030 |
ACV30..4FC;ACV30..(IDN,VN)..5F W/O(PAINTED=ORANGE) |
1 | ||
| 89615-44010 |
ACV30..4FC;ACV30..(IDN,VN)..5F W(PAINTED=ORANGE) |
1 | ||
| Common parts | ||||
| 87616-28010 | ||||
| 90430-18008 | ||||
| 91651-40625 | ||||
ILLUST NO. 2 OF 7(0203- )
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||

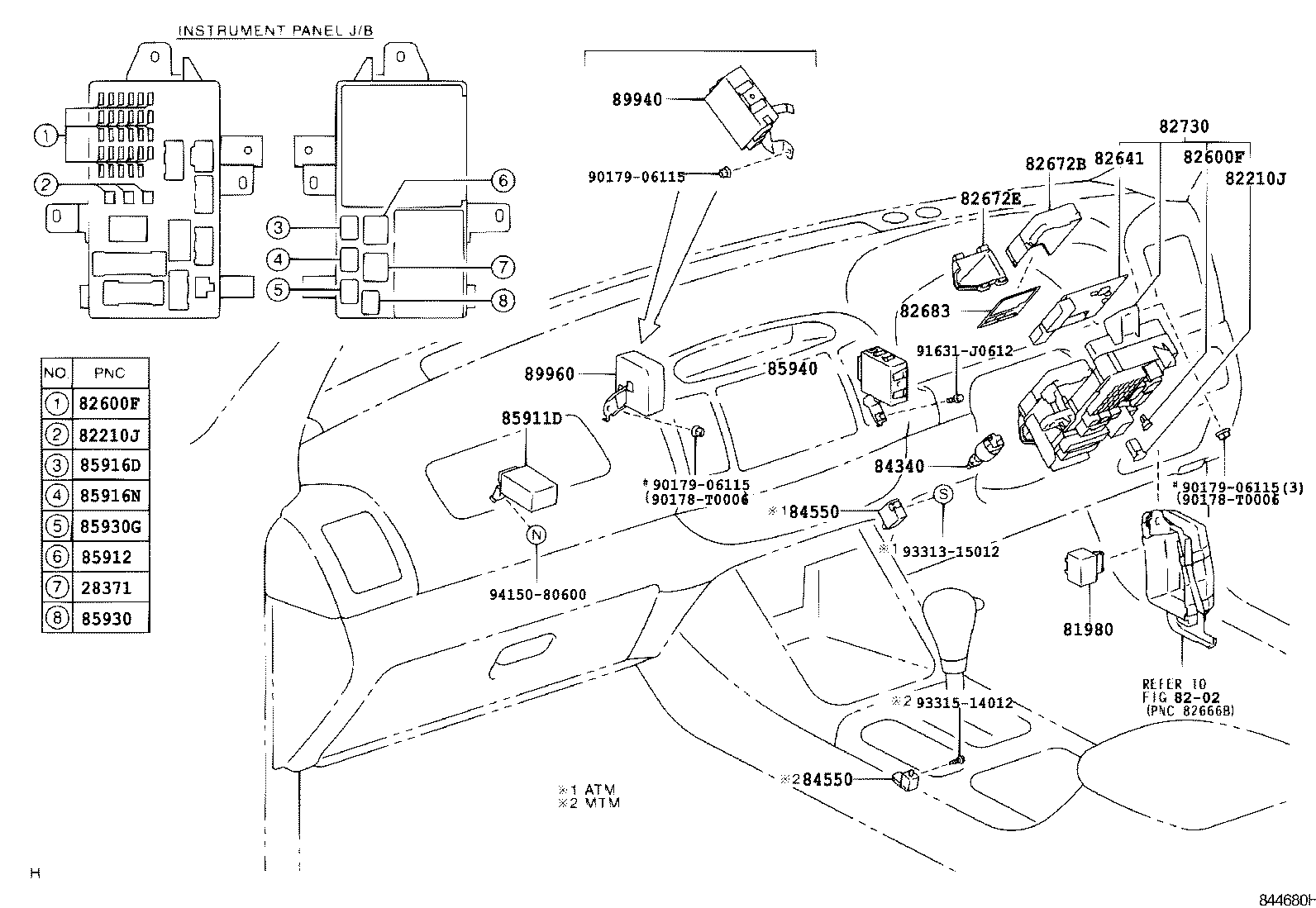

ILLUST NO. 4 OF 7(0203- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02025 |
1MZFE..MCV30..VN..5FC;1AZFE..ACV31..MA,TAIW,TH;1MZFE..MCV30..PHL,TAIW,TH;2AZFE..ACV30..MA,PHL,TH,VN |
1 | ||
| 90987-02025 |
1AZFE,2AZFE,1MZFE..ACV3#,MCV30..IDN,TH |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
ACV31..TAIW,TH;MCV30..VN..5FC;ACV30..PHL,TH,VN;MCV30..PHL,TAIW,TH |
1 | ||
| 81980-50030 |
ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV3#..(IDN,PHL,TAIW,TH)..4FC |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08246 |
ACV3#..4FC;ACV30..(IDN,VN)..5F 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08202 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08282 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08280 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08281 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08246 |
ACV3#..4FC;ACV30..(IDN,VN)..5F 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08202 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08282 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08280 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08281 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 40A,TERM.:FEMALE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82021 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 10A,MINI FUSE,RED,SUMITOMO |
1 | ||
| 90080-82020 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82022 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 15A,MINI FUSE,BLUE,SUMITOMO |
1 | ||
| 90982-09010 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 10A,MINI FUSE,RED,TAIHEIYO |
1 | ||
| 90080-82031 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 5A,MINI FUSE,TAN,SUMITOMO |
1 | ||
| 90080-82024 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 30A,MINI FUSE,GREEN |
1 | ||
| 90982-08280 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 30A,TERM.:FEMALE,PNK |
1 | ||
| 90080-82023 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82033 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 25A,MINI FUSE |
1 | ||
| 90982-09007 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 5A,MINI FUSE,TAN,TAIHEIYO |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82021 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 10A,MINI FUSE,RED,SUMITOMO |
1 | ||
| 90080-82020 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82022 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 15A,MINI FUSE,BLUE,SUMITOMO |
1 | ||
| 90982-09010 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 10A,MINI FUSE,RED,TAIHEIYO |
1 | ||
| 90080-82031 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 5A,MINI FUSE,TAN,SUMITOMO |
1 | ||
| 90080-82024 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 30A,MINI FUSE,GREEN |
1 | ||
| 90982-08280 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 30A,TERM.:FEMALE,PNK |
1 | ||
| 90080-82023 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82033 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 25A,MINI FUSE |
1 | ||
| 90982-09007 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC 5A,MINI FUSE,TAN,TAIHEIYO |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-06040 |
ACV3#,MCV30..(20E,24G,30V)..TH |
1 | ||
| 82641-06040 |
ACV3#,MCV30..RHD |
1 | ||
| 82641-06041 |
MCV30..IDN;ACV30..IDN..5F;ACV3#..RHD..4FC |
1 | ||
| 82641-06041 |
ACV3#,MCV30..RHD..(20E,24G,30V) |
1 | ||
| 82641-06060 |
ACV30..TH..4FC W(FOOT LAMP) |
1 | ||
| 82641-06080 |
ACV3#,MCV30..RHD..(20E,24G,30V) |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-33200 |
ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV3#..(IDN,PHL,TAIW,TH)..4FC |
2 | ||
| 82672E - COVER, JUNCTION BLOCK | ||||
| 82672-33210 |
ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV3#..(IDN,PHL,TAIW,TH)..4FC |
2 | ||
| 82672-06110 |
ACV30..TH..4FC;ACV31,MCV30..TAIW (L) |
1 | ||
| 82683 - PLATE, FUSE BLOCK CAUTION | ||||
| 82683-06050 |
MCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC NO.2 |
1 | ||
| 82683-06050 |
ACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC NO.2 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-33160 |
ACV3#..TH |
2 | ||
| 82730-33161 |
ACV3#,MCV30..IDN,TH |
2 | ||
| 82730-33270 |
ACV30..RHD..4FC |
1 | ||
| 82730-33261 |
ACV30..24G..4FC INDONESIA SPEC |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-06030 |
MCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC |
1 | ||
| 84340-06031 |
ACV3#,MCV30..MA,PHL,TH,VN |
1 | ||
| 84340-06030 |
ACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
ACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02025 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 90987-02025 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90080-87008 |
ACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC DENSO |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90080-87008 |
MCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC DENSO |
1 | ||
| 90080-87008 |
ACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC DENSO |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90080-87008 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC |
2 | ||
| 90080-87010 |
ACV3#,MCV30 SIEMENS |
1 | ||
| 90080-87008 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 90080-87008 |
ACV3#,MCV30 DENSO |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90080-87008 |
ACV3#,MCV30 DENSO |
1 | ||
| 90080-87008 |
MCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN |
1 | ||
| 90080-87010 |
ACV3#,MCV30 SIEMENS |
1 | ||
| 90080-87008 |
ACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC |
2 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-33100 |
MCV30..5FC;ACV3#..TH..4FC |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-33110 |
ACV30..24G..4FC |
1 | ||
| Common parts | ||||
| 90178-T0006 | ||||
| 90179-06115 | ||||
| 91631-J0612 | ||||
| 93313-15012 | ||||
| 93315-14012 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||

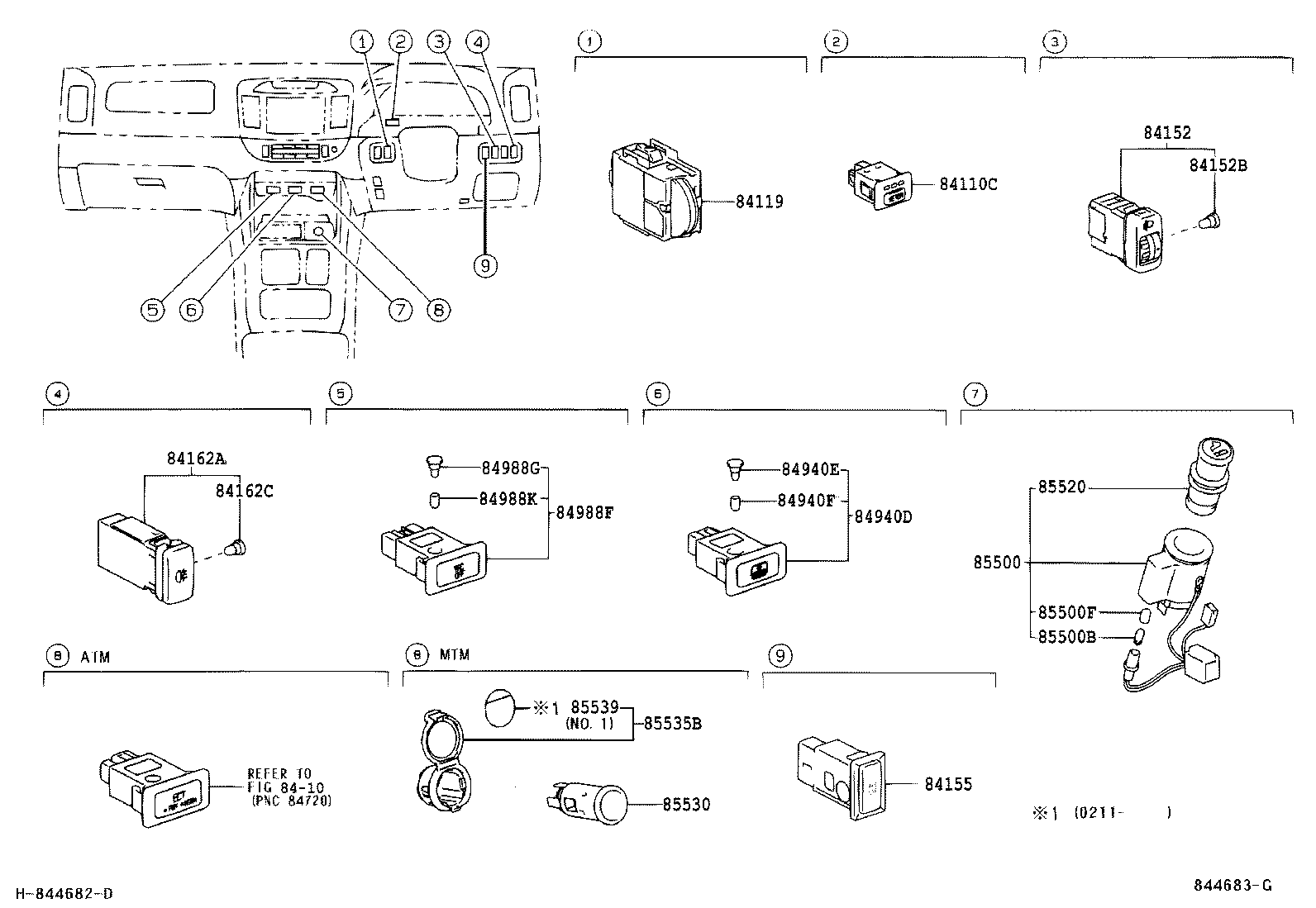

ILLUST NO. 5 OF 7(0203- )RHD
